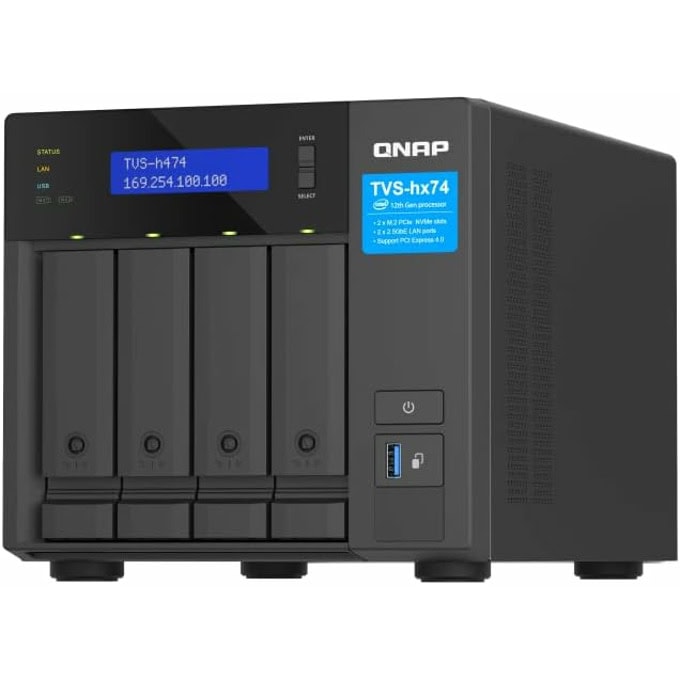

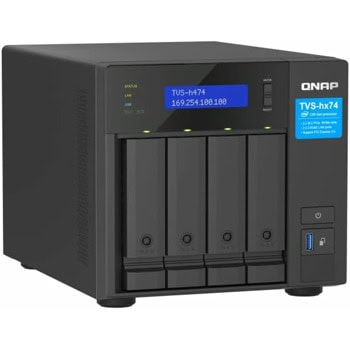

Qnap TVS-h474-PT-8G
| Category | Specification |
|---|---|
| CPU | Intel® Pentium® Gold G7400, 2-core / 4-thread, 3.7 GHz |
| CPU Architecture | 64-bit x86 |
| Integrated Graphics | Intel® UHD Graphics 710 |
| Floating Point Unit (FPU) | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-accelerated Transcoding | Yes |
| System Memory (Installed) | 8 GB DDR4 SODIMM |
| Maximum Memory | 64 GB (2 × 32 GB DDR4 SODIMM) |
| Memory Slots | 2 × DDR4 SODIMM |
| Flash Memory | 5 GB (Dual boot OS protection) |
| Drive Bays | 4 × 3.5″ SATA 6 Gb/s / 3 Gb/s |
| Drive Compatibility | 3.5″ SATA HDDs, 2.5″ SATA SSDs |
| Hot-Swappable Drives | Yes (M.2 SSD not hot-swappable) |
| M.2 Slots | 2 × M.2 2280 PCIe Gen 3 x2 |
| NVMe Compatibility | PCIe Gen 3 and above (check vendor compatibility list) |
| SSD Cache Acceleration | Supported |
| GPU Pass-through | Yes |
| 2.5G Ethernet Ports | 2 × 2.5G / 1G / 100M / 10M |
| 5G Ethernet | Optional via PCIe expansion card |
| 10G Ethernet | Optional via PCIe expansion card |
| Wake on LAN (WOL) | Yes |
| Jumbo Frame Support | Yes |
| PCIe Slots | Slot 1: PCIe Gen 4 x16Slot 2: PCIe Gen 3 x2 |
| PCIe Card Dimensions | 185 × 68.9 × 18.76 mm (7.28 × 2.71 × 0.74 in) |
| USB Ports | 1 × USB 3.2 Gen 1 1 × USB 3.2 Gen 2 Type-C (10 Gbps) 1 × USB 3.2 Gen 2 Type-A (10 Gbps) |
| HDMI Output | 1 × HDMI 1.4b (up to 4096 × 2160 @ 30 Hz) |
| Form Factor | Tower |
| LED Indicators | HDD 1–4, Status, LAN, USB, M.2 |
| LCD Display / Button | Yes |
| Buttons | Power, Reset, USB Copy |
| Dimensions (H × W × D) | 180.2 × 199.3 × 279.6 mm (without foot pad) |
| Weight (Net) | 6.1 kg |
| Weight (Gross) | 7.25 kg |
| Operating Temperature | 0 – 40 °C (32 – 104 °F) |
| Storage Temperature | -20 – 70 °C (-4 – 158 °F) |
| Relative Humidity | 5–95% RH non-condensing (wet bulb 27 °C) |
| Power Supply | 250W, 100–240V |
| Power Consumption (Disk Standby) | 34.906 W |
| Power Consumption (Typical Operating) | 78.574 W (with WD10EFRX drives) |
| Cooling Fans | System: 1 × 120 mm (12VDC)CPU: 1 × 60 mm (12VDC) |
| System Warning Buzzer | Yes |
| Security Slot | Kensington lock slot |
Виж още Мрежови дискове NAS Qnap
Виж всички Мрежови дискове NAS в категорията
Документация
Ръководство на потребителяТехнически характеристики
| Формфактор: | Tower |
|---|---|
| Капацитет: | Неокомплектован GB |
