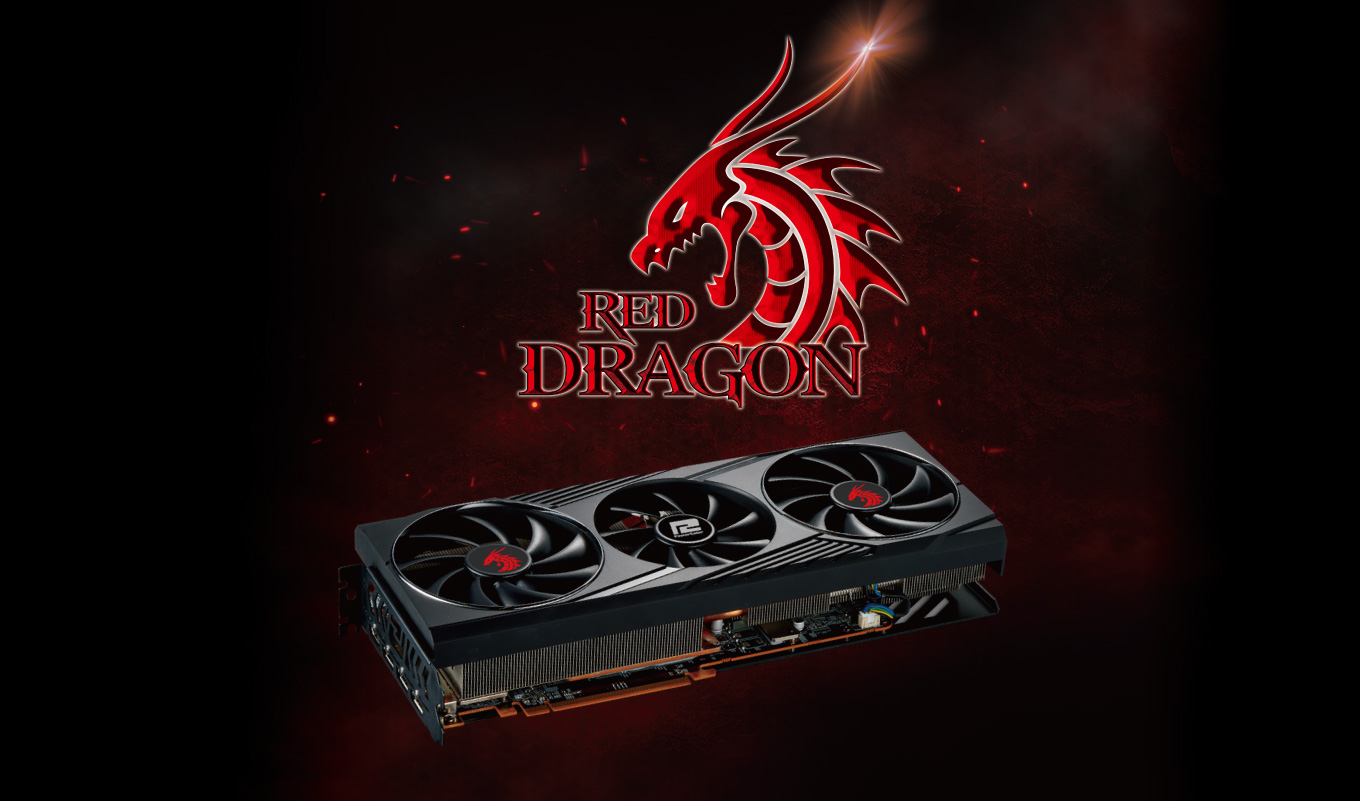

The Power of Red Dragon
PowerColor Red Dragon AMD Radeon™ RX 6800 is armed with a new triple fan design, 310mm cooler with 7X6Φheatpipes, and a large copper base improves heat transfer and dissipation from the GPU and the VRAMs providing highly efficient heat dissipation solution. And it is also equipped with a 8+2 phase VRM with DrMOS, high polymer capacitors, and two 8-pin PCI-E connectors for implementing better performance.

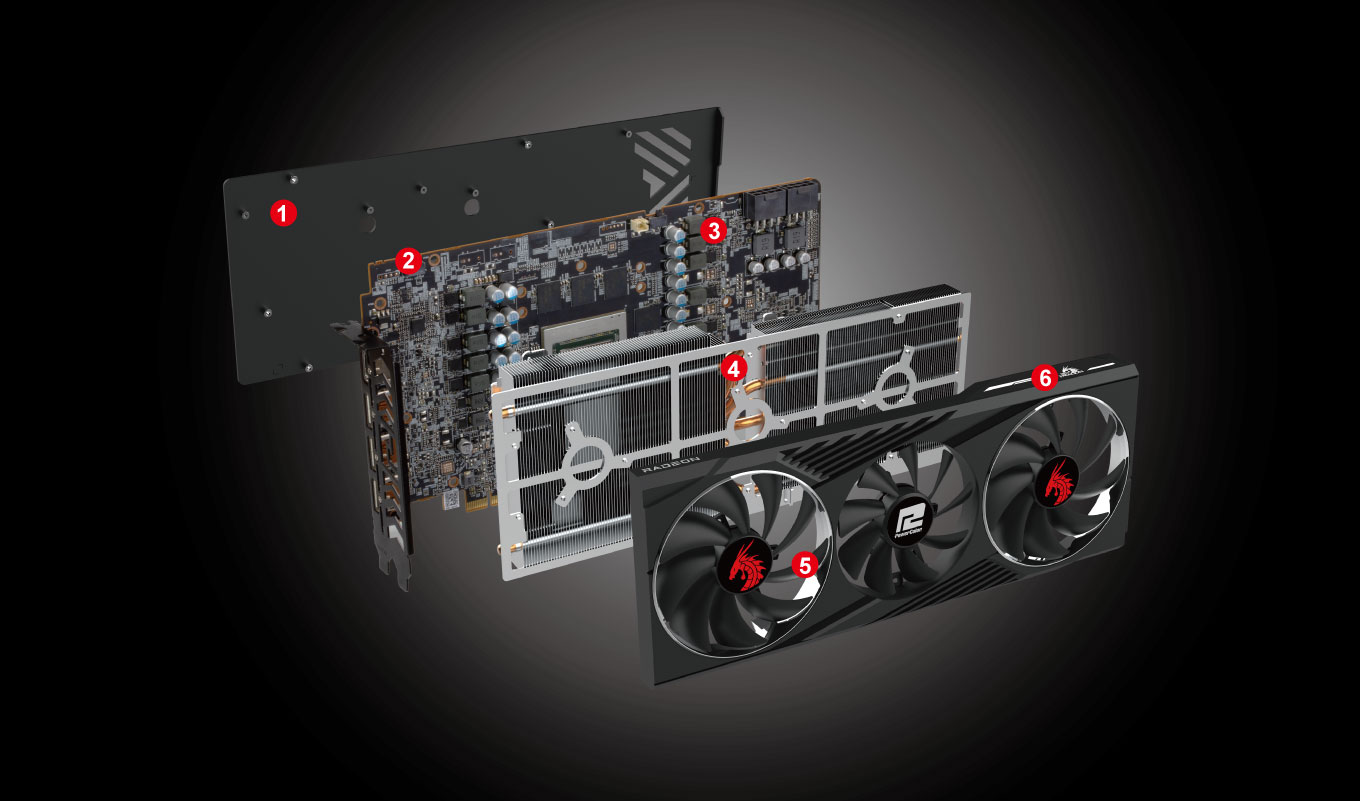

1.Back Plate
- The metal back plate strengthens the card and offers better heat dissipation.
2.Dual BIOS
- Choosing the BIOS fits your need: faster clocks or more balanced overclock with quiet operation.
3.Stronger MOS, Better Protection
- DrMOS provides superior power efficiency and offers better thermal protection. Red Dragon is armed with stronger components: a 8+2 phases VRM guarantees better overclocking and stability.
4.Cooler
- 7X6Φ heatpipes efficiently dissipate the heat and make your card cool.
5.Triple Fan
- The 2X 100mm and 1X 90mm optimized static pressure fan design provides more air flow and longer circulation.
6.Glow Your Red Dragon
- Featuring the Red LED brighten your Red Dragon in the dark.
Specifications:
SPECIFICATION
Graphics Engine | AXRX 6800 16GBD6-3DHR/OC |
Video Memory | 16GB GDDR6 |
Stream Processor | 3840 Units |
Engine Clock(OC) | 1950MHz(Game) / up to 2170MHz(Boost) |
Engine Clock(STD/Silent) | 1905MHz(Game) / up to 2140MHz(Boost) |
Memory Clock | 16.0 Gbps |
Memory Interface | 256-bit |
DirectX® Support | 12 |
Bus Standard | PCIE 4.0 |
Standard Display Connectors | 1 x HDMI 2.1 , 3 x DisplayPort 1.4 |
Product Remark | Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
Feature Support
OpenGL | Support |
CrossFireX™ Technology | support (DirectX® 12/Vulkan™) |
AMD Stream Technology | Support |
AMD Eyefinity Technology | Support |
Maximum Resolution
DisplayPort | 7680×4320 |
HDMI | 7680×4320 |
Power Specs + Board Dimensions
Board Dimensions | 310mm*135mm*54 mm |
Minimum System Power requirement (W) | 650W |
Extension Power Connector | Two 8-pin PCI Express Power connectors |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Видео карти PowerColor
Виж всички Видео карти в категорията
GPU производител: | AMD Radeon |
---|---|
Капацитет: | 16 GB |
Тип памет на видеокарта: | GDDR6 |
Битове (BUS памет): | 256 Bit |
Интерфейс: | DP HDMI |
