| Basic | ||
|---|---|---|
| Product Type | Barebone System | |
| Maximum Memory Supported | 64 GB | |
| Chipset | Intel | |
| Form Factor | Slim PC | |
| Processor Type | Core i7 | |
| Controller Type | Serial ATA/600 | |
| Processor Socket | Socket BGA-1528 | |
| Brand Name | Shuttle | |
| Operating System Supported | Windows 10 x64 | |
| Operating System Supported | Windows 11 x64 | |
| Operating System Supported | Linux | |
| Memory Technology | DDR4 SDRAM | |
| Memory Standard | DDR4-3200/PC4-25600 | |
| Processor Core | Quad-core (4 Core) | |
| Processor Manufacturer | Intel | |
| Graphics Controller Manufacturer | Intel | |
| Graphics Controller Model | UHD Graphics | |
| Number of Total Memory Slots | 2 | |
| Graphics Memory Accessibility | Shared | |
| Number of Processors Supported | 1 | |
| Ethernet Technology | 2.5 Gigabit Ethernet | |
| Ethernet Technology | Gigabit Ethernet | |
| Maximum Power Supply Wattage | 65 W | |
| Product Family | XPC slim DS20U | |
| Total Number of USB Ports | 9 | |
| Energy Star | Yes | |
| Product Color | Black | |
| Chipset | ||
| Chipset Manufacturer | Intel | |
| Controllers | ||
| Controller Type | Serial ATA/600 | |
| Display & Graphics | ||
| Graphics Controller Manufacturer | Intel | |
| Graphics Controller Model | UHD Graphics | |
| Graphics Memory Technology | DDR4 SDRAM | |
| Graphics Memory Accessibility | Shared | |
| General Information | ||
| Product Type | Barebone System | |
| Manufacturer Part Number | DS20U7 V2 | |
| Manufacturer Website Address | http://www.shuttle.com | |
| Manufacturer | Shuttle, Inc | |
| Product Model | DS20U7V2 | |

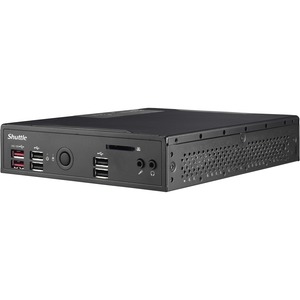

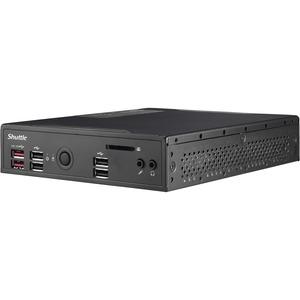

| Product Name | XPC slim DS20U7V2 Barebone System | |
| Product Line | XPC slim | |
| Product Series | DS20U | |
| Brand Name | Shuttle | |
| Marketing Information | FANLESS SLIMPC WITH A COMET-LAKE-U PROCESSOR IN INDUSTRIAL DESIGN The DS20UV2-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Comet-Lake-U processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, one 2.5 drive and an M.2-2280 SSD card. Optionally, an LTE module can be fitted in the 2,5 bay using the WWN03 accessory. Thanks to its passive cooling, the system is virtually maintenancefree and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS20UV2 series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia. | |
| I/O Expansions | ||
| Number of Internal 2.5 Bays | 1 | |
| Number of Total Expansion Bays | 1 | |
| Interfaces/Ports | ||
| Total Number of USB Ports | 9 | |
| Number of Onboard USB 2.0 Ports | 1 | |
| Number of VGA Ports | 1 | |
| HDMI (Rear) | Yes | |
| Number of USB 3.2 Gen 2 Ports | 4 | |
| Memory | ||
| Maximum Memory | 64 GB | |
| Maximum Memory | 64 GB | |
| Memory Technology | DDR4 SDRAM | |
| Memory Standard | DDR4-3200/PC4-25600 | |
| Number of Total Memory Slots | 2 | |
| Miscellaneous | ||
| Environmentally Friendly | Yes | |
| Energy Star | Yes | |
| Network & Communication | ||
| Ethernet Technology | Gigabit Ethernet | |
| Ethernet Technology | 2.5 Gigabit Ethernet | |
| Operating System | ||
| Operating System Supported | Windows 11 x64 | |
| Operating System Supported | Windows 10 x64 | |
| Operating System Supported | Linux | |
| Physical Characteristics | ||
| Weight (Approximate) | 1.50 kg | |
| Form Factor | Slim PC | |
| Height | 39.5 mm | |
| Width | 165 mm | |
| Depth | 200 mm | |
| Product Color | Black | |
| Power Description | ||
| Input Voltage | 120 V AC | |
| Input Voltage | 230 V AC | |
| Frequency | 50 Hz | |
| Frequency | 60 Hz | |
| Maximum Power Supply Wattage | 65 W | |
| Processor | ||
| Processor Type | Core i7 | |
| Processor Socket | Socket BGA-1528 | |
| Processor Model | i7-10510U | |
| Processor Core | Quad-core (4 Core) | |
| 64-bit Processing | Yes | |
| Processor Manufacturer | Intel | |
| Number of Processors Supported | 1 | |
| Maximum Turbo Speed | 4.90 GHz | |
| Processor Generation | 10th Gen | |
| Processor & Chipset | ||
| Processor Type | Core i7 | |
| Processor Socket | Socket BGA-1528 | |
| Processor Model | i7-10510U | |
| Processor Core | Quad-core (4 Core) | |
| 64-bit Processing | Yes | |
| Processor Manufacturer | Intel | |
| Chipset Manufacturer | Intel | |
| Number of Processors Supported | 1 | |
| Maximum Turbo Speed | 4.90 GHz | |
| Processor Generation | 10th Gen | |
| Software | ||
| Operating System Supported | Linux | |
| Operating System Supported | Windows 10 x64 | |
| Operating System Supported | Windows 11 x64 | |
-
