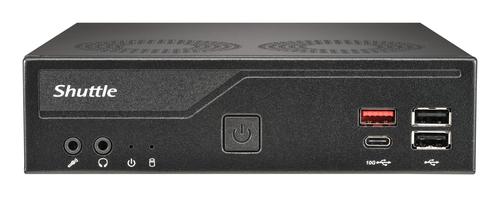

Name: Полуготова система Shuttle DH810S S1851
Price: 350.86 EUR
Availability: InStock

Audio
Built-in speaker(s)	No
Design
Cooling type	Active

LED indicators	HDD, Power

Cable lock slot	Yes

Cable lock slot type	Kensington

Housing material	Metal

Product type	Mini PC barebone

VESA mounting	Yes
General Information
Marketing Information	This robust 1.3-litre Barebone PC houses the performance of Intel's Core Ultra 200 series processors (Socket LGA1851 Arrow Lake-S) with Integrated Neural Processing Unit (NPU) for demanding AI workloads. The DH810S supports up to 8K display resolution via HDMI 2.1 plus two independent DisplayPorts, delivering a stunning visual experience for digital signage and entertainment. Beside this it also offers Intel LAN port, eight additional USBs and one COM port. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as AI tasks, Digital Signage, POS, POI, gambling machines, office, healthcare and industry.
Graphics
On-board graphics card	Yes
Logistics data
Harmonized System (HS) code	84733080
Memory
Maximum internal memory	96 GB

Supported memory clock speeds	5600 MHz

Supported memory types	DDR5-SDRAM

Memory channels	Dual-channel

ECC	No

Memory slots type	SO-DIMM

Number of memory slots	2

Memory voltage	1.1 V

Non-ECC	Yes

Internal memory installed	No
Network
LAN controller	Intel® I219
Operational conditions
Operating temperature (T-T)	0 - 50 °C

Operating relative humidity (H-H)	10 - 90%
Packaging content
Quick start guide	Yes

Drivers included	Yes

AC adapter included	Yes

Power cord included	Yes
Performance
Audio output channels	2.0 channels

Processor socket	LGA 1851 (Socket V1)

Motherboard chipset	Intel H810

Trusted Platform Module (TPM)	Yes

Trusted Platform Module (TPM) version	2.0

Number of processors supported	1

BIOS type	EFI AMI

Audio chip	Realtek ALC888S
Ports & interfaces
USB 2.0 ports quantity	4

Microphone in	Yes

Headphone outputs	1

VGA (D-Sub) ports quantity	0

Ethernet LAN (RJ-45) ports	1

Serial ports quantity	1

HDMI ports quantity	1

DisplayPorts quantity	2

HDMI version	2.1

DC-in jack	Yes

DisplayPort version	1.4a

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Power
Power supply	120 W

Number of power supply units	1

AC input voltage	100 - 240 V

AC input frequency	50/60 Hz

AC adapter output voltage	19 V

AC adapter output current	6.32 A
Software
Windows operating systems supported	Windows 11

Linux operating systems supported	Yes
Storage
Supported storage drive types	HDD & SSD

Storage drive sizes supported	2.5

Storage drive interface	M.2, PCI Express, Serial ATA

Number of storage drives supported	2

SSD form factor	M.2

NVMe	Yes

Storage drives installed	No
Sustainability
Sustainability certificates	ENERGY STAR, ErP
Technical details
Compliance certificates	BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI
Weight & dimensions
Weight	1.3 kg

Width	165 mm

Depth	190 mm

Height	43 mm

Package weight	2.1 kg
