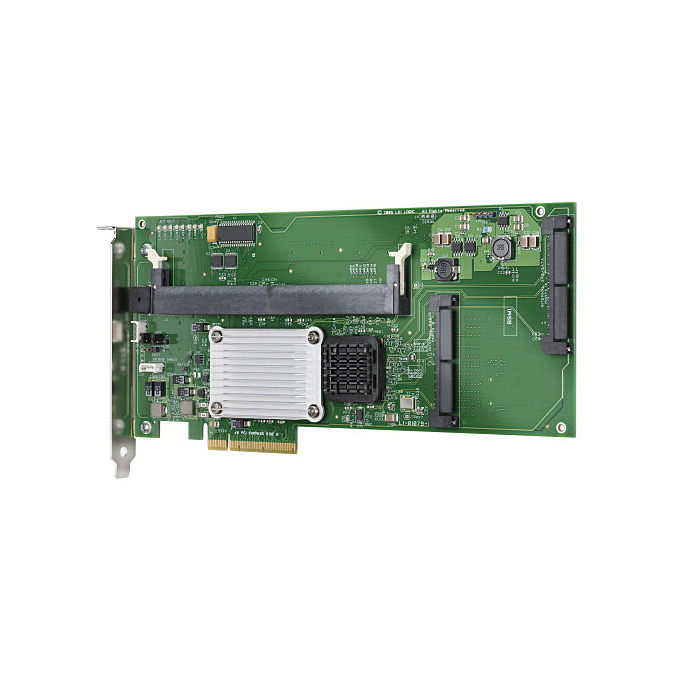

Intel® RAID Controller SRCSAS18E
An Eight-Port RAID Solution Delivering High Performance and Reliability
The Intel® RAID Controller SRCSAS18E is the first Intel RAID Controller to support both Serial ATA (SATA) and Serial Attached SCSI (SAS) devices. This gives businesses the ability to customize RAID solutions and help lower the total cost of ownership with a standardized server and storage infrastructure.
The RAID Controller SRCSAS18E supports RAID 0, 1, 5, 10, and 50 and enclosure management using SAF-TE, SES2, and Serial GPIO protocols. The controller simplifies long-term server operation and maintenance by providing auto rebuild, remote Web-based management of the RAID array through the Intel RAID Web Console 2 utility, and both online capacity expansion and RAID-level migration.
Product specifications
Hardware
Processor Intel® IOP333 I/O processor operating at 500MHz with hardware XOR
Memory Includes 256MB of Registered ECC DDR2 400MHz SDRAM (with support for up to 1GB)
PCI Interface PCI Express* x8 connector (can be used in full duplex x16 slot) via an x8 electrical connection with automatic downrev to x4
Storage Interface Eight SATA/SAS ports that support hot-plug capabilities and enclosure management
Form Factor Full-height, three-quarter length PCI: 9.5"" x 4.4"" (241 mm x 112 mm)
Status Indicators Audible alarm, I2C (for enclosure management)
Key RAID Features
RAID Levels Supported 0, 1, 5, 10, and 50
Reliability Optional battery-backup unit for up to 72 hours of cache data retention
Scalability Online RAID-level migration and capacity expansion without the need for reboot
Configurability Variable stripe size, variable cache options, drive coercion, array spanning, variable rebuild rate
Availability Auto hot-spare, auto rebuild, auto rebuild restore, drive roaming, controller migration, online capacity expansion, remote monitoring and management
Manageability Intel® RAID BIOS Console, Intel® RAID Web Console 2, Command Line Utilities
Operating System Support
Operating-system support is contingent on the operating-system support of the motherboard in which the controller is installed. For information on the latest operating-system support, visit: http://support.intel.com
Power Requirements
Operating Voltage +3.3 V (2.8 A), +12 V (1 A without battery)
Power 24 W
Environment
Ambient Temperature Operating (dry bulb): 0C to 55C
Relative Humidity 5% to 90% non-condensing
System Requirements Intel® -based server or equivalent with PCI Express* x8 or x16 connector
http://www.intel.com/products/server/raid-controllers/srcsas18e/srcsas18e-overview.htm
