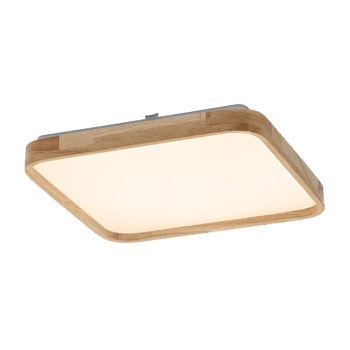

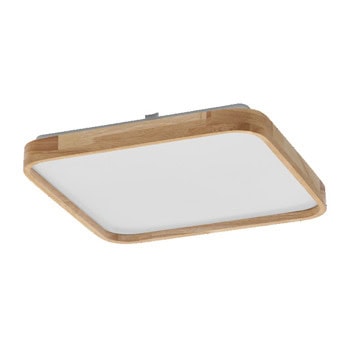

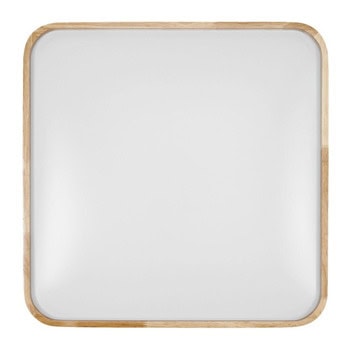

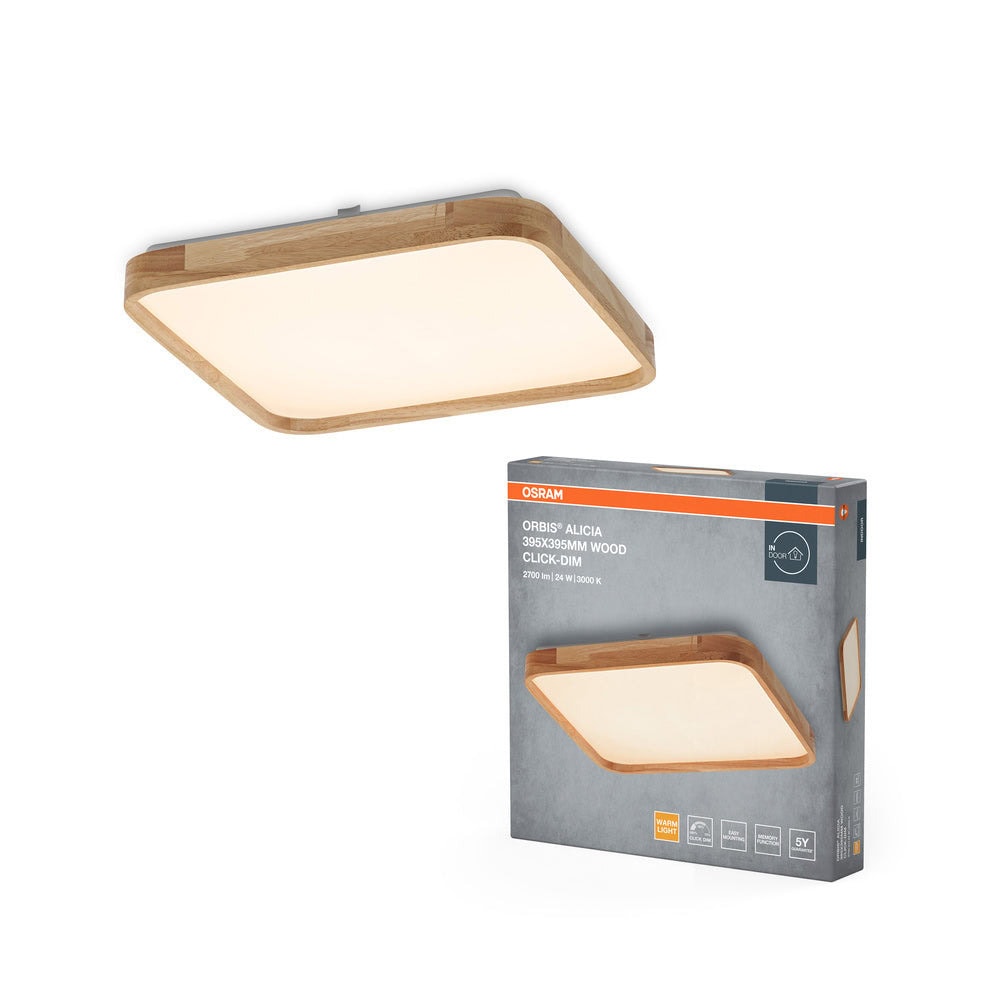

LED плафон Ledvance Orbis Alicia 395mm 830 Click DIM Wood Decor, за таван, 24W, 1600lm, 3000K, кафяв

Important: All electrical connections must be made by a qualified person with the power supply disconnected !


Product benefits
Stylish and modern design
Easy to install and use
Long lifetime thanks to LED technology

Areas of application
Indoor
Living areas (living rooms, dining rooms, bedrooms etc.)

Product features
Type of protection: IP20
Lifetime up to 30,000 h
Click-DIM version: dimmable in three steps by repeated switching
Color temperature: 3,000 K (Warm White)
Housing material: real wood and metal

Safety advice
Luminaire must be disconnected from mains during installation, maintenance and cover removal
Check wall-ceiling for suitability. If uncertain, seek professional advice.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
All electrical connections must be made by a qualified person.
Caution, risk of electric shock.


Specifications

Electrical data
Nominal wattage 24.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 185.000 mA
Inrush current time Th50 5.79 µs
Max. number of luminaires per miniature circuit breaker B16 69
Max. number of luminaires per miniature circuit breaker C10 43
Max. number of luminaires per miniature circuit breaker C16 69
Power factor λ > 0.5
Total harmonic distortion < 15 %
Protection class I
Operating mode External LED driver

Photometrical data
Luminous flux 1600 lm
Total luminous flux of contained light sources 2700 lm
Luminous efficacy 66 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching ≤6 sdcm
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 120 °

Dimensions & Weight
Length 395.00 mm
Height 60.00 mm
Width 395.00 mm
Product weight 1100.00 g

Materials & Colors
Product color Wood decor
Housing color Wood decor
Body material Metal|wood
Cover material Plastic
Glow Wire Test according to IEC 60695-2-12 650 °C

Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Terminal, 3-Pole (L, N, PE)
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming 3 DIM
Mounting type Surface
Application environment Indoor
With light source Yes
Replaceable light source No

Lifespan
Lifespan L70/B50 at 25 °C 50000 h 1)
Number of switching cycles 25000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards
Standards CE; UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
