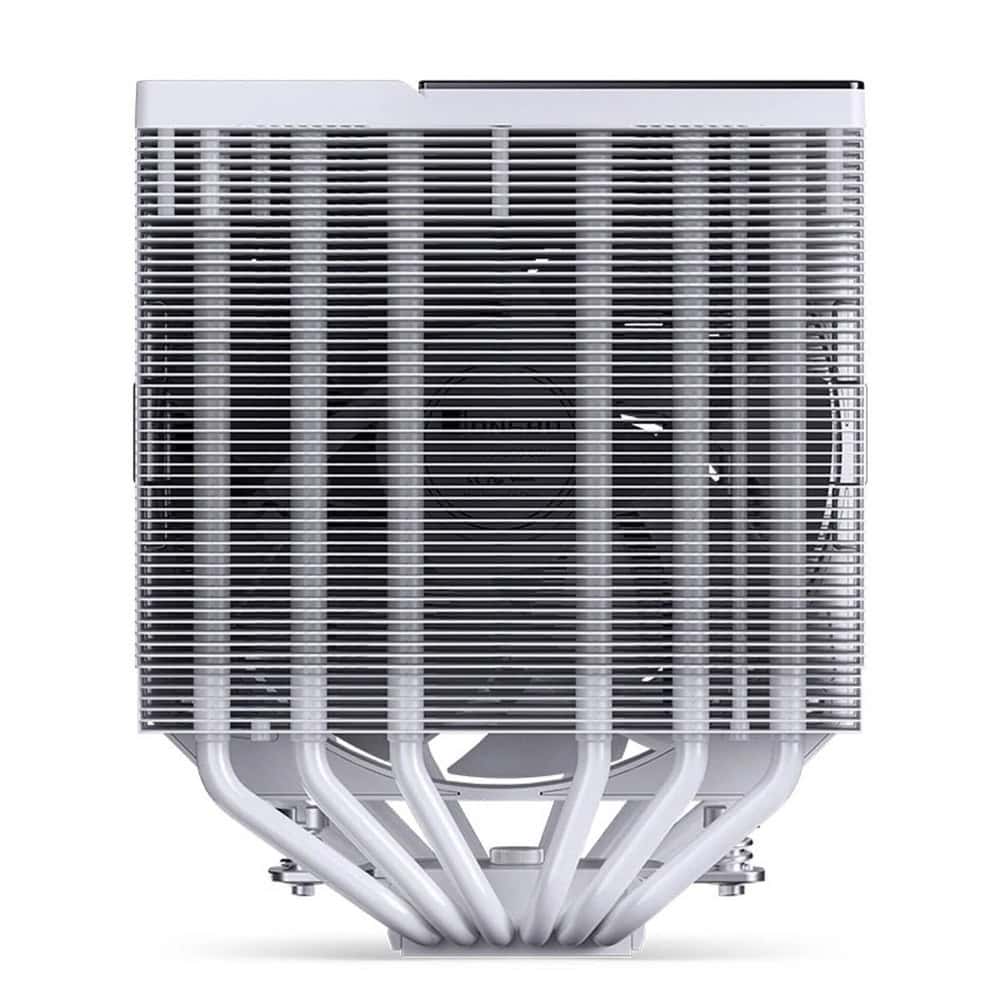

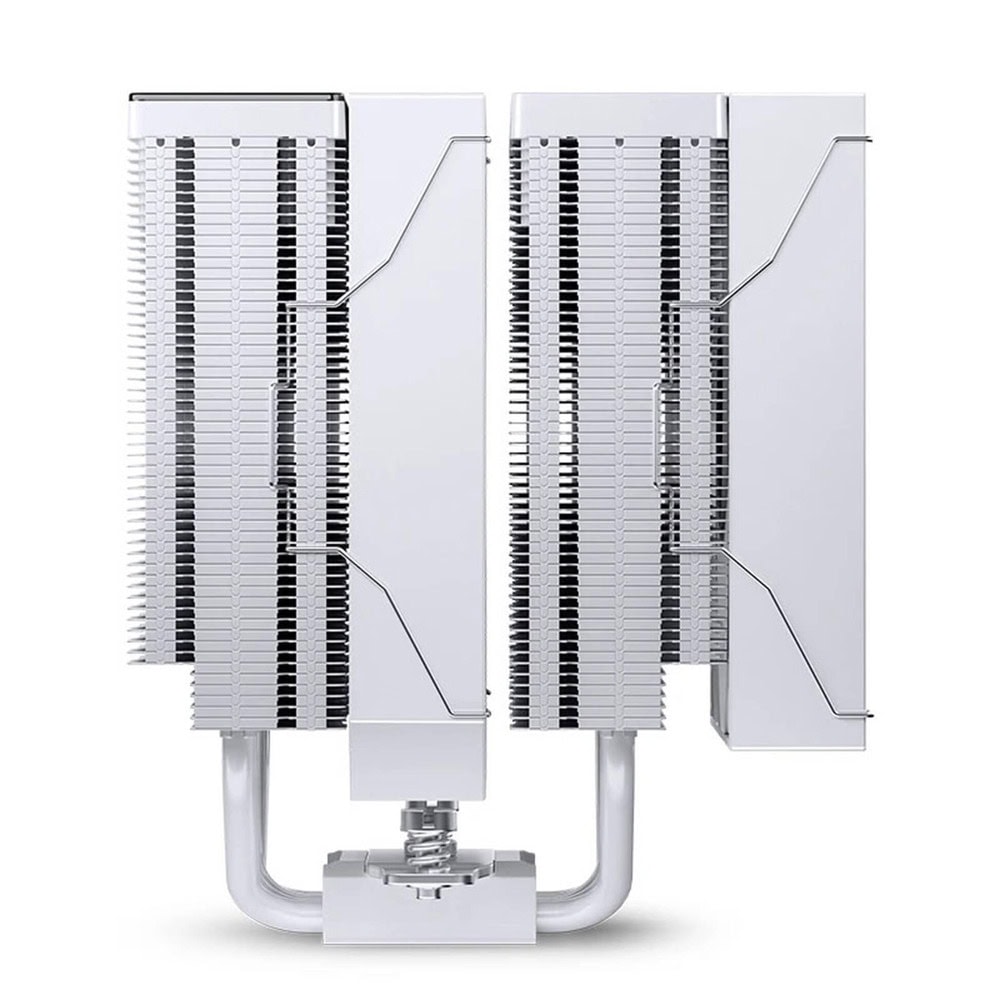

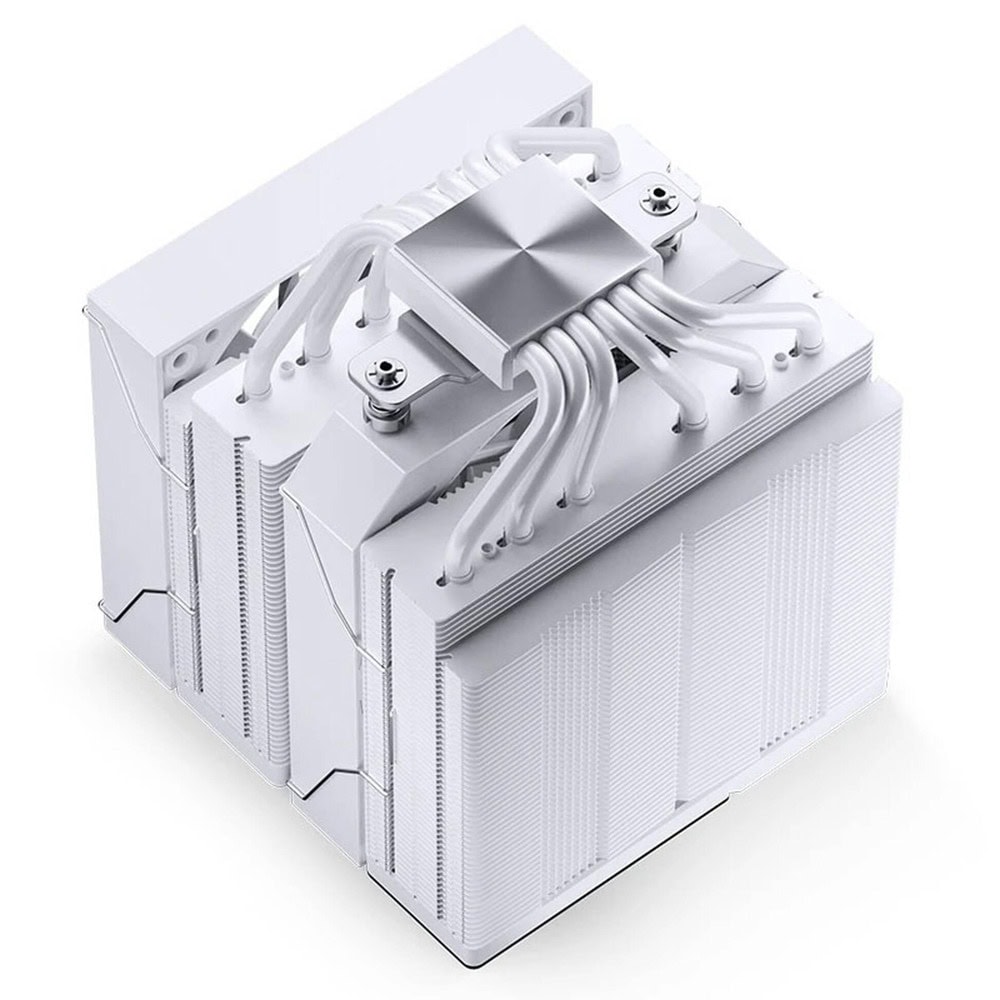

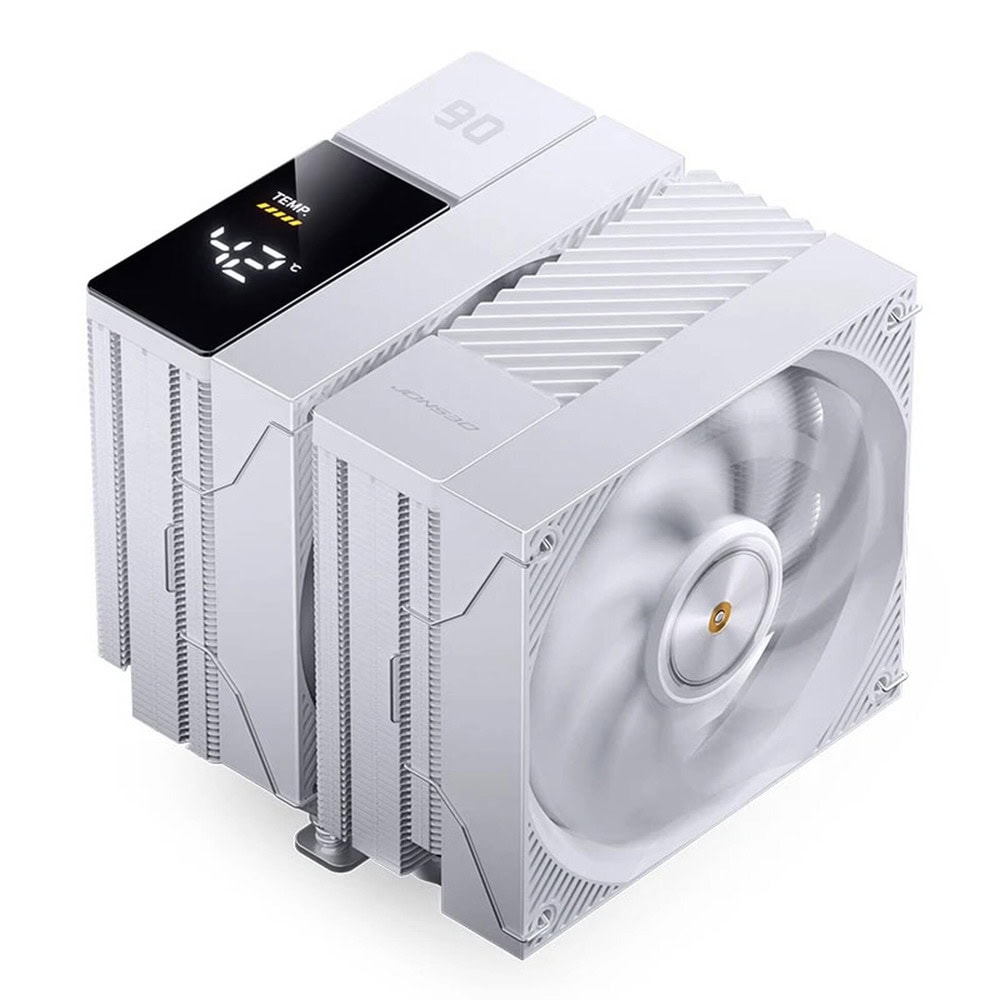

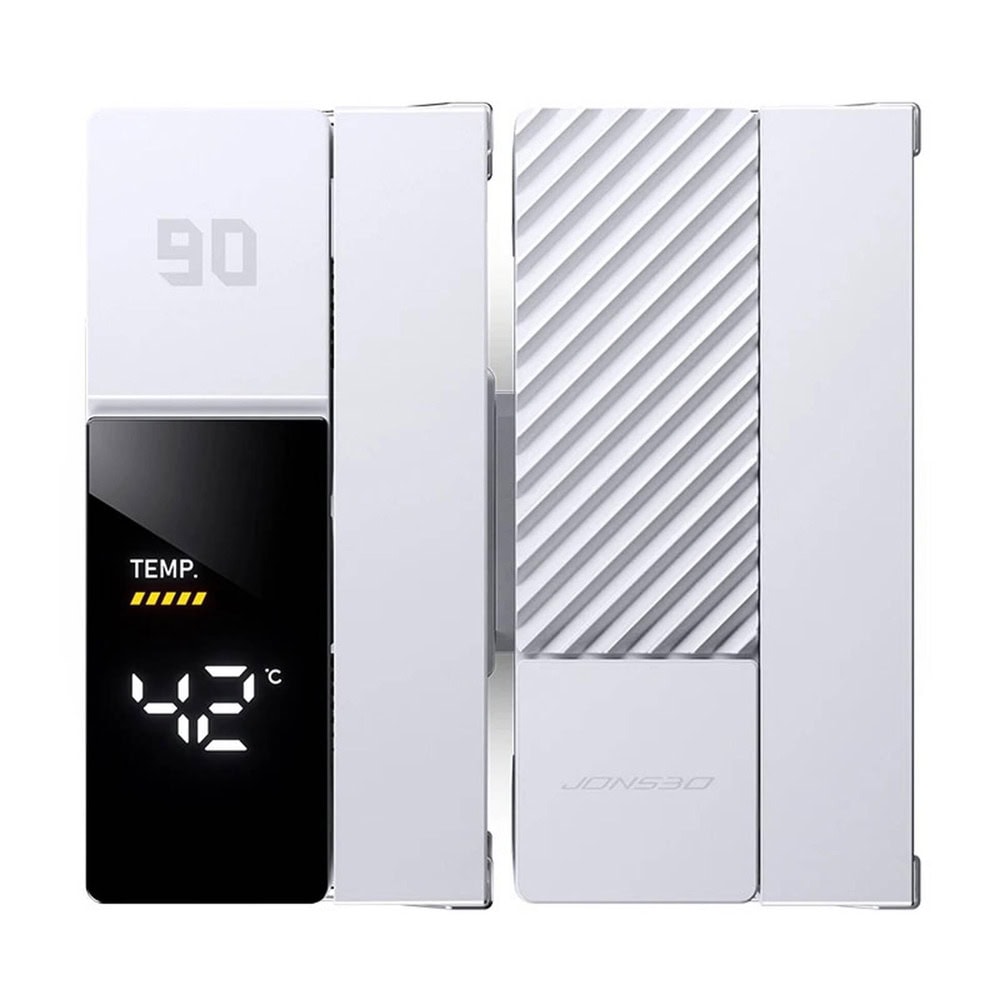

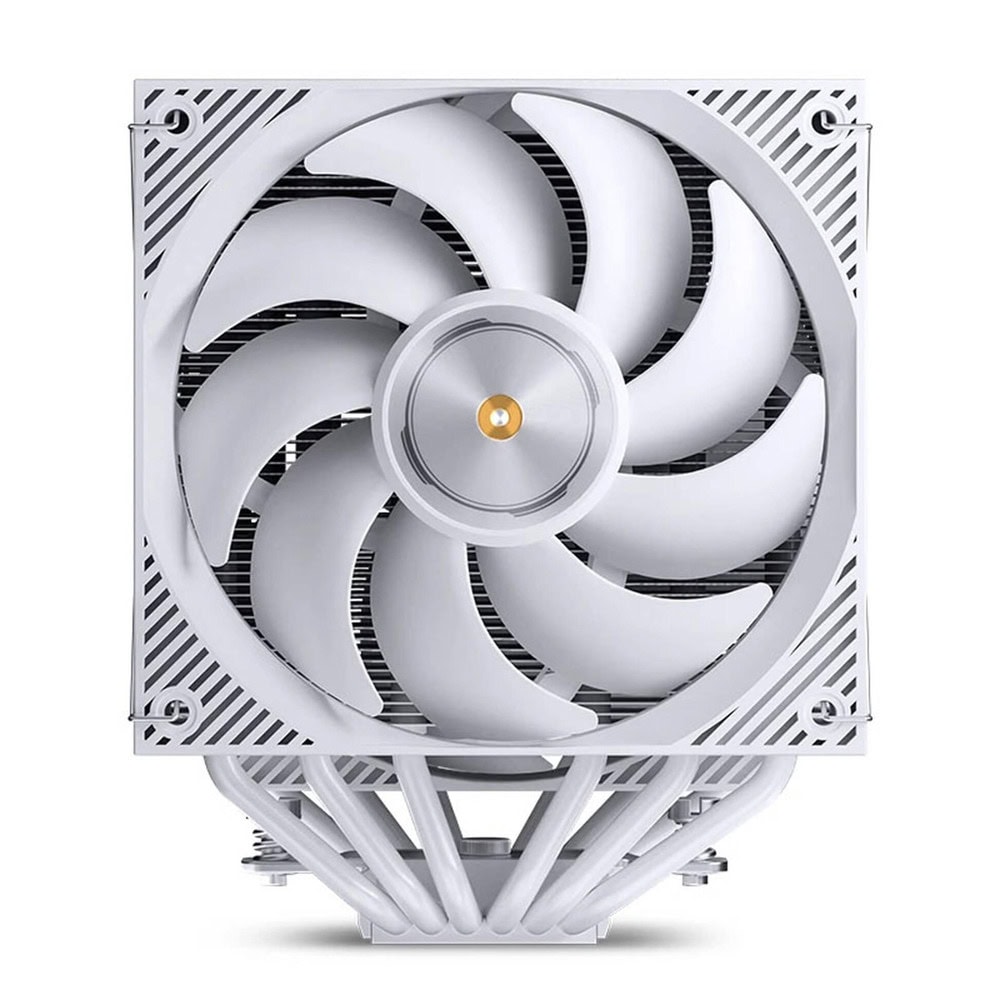

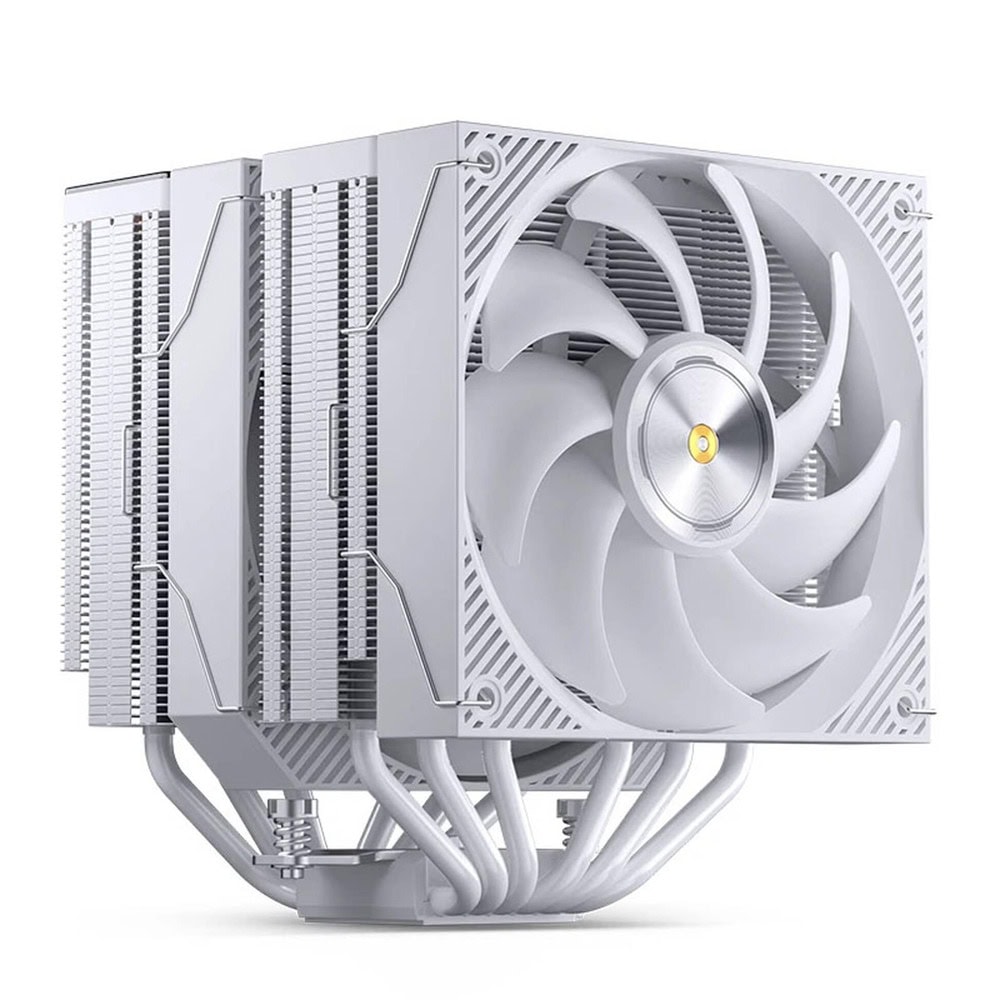

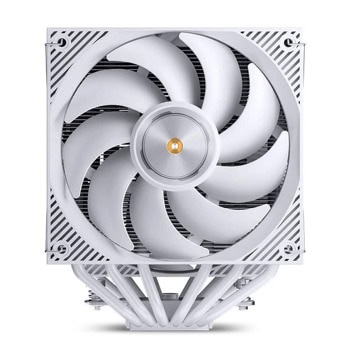

Охлаждане за процесор Jonsbo CC90 White, съвместимост със сокети Intel LGA 1851/1700/1200/115x & AMD AM5/AM4

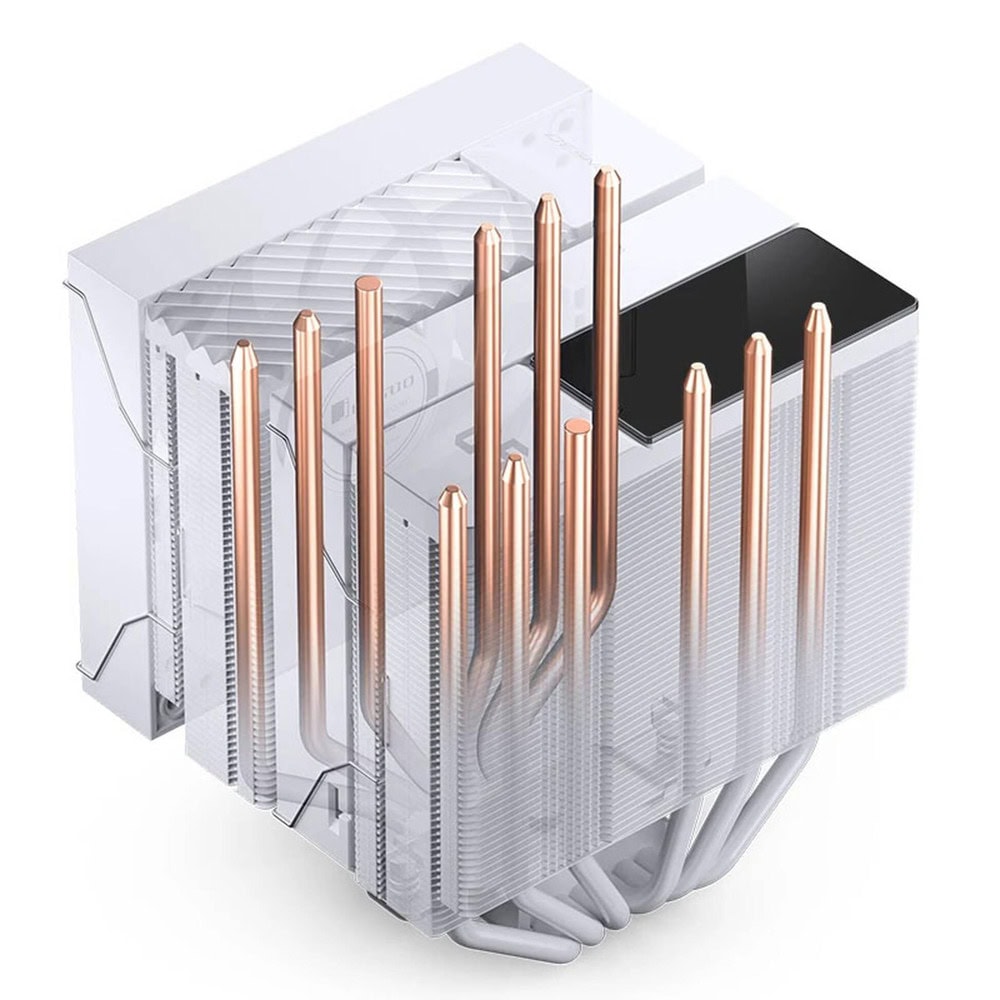

Full blackening process Tower body, heat pipes with full blackening treatment; 6mm x 6 reverse gravity heat pipes with blackened coating
Excellent heat dissipation performance Newly tuned and optimized heat pipes and fans Precise matching with multiple sets of spacing pillars
13cm Wide-body heat sink tower Larger heat dissipation area More effective heat dissipation performance

Specifications

Dimensions: 135mm(L)*130mm(W)*158mm(H)
Heatpipe size: Φ6mm*6 PCS
D-TDP: 285W

Fan Dimensions:
130mm* 130mm* 25.5mm（130mm Fan)
130mm*120mm*25mm（120mm Fan)

Fan Speed
700-1700(±100)
RPM (130mm Fan)
700-2050(±100)
RPM (120mm Fan)

Fan Air Flow
32.5-81 CFM (130mm Fan)
24.78-77.81 CFM (120mm Fan)

Fan Air Pressure
0.4-2.28 mmH2O (130mm Fan)
0.37-3.0 mmH2O (120mm Fan)

Fan Noise Level
14.8-37.1 dB(A) (130mm Fan)
14.1-34.6 dB(A) (120mm Fan)

Fan MTTF
50,000 Hours, at 40℃, 15%-65%RH

Connector
PWM 4PIN (130mm Fan)
PWM 4PIN (120mm Fan)

Rated Current
FAN 0.18A (MAX: 0.25A) (130mm Fan)
FAN 0.18A (MAX: 0.25A) (120mm Fan)

Rated Voltage
FAN 12V DC (130mm Fan)
FAN  12V (120mm Fan)

Power Consumption
Fan 2.16W (MAX: 3.0W)
LED 1.5W (120mm Fan)

Scope of Application
INTEL LGA 115X/1200/1700/1851
AMD AM4/AM5
