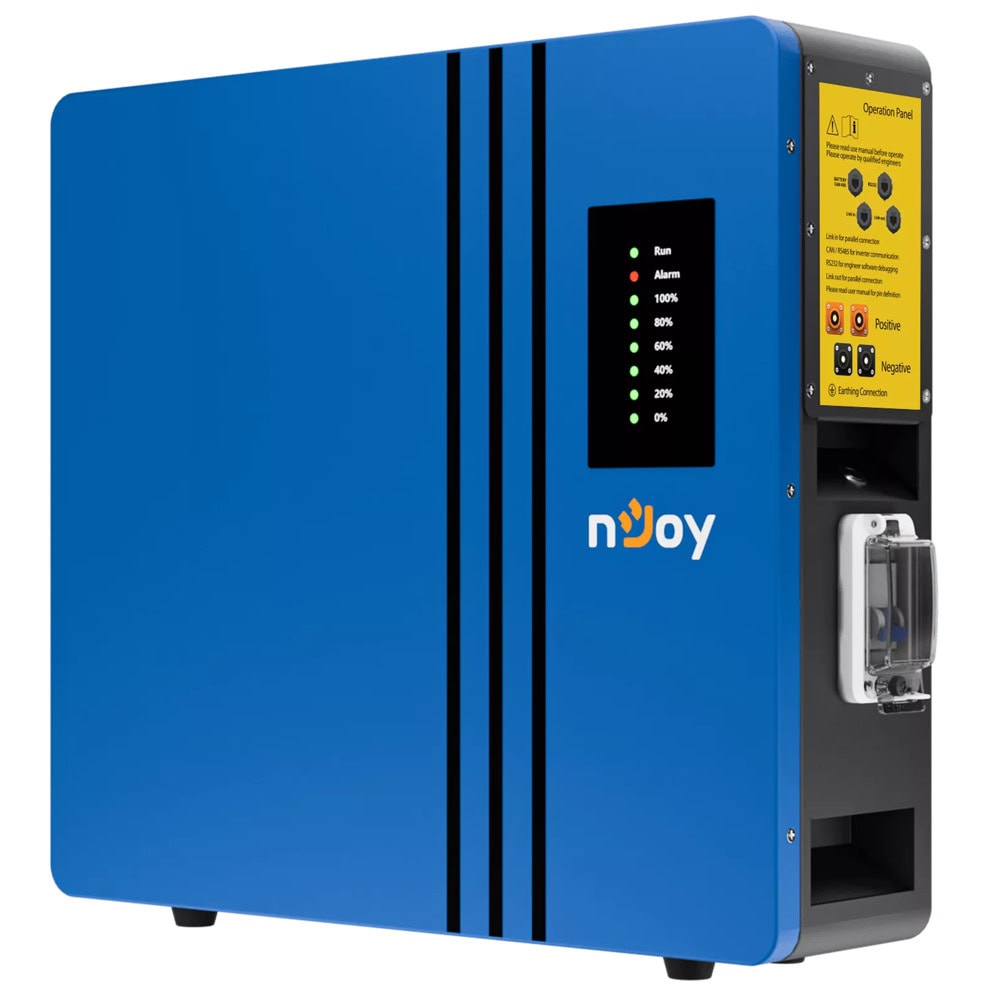

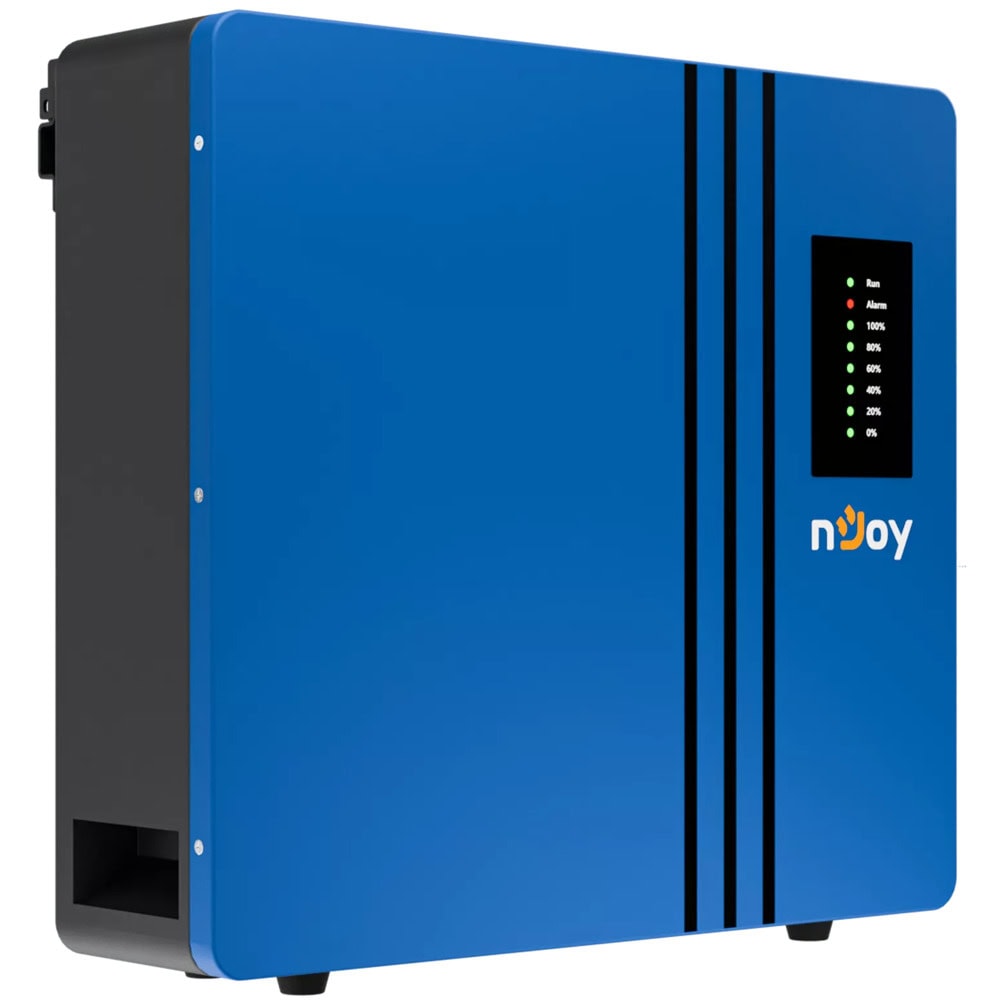

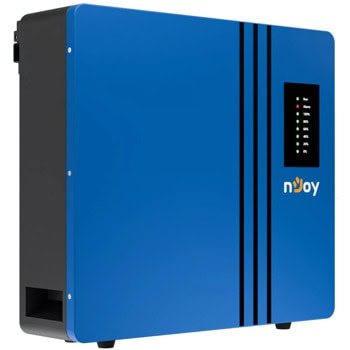

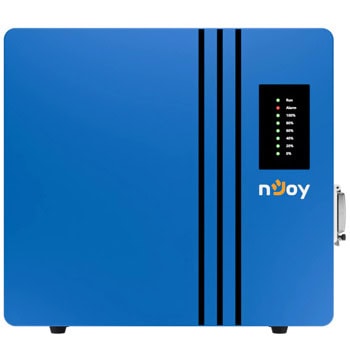

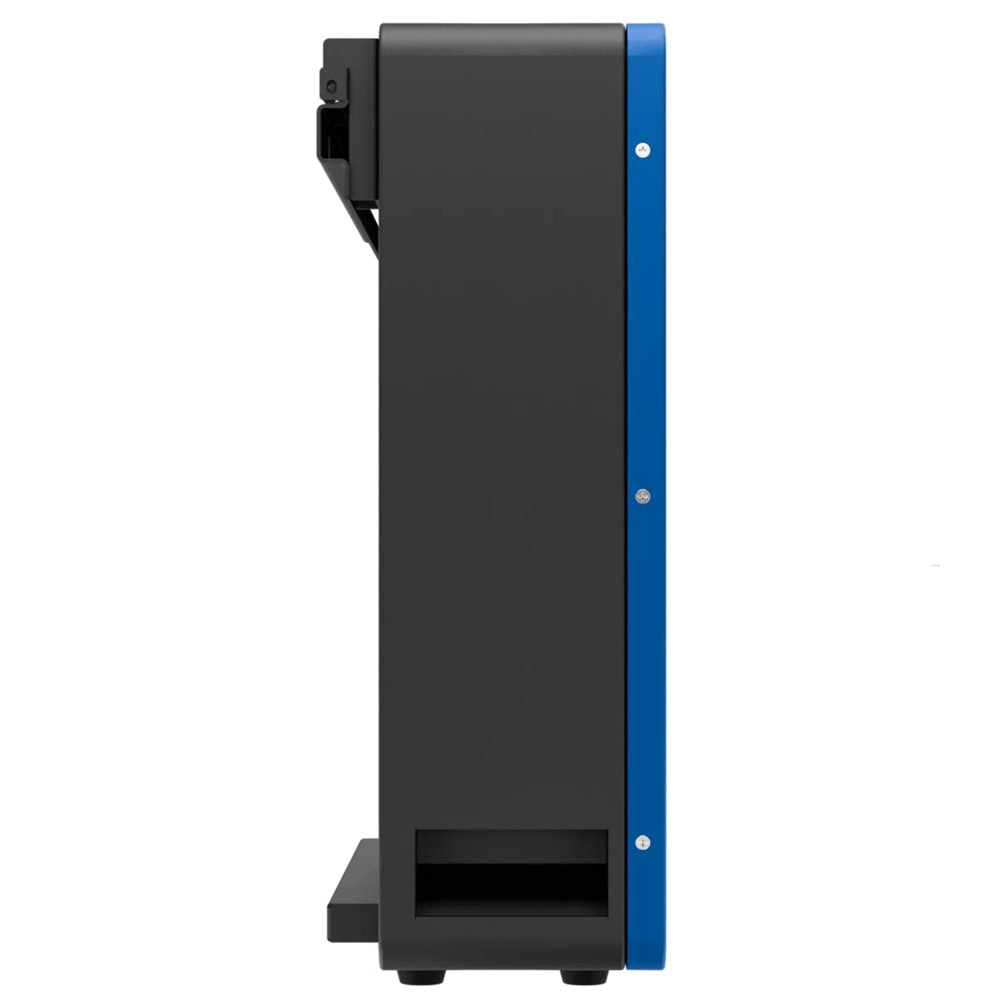

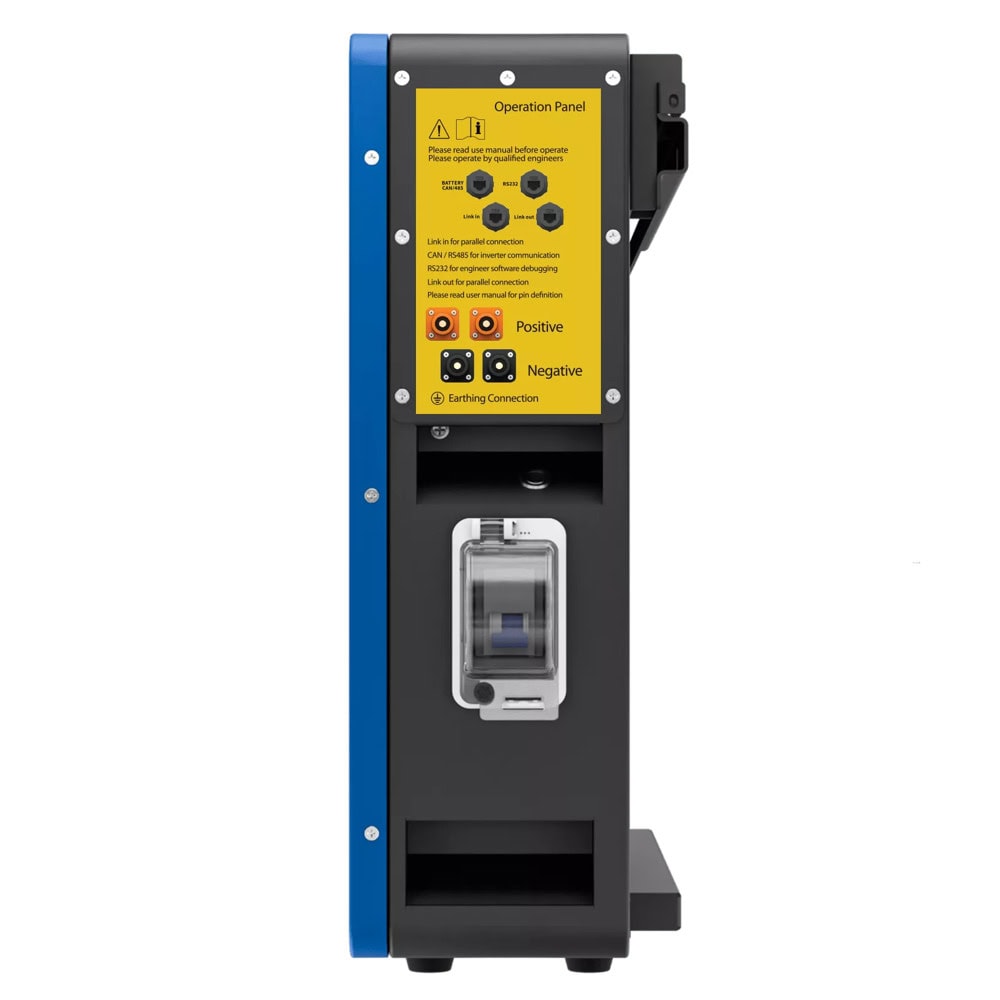

Name: Батериен модул Bastion WF5K (2025) (MF51H5110BDA01B), 51.2V, 5.12 KWh, Lithium LiFePO4
Brand: NJOY
SKU: UACNJOYMF51H5110BDA01B
Price: 1116.36 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

Bastion WF5K (2025)

5.12KWh Battery Module
A Grade - LiFePO4 cells
Integrated Heating
Fire suppression module built-in
IP 65 Protection

Specification	Details
Nominal Voltage	51.2V
Energy Stored	5.12 KWh
Operation Voltage	44.80 - 56.16V
Cell Technology	Lithium LiFePO4
Battery Cycle Life (@ 80% DOD & 25°C)	6000 times
Integrated BMS	Yes
Fire suppression module built-in	Yes
Integrated heating	Yes
Display	LED
Max Charge Current	110A (environment 0° ~ 50°C) *
Max Discharge Current	110A (environment 0° ~ 50°C) **
IP Rating	IP65
Scalability	Yes, up to 15 pcs
Suggested SOC (State of Charge)	10% - 100%
Integrated Communication	RS232, RS485, CAN
Protections	Cell/Pack Under-voltage; Cell/Pack Over-voltage; Charge / Discharge Over-current; Charge / Discharge Under-temperature; Charge / Discharge Over-temperature; Mosfet Over-temperature; Environment Under-temperature; Environment Over-temperature; Cell Balancing
Other Features	Compatible with hybrid low volage inverters
Charging Operation Temperature	-10 ~ 55℃ ***
Discharging Operation Temperature	-20 ~ 60℃ ****
Storage Temperature	-20 ~ 45℃
Accessories	All necessary accessories included
Installation	Wall Mounted
Dimensions (L * W * H)	548 x 485 x 173 mm
Weight	48 kg
