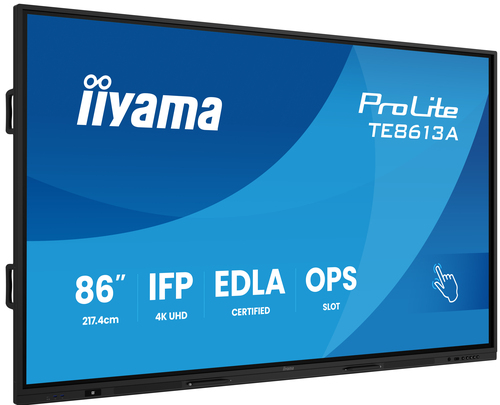

Монитор IIYAMA TE8613A-B2AG 86IN, 8 GB, 128 GB ARM Mali-G52, Android
Икона в кампания
empty image 1empty image 2empty image 3

Монитор IIYAMA TE8613A-B2AG 86IN, 8 GB, 128 GB ARM Mali-G52, Android

id s4998828
  • Наличност: Не е наличен
    Продукта вече не се предлага Абонирай се за бюлетина
    Описание
    Audio
    Number of built-in speakers2
    RMS rated power60 W
    Built-in speaker(s)Yes
    Computer system
    Operating system installedAndroid
    Processor cores4
    Operating system version14
    Built-in processorYes
    Internal storage capacity128 GB
    On-board graphics card modelARM Mali-G52
    Processor architectureARM Cortex-A73
    Processor frequency1.4 GHz
    Internal memory8 GB
    Computer systemYes
    Design
    Product colourBlack
    Placement supportedIndoor
    Panel mounting interface800 x 600 mm
    Product designKiosk design
    Bezel width (side)1.65 cm
    Bezel width (top)1.65 cm
    Bezel width (bottom)4.1 cm
    Anti-glare screenYes
    VESA mountingYes
    OrientationHorizontal
    Positioning accuracy1 mm
    Bezel colourBlack
    Display
    Pixel pitch0.493 x 0.493 mm
    Contrast ratio (typical)1200:1
    Horizontal scan range30 - 135 kHz
    Viewing angle, horizontal178°
    Viewing angle, vertical178°
    Display diagonal2.17 m (85.6)
    Display brightness500 cd/m²
    Response time8 ms
    Display resolution3840 x 2160 pixels
    Display diagonal (metric)217.4 cm
    Contrast ratio (dynamic)5000:1
    Touchscreen technologyPureTouch-IR
    Glass thickness3.2 mm
    Number of simultaneous touchpoints40
    Native aspect ratio16:9
    HD type4K Ultra HD
    Panel typeIPS
    Active display area (W x H)1895 x 1066 mm
    Display number of colours1.07 billion colours
    Surface hardness7H
    General Information
    Marketing InformationThe TE8613A-B2AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6 with Bluetooth 5.0 connectivity, iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.
    Logistics data
    Products per pallet4 pc(s)
    Network
    Wi-Fi standardsWi-Fi 6 (802.11ax)
    Ethernet LANYes
    Wi-FiYes
    Ethernet LAN data rates1000 Mbit/s
    Operational conditions
    Storage temperature (T-T)-20 - 60 °C
    Operating temperature (T-T)0 - 40 °C
    Other features
    Power supply typeInternal
    Bluetooth version5.0
    Brightness500 cd/m²
    Compatible operating systemsAll iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
    Quick start guideYes
    Packaging content
    Remote control includedYes
    Cables includedAC, USB, HDMI
    Stylus penYes
    Number of stylus pens4
    Packaging data
    Package weight76.5 kg
    Package depth185 mm
    Package height1265 mm
    Package width2095 mm
    Performance
    Mean time between failures (MTBF)50000 h
    PurposeEducation
    On Screen Display (OSD)Yes
    On Screen Display (OSD) languagesCzech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian
    Number of OSD languages13
    HDCP version2.2
    Operating hours (hours/days)24/7
    Ports & interfaces
    Compatible memory cardsMicroSD (TransFlash)
    USB connector typeUSB Type-A, USB Type-B, USB Type-C
    Ethernet LAN (RJ-45) ports2
    Card reader integratedYes
    HDMI ports quantity3
    HDMI version2.0
    DisplayPorts quantity1
    USB version2.0/3.2 Gen 1 (3.1 Gen 1)
    DisplayPort version1.2
    USB ports quantity6
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
    USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity2
    USB portYes
    USB 2.0 Type-B ports quantity1
    USB Type-C DisplayPort Alternate ModeYes
    USB Power Delivery (USB PD)Yes
    OPS module slotYes
    HDMI input ports quantity1
    HDMI output ports quantity1
    USB Power Delivery up to100 W
    Power
    Power consumption (typical)282 W
    Power consumption (off)0.3 W
    Power consumption (standby)0.5 W
    AC input frequency50/60 Hz
    AC input voltage100 - 240 V
    Energy efficiency scaleA to G
    Energy efficiency class (SDR)G
    Energy consumption (SDR) per 1000 hours260 kWh
    Weight & dimensions
    Weight63.8 kg
    Height1154 mm
    Width1955.6 mm
    Depth87.1 mm
    Display depth87.1 mm
    Display height1154 mm
    Display weight63.8 kg
    Display width1955.6 mm
