Комплект конферентна камера и дисплей Logitech Rally Bar Mini + Tap IP, 3x говорителя, 4K/UHD, 6 вградени микрофона, управляема (PTZ), 10.1" (25.65 cm) IPS дисплей, 1280 x 800, покритие против пръстови отпечатъци, LAN, Wi-Fi, HDMI, USB, черна

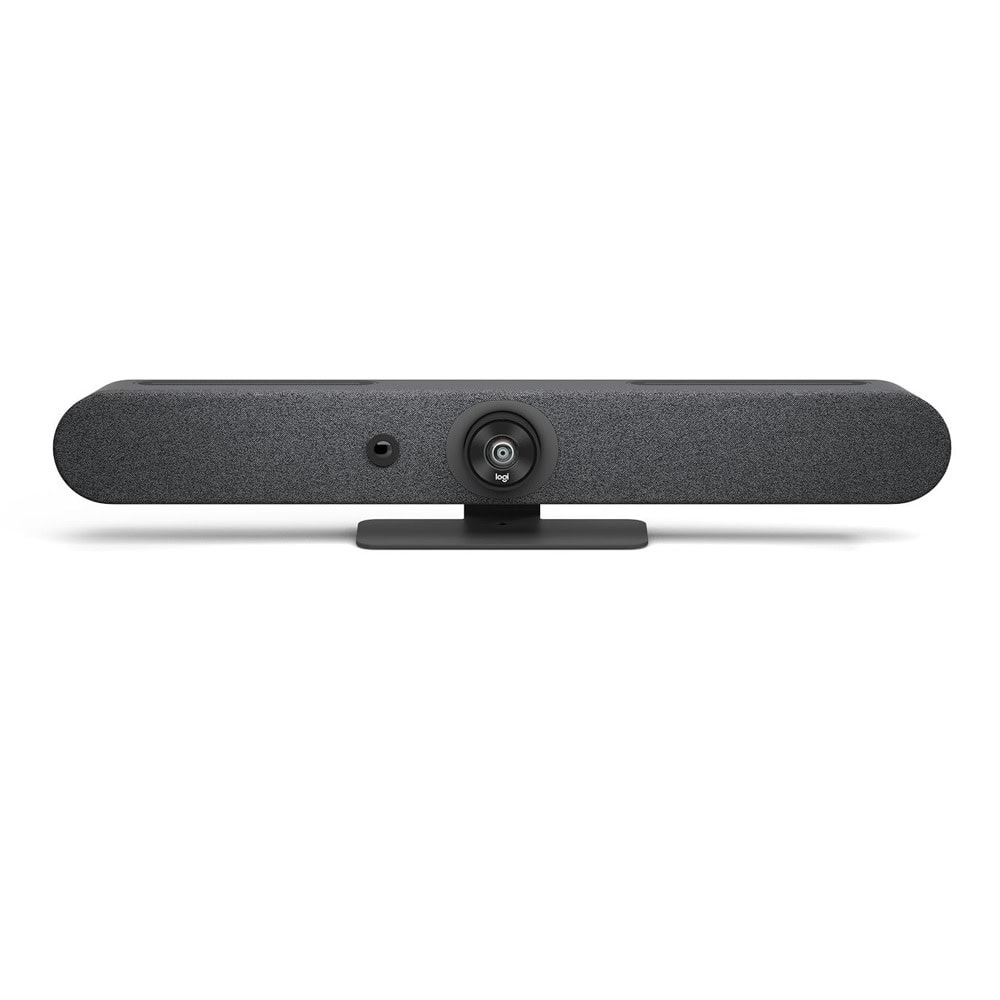

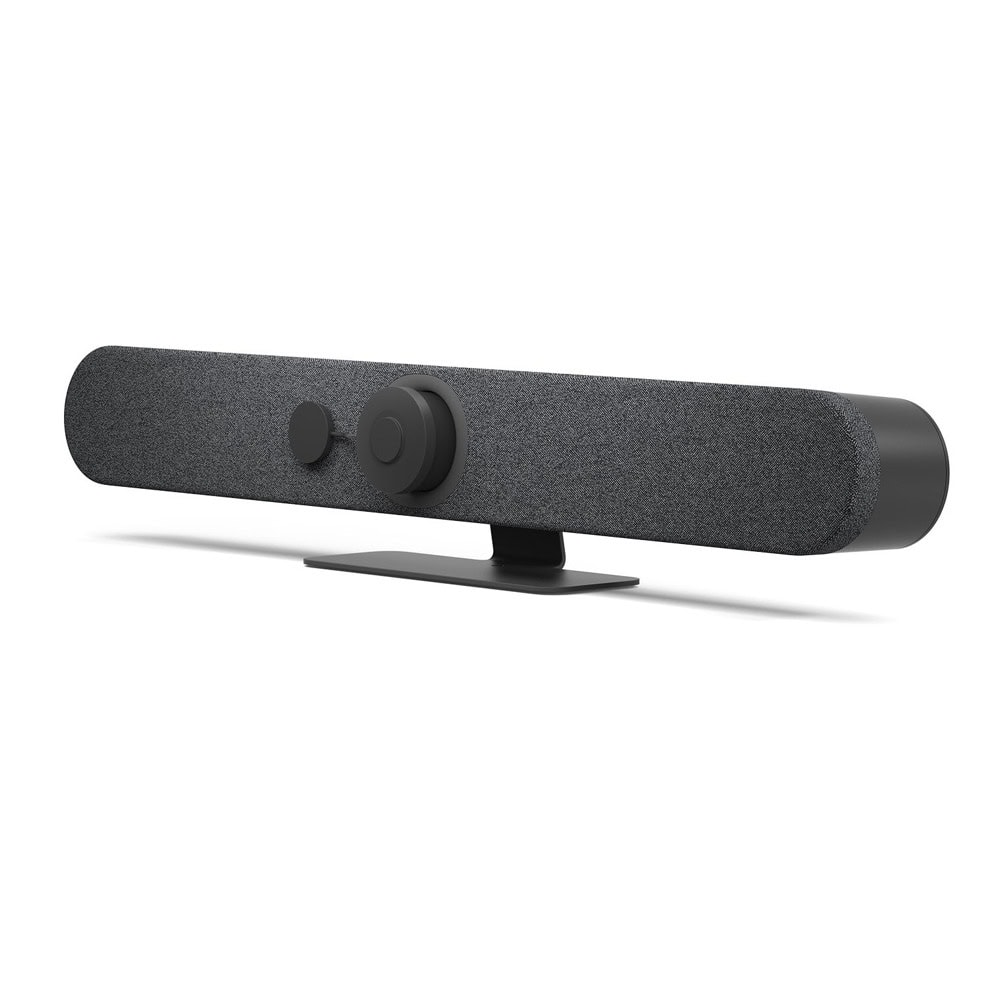

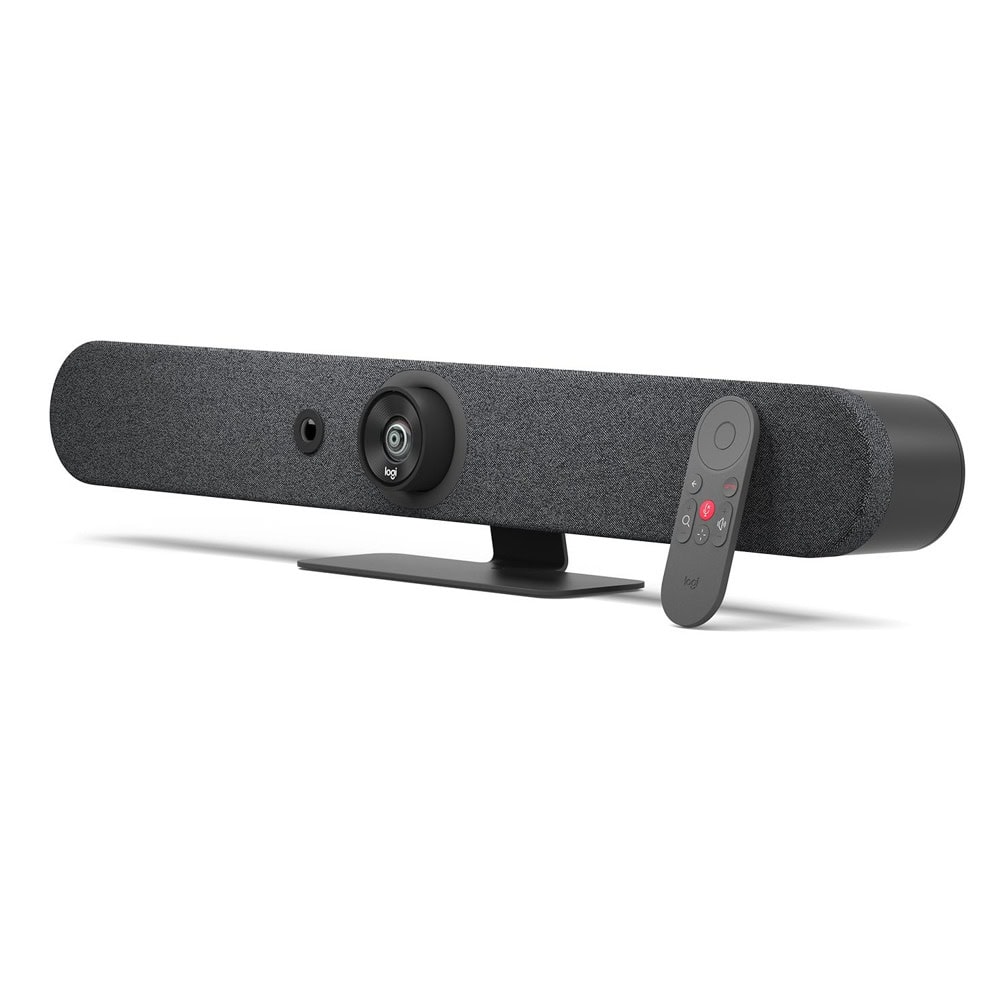

Logitech Rally Bar Mini

Premier all-in-one video bar for small rooms

SIMPLE TO SET UP

Connect via USB to virtually any PC or Mac with no additional software needed.

SIMPLE TO USE
 Start your meeting with just one touch, seamlessly connecting Rally Bar Mini to your preconfigured room solution.

STAYS FOCUSED
Using AI, human perception, and motorized pan and tilt, Rally Bar Mini adapts to meeting dynamics and keeps the camera on the action.

EXPAND THE CONVERSATION
Easily accommodate any small room or huddle space, starting with a 4.6 m mic pickup range (varies by environment) and the option to add up to 2 Rally mic pods.

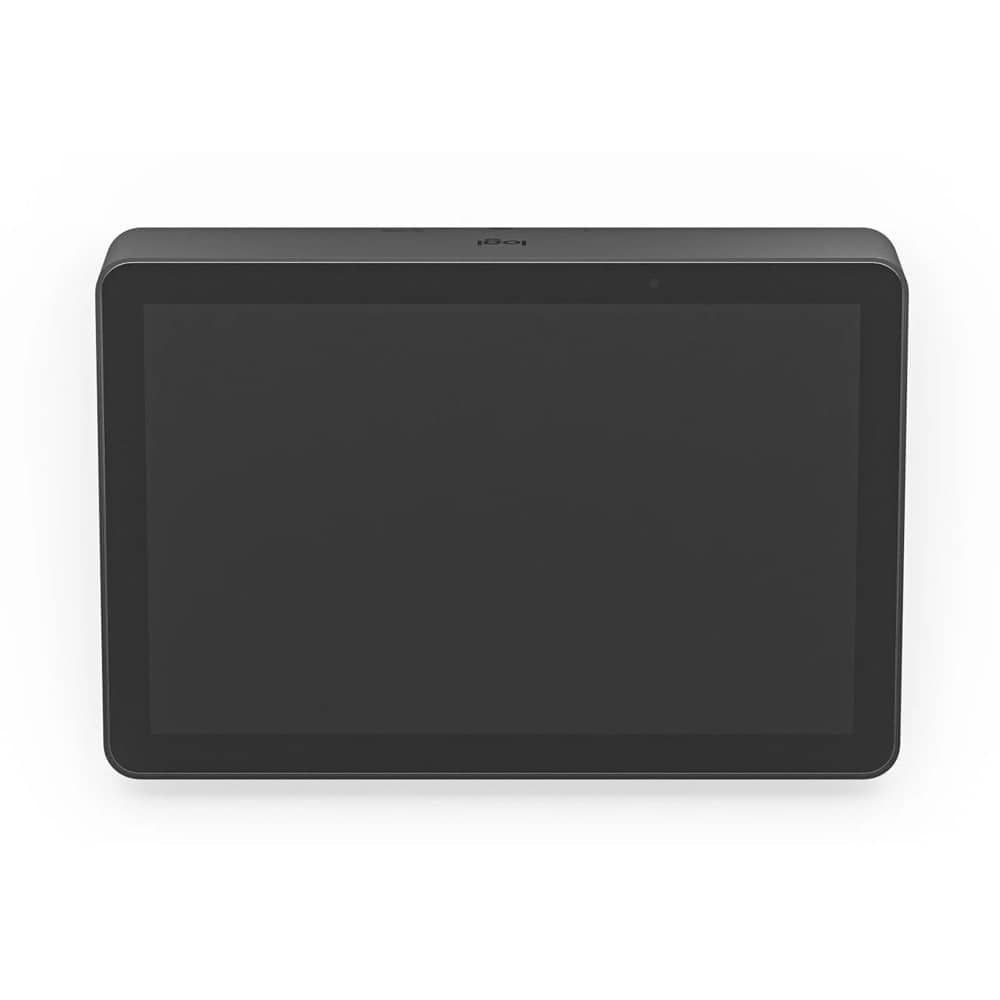

Logitech Tap IP

CLEAN AND CONVENIENT SETUP

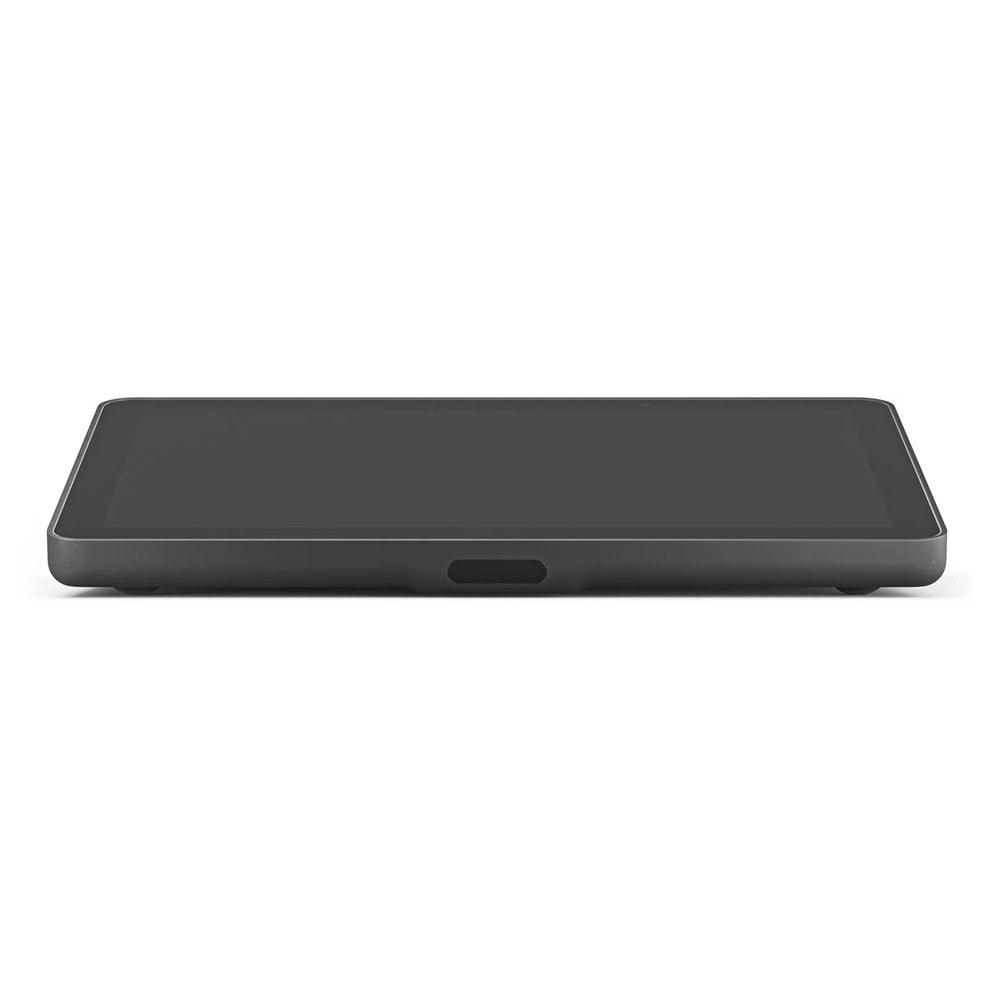

Just the Right Presence

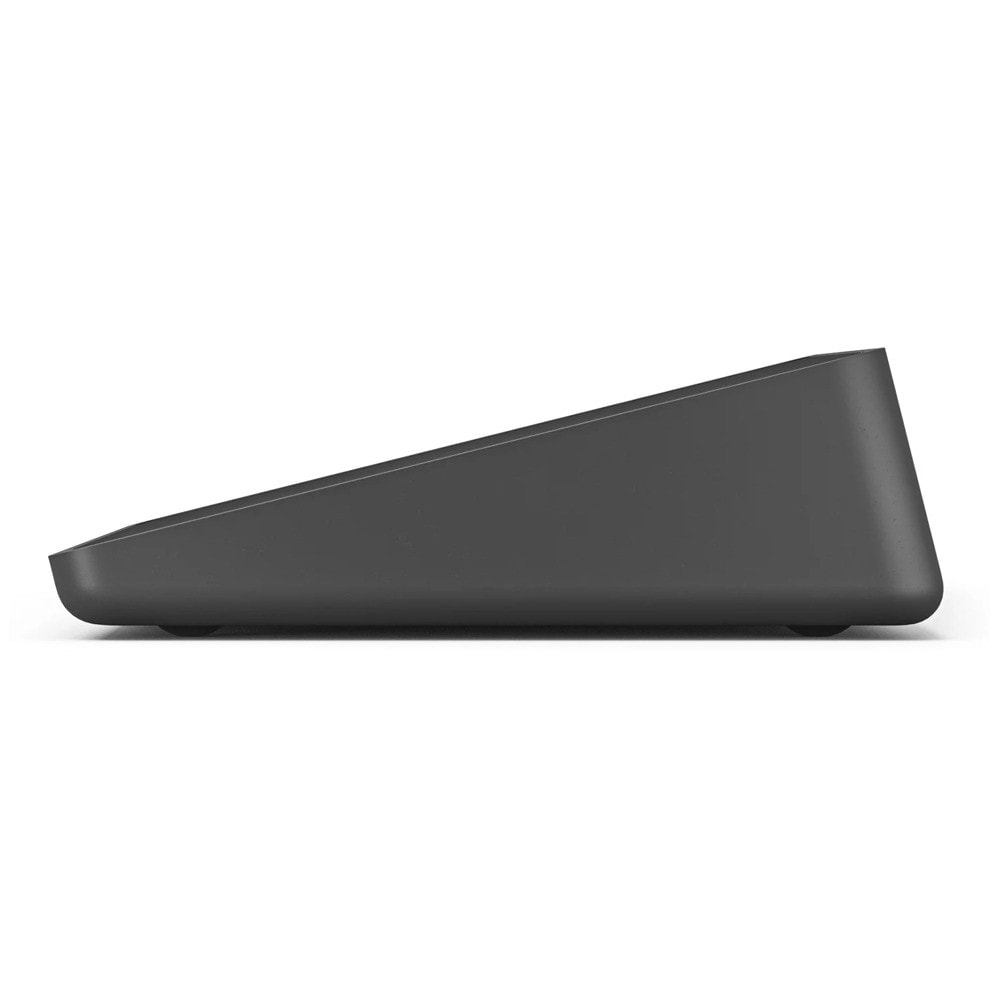

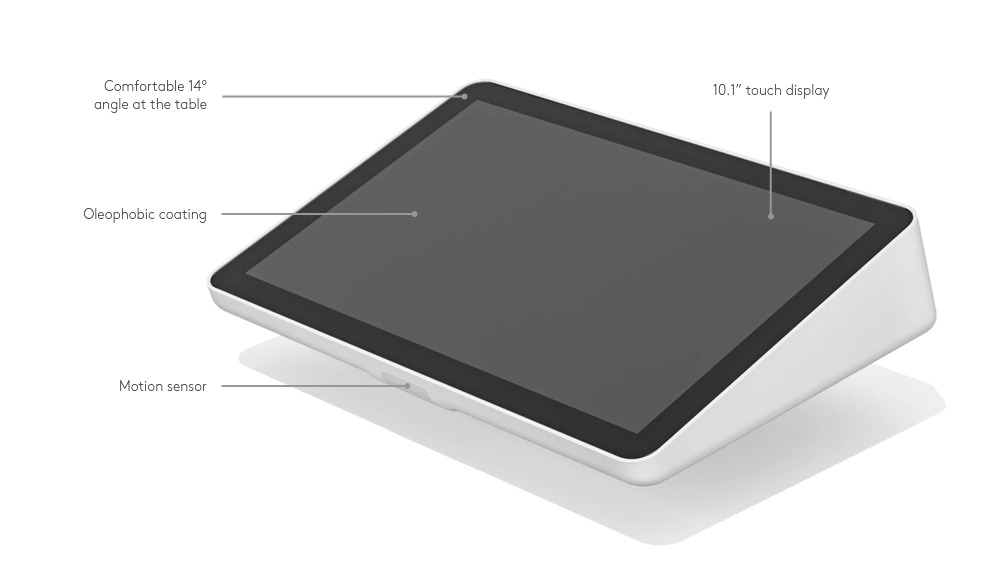

With a spacious 10.1” display, low profile, and motion sensor for always-on readiness, Tap IP has a sleek and unobtrusive presence in the room.

CLEAN AND CONVENIENT SETUP

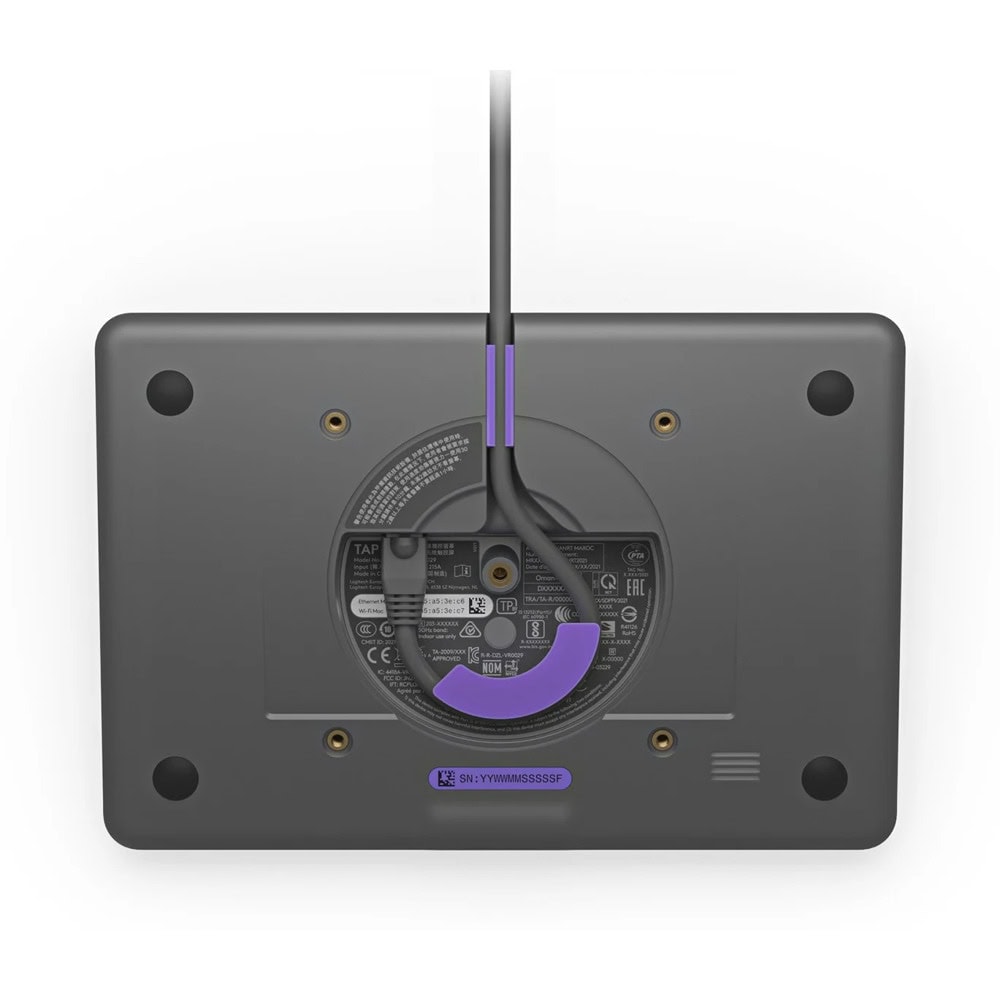

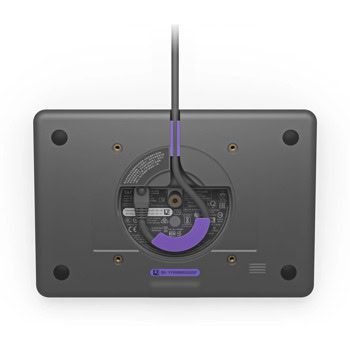

Simple and Secure Cabling

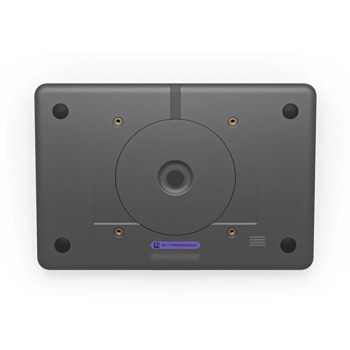

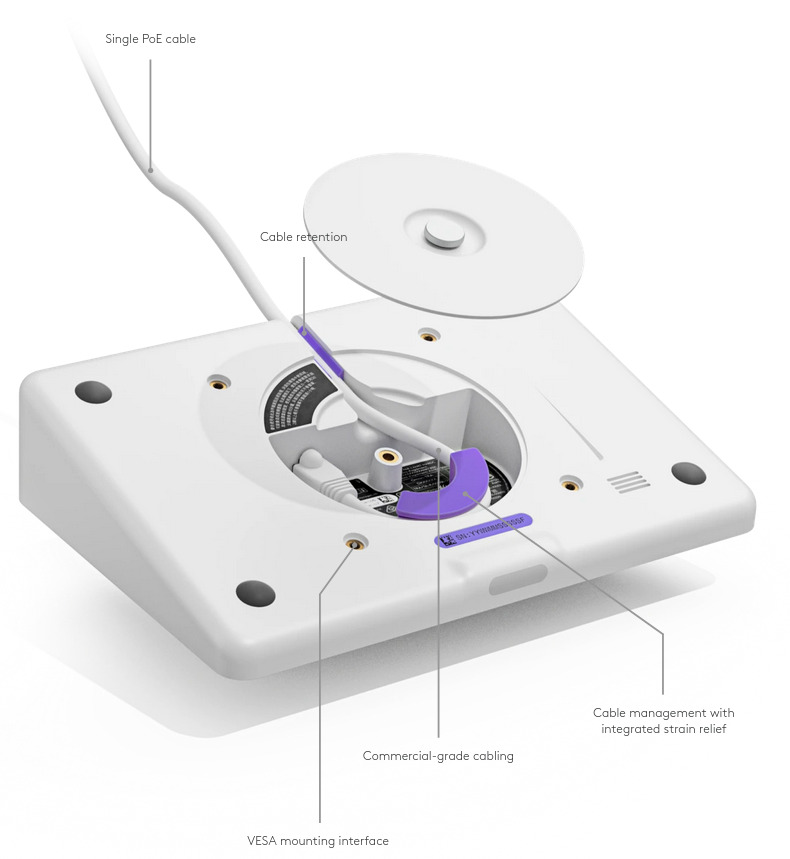

Streamline setup with a single cable that can be routed through the back or below the device. Keep connections tight with built-in strain relief and retention mechanisms.

CLEAN AND CONVENIENT SETUP

Single cable simplicity

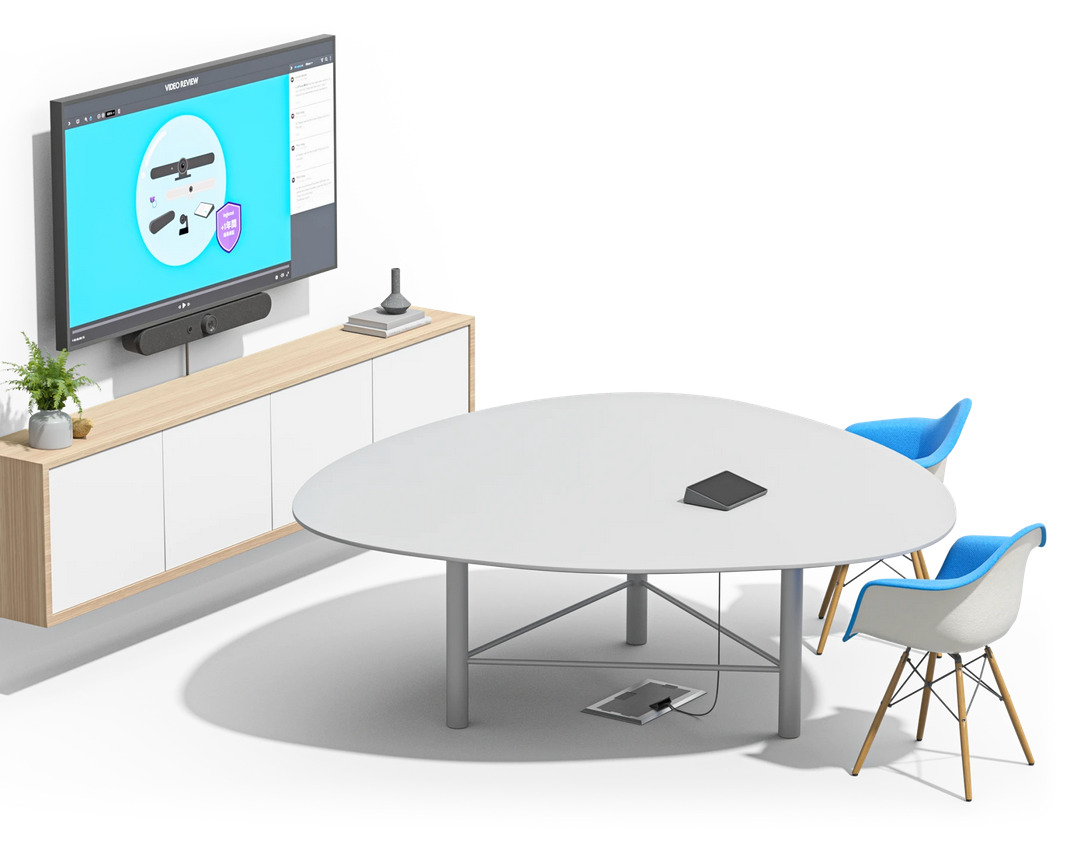

With a single Power over Ethernet cable, place Tap IP conveniently near room participants for a tidy and professional install.

Pairs well with partners

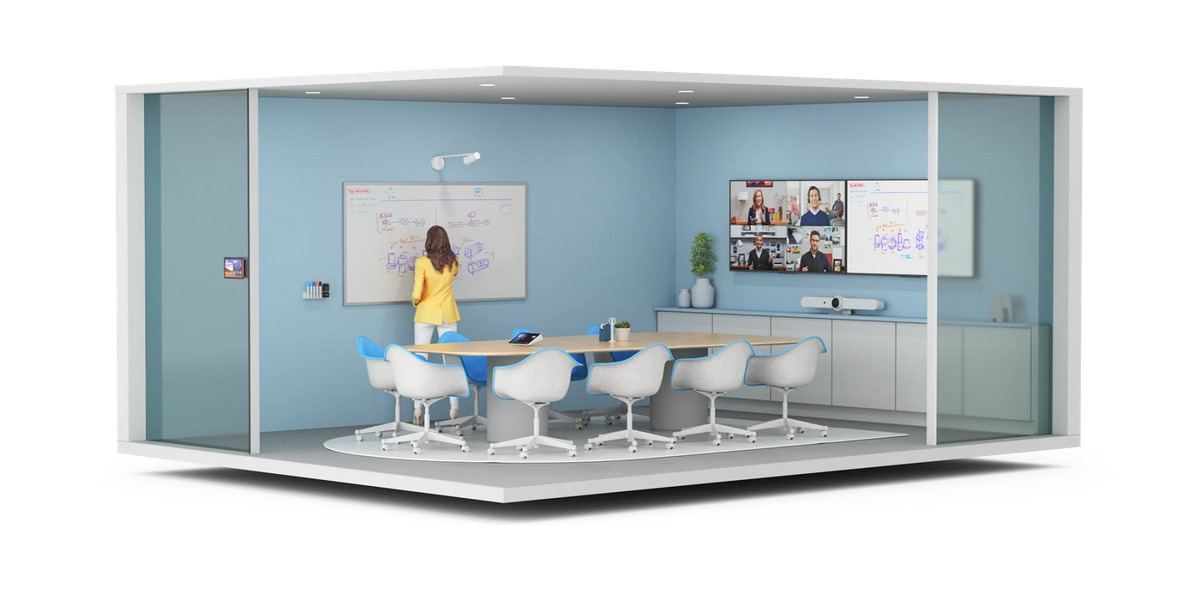

Enable easy and effective meetings for onsite and remote workers. Tap IP and the Logitech suite of room solutions integrate with leading video conferencing services for a seamless meeting experience.

Specifications for Logitech Rally Bar Mini

• DIMENSIONS

  Height: 91.4 mm

  Width: 719 mm

  Depth: 101 mm

  Lens Depth: 18.5 mm

  Weight: 4.03 kgs

• TECHNICAL SPECIFICATIONS

  Certifications & Compatibility

  • Certifications: Zoom Certified, Certified for Microsoft Teams as a USB device. Contact the manufacturer for additional information on pending and granted certifications.
  • Compatibility: Plug and play USB connectivity with virtually any video conferencing application
  • Appliance mode: Supports compatible video conferencing software in appliance mode (no PC required), including Zoom Rooms Appliances
  • Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms.

  GENERAL SPECIFICATIONS

  • Built-in Components: 6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
  • Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
  • Device Management: Logitech Sync
  • Displays Supported: 2
  • Display Resolution: 1080p
  • Network Protocol Support: IPv4, IPv6
  • Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

  Camera

  • Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
  • Pan: Motorized ±25°
  • Tilt: Motorized ±15°
  • Zoom: 4X HD digital zoom
  • Diagonal Field of View: 120°
  • Horizontal Field of View: 113°
  • Vertical Field of View: 80.7°
  • Total Room Coverage (field of view + pan and tilt): 163° horizontal x 110° vertical

  Woofer Speaker

  • Driver: 70 mm
  • Sensitivity: 92 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
  • Rated Power: 8W
  • THD: 1kHz <2% at 1W
  • Speaker Sampling Rate: 48KHz
  • Impedance: 4 Ohms

  Midrange Speakers

  • Drivers: 2 x 43 mm
  • Sensitivity: 84 dB SPL @ 1W/1M
  • Rated Power: 4W
  • THD: 1kHz <2% at 1W
  • Speaker Sampling Rate: 48KHz
  • Impedance: 4 Ohms

  Microphones

  • Frequency response: 90Hz – 16kHz
  • Sensitivity: >-36dBFS +/-1 dB @ 1Pa
  • Microphone data rate output: 48 kHz
  • Pickup Range: 4.5 m
  • Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
  • Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
  • Noise suppression: AI based de-noising algorithm
  • Add-on Mics: Supports up to 2 additional Rally Mic Pods

  RightSense™ Technologies

  • RightLight™: Renders natural skin tones for each participant
  • RightSight: Maintains persistent room awareness and detects human figures to auto-frame participants
  • RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

  Interfaces

  • HDMI Out: 2
  • HDMI In: 1
  • USB: 3x Type A, 1x Type C
  • Network: 10/100/1G Ethernet
  • WiFi: 802.11a/b/g/n/ac
  • External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
  • Remote Control: Bluetooth® Low Energy

  Power & Cables

  • Power supply: Auto-sensing
  • Operating Voltage/Power: 100-240V, 19V, 4.74A
  • Power Supply Dimensions: 127 mm x 51 mm x 30 mm
  • DC Cable: 1.5 m
  • AC Cable: 1 m
  • HDMI 1.4 Cable: 2 m
  • USB A to USB C 3.0 Cable: 2.2 m

  Environmental

  • Operating Temperature: 0 to 40°C
  • Storage Temperature: -40 to 70°C
  • Humidity: 10 to 95%
  • BTU/hr: 57 idle, 64 in meeting

  Security

  • Full Disk Encryption: AES-128
  • Data Encryption: Symmetric Keys, PKI
  • Device Identity: Protected by device attestation
  • Device Access: Authenticated using API
  • Key Protection: Arm TrustZone, RPMP

Specifications for Logitech Tap IP

Device
Total Height x Width x Depth
2.21 x 9.69 x 6.74 in
56.1 x 246.2 x 171.3 mm
1 .0 kg (2.2 lbs)

Touchscreen
10.1” diagonal screen
Display Angle: 14°
Viewing Angle: 85° (up/down/left/right)
Resolution: 1280 x 800
Display Type: IPS (In-Plane Switching)
LCD Panel with LED Backlighting
Capacitive, 10 points multi-touch
Brightness: 400 nits
Contrast: 1000:1
Anti Fingerprint: Oleophobic coating

Power & Ports
Power over Ethernet (PoE), IEEE 802.3af Type 1,
Class 3 device
Ethernet: 10/100mbps
WiFi: 802.11a/b/g/n/ac
Bluetooth 5.0

Interfaces
Internal cable retention and strain relief system
Integrated ultrasonic speaker
Integrated PIR Motion Sensor
Integrated accelerometer
Integrated ambient light sensor

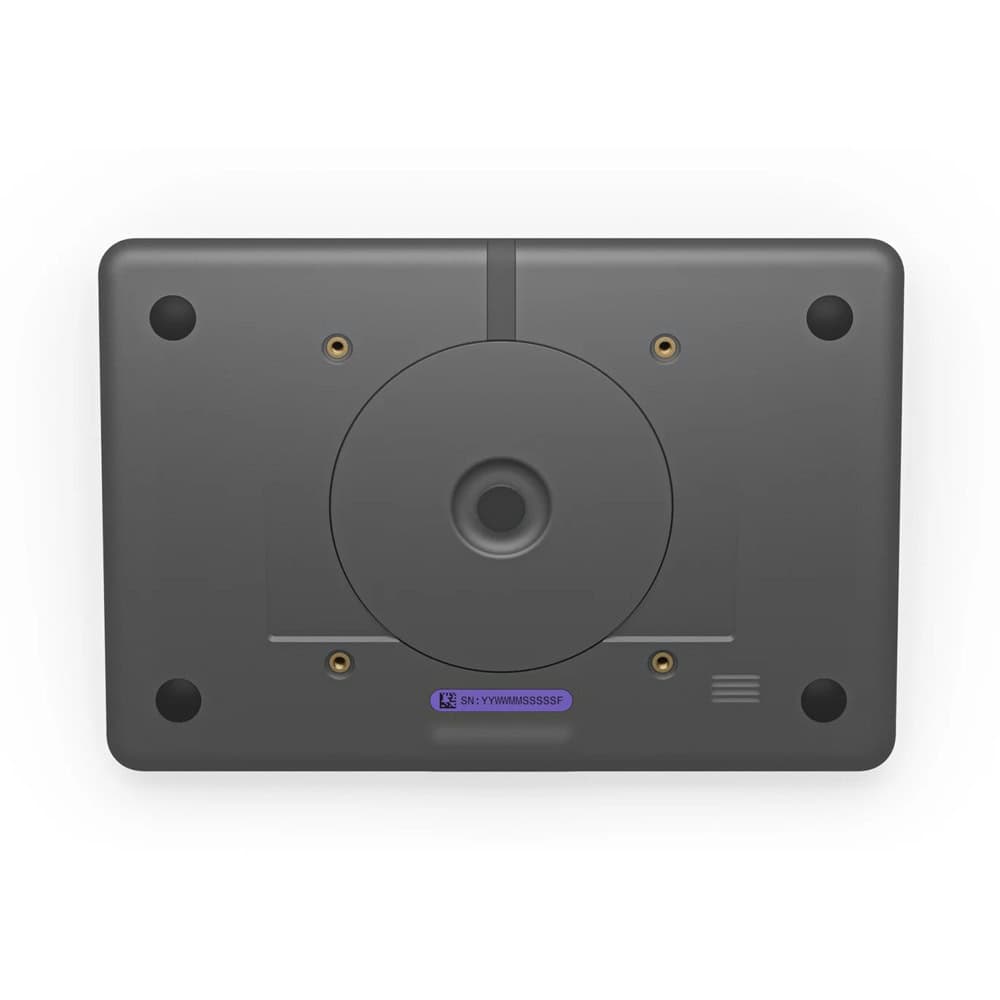

100mm x 100mm VESA FDMI
