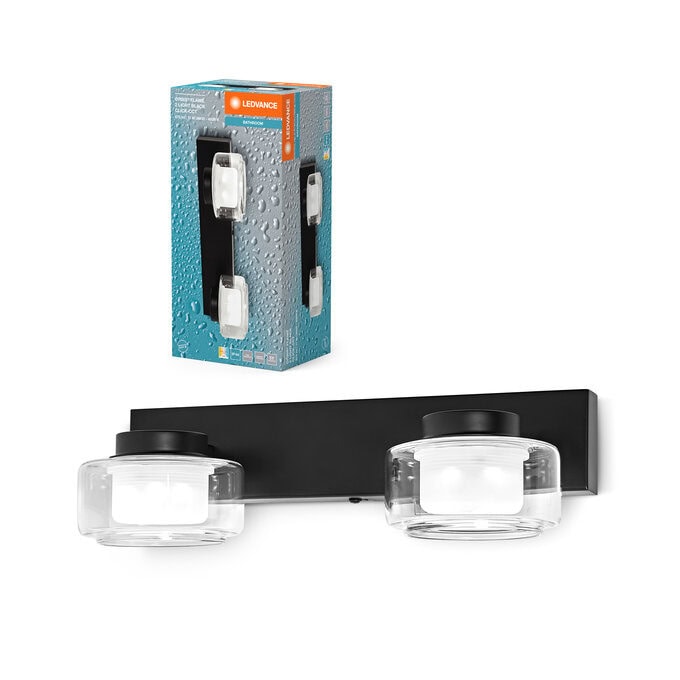

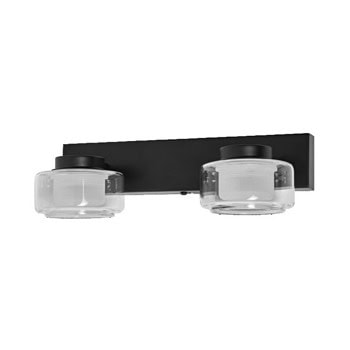

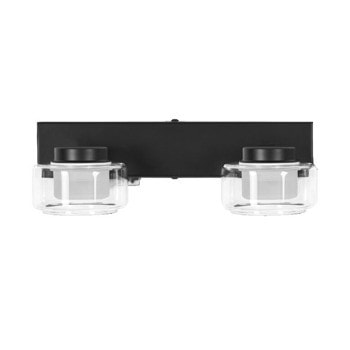

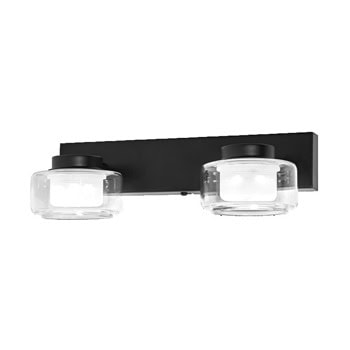

Ledvance Orbis Flame 2X5.5W Click CCT IP44 Black
Икона нов продукт
Ledvance Orbis Flame 2X5.5W Click CCT IP44 BlackLedvance Orbis Flame 2X5.5W Click CCT IP44 BlackLedvance Orbis Flame 2X5.5W Click CCT IP44 BlackLedvance Orbis Flame 2X5.5W Click CCT IP44 Black
ОписаниеХарактеристикиРевюта / Въпроси

Product benefits

  • Stylish and modern design
  • Easy to install and use
  • Highly versatile due to selectable CCT
  • Long lifetime thanks to LED technology



Areas of application

  • Indoor
  • Living areas (living rooms, dining rooms, bedrooms etc.)
  • Bathrooms (IP44)



Product features

  • Type of protection: IP44
  • Lifetime up to 30,000 h
  • Color temperature: 3,000 K (Warm White) or 4,000 K (Neutral White)
  • Click-CCT version: color temperature adjustable in two steps by repeated switching
  • Housing material: aluminum
  • Glass diffuser



Safety advice

  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.





Technical data



Electrical data

Nominal wattage11.00 W
Nominal voltage220…240 V
Mains frequency50…60 Hz
Nominal current63.000 mA
Inrush current0.063 A
Inrush current time Th50192 µs
Max. number of luminaires per miniature circuit breaker B16203
Max. number of luminaires per miniature circuit breaker C10126
Max. number of luminaires per miniature circuit breaker C16203
Power factor λ> 0.5
Total harmonic distortion68 %
Protection classII
Operating modeExternal LED driver



Photometrical data

Luminous flux700 lm
Total luminous flux of contained light sources870 lm
Luminous efficacy64 lm/W
Color temperature3000 … 4000 K
Reference control setting of contained light source (Kelvin)3000 K
Light color (designation)Warm White, Cool White
Color rendering index Ra> 80
Standard deviation of color matching≤6 sdcm
Flickering metric (Pst LM)≤1.0
Stroboscope effect metric (SVM)≤0.4
Photobiological safety group acc. to EN62778RG0
Photobiological safety group acc. to EN62471RG0
Beam angle115 °



Dimensions & Weight

Length300.00 mm
Height90.00 mm
Width130.00 mm
Product weight550.00 g



Materials & Colors

Product colorBlack
Housing colorBlack
Body materialMetal|Glass
Cover materialPolycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12650 °C
Mercury content0.0 mg



Application & Mounting

Ambient temperature range-20…+40 °C
Temperature range at storage-20…+80 °C
Type of connectionTerminal, 2-Pole (L, N)
Type of protectionIP44
Protection class IK (shock resistance)IK03
DimmableNo
Mounting typeSurface
Mounting locationWall
Application environmentIndoor
With light sourceYes
Replaceable light sourceNo



Lifespan

Lifespan L70/B50 at 25 °C30000 h 1)
Number of switching cycles15000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)




Certificates & Standards

StandardsCE, UKCA
Luminaire with limited surface temperature, "D sign"No
Replaceable light source (EPREL)Not replaceable



PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metalsContains at least 10 mg
Quantity of rare earthsContains at least 1 mg




    Виж още LED Жилищно осветление Ledvance
    Виж всички LED Жилищно осветление в категорията
    Технически характеристики
    Тип:  Аплик
    Монтаж:  Стена
    Влагозащитеност:  IP44 (Външна употреба)
    Мощност:  11 W
    Напрежение:  240 V
    Светлинен поток:  700 lm
    Цветна температура:  Регулируема (3000-4000K)
    Цвят на корпуса:  Черен
    Особеност:  Няма
