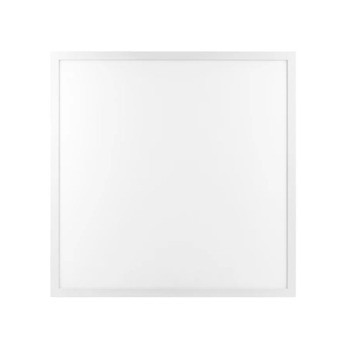

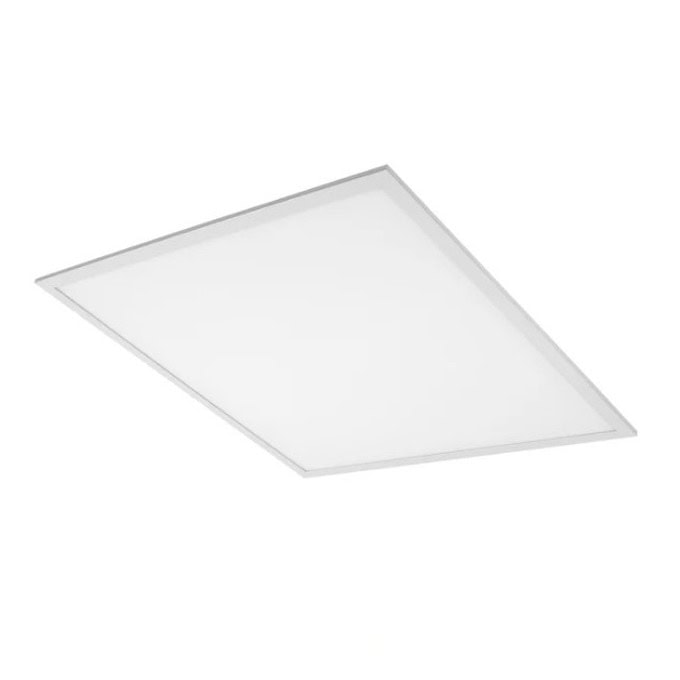

LED панели Ledvance ECO PANEL 600, 40W, 240V, 3400lm, 6500K, бяла рамка, защита (IP20), бели, 5бр.

Product features
Lifetime (L70/B50) up to 50,000 h (at 25 °C)
Extruded aluminum housing
Polystyrene diffuser

Product benefits
Low flicker light thanks to special electronic control gear
Energy savings thanks to system efficacy of up to 90 lm/W
Fast ceiling integration thanks to easy installation system

Areas of application
Direct replacement for luminaires with fluorescent lamps
Corridors
Offices
Conference rooms
Foyers
Reception areas
Elevators
Suitable for recessed ceiling systems with grid size of 600 x 600 mm

Technical data

Electrical data
Nominal wattage 40.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 1200.000 mA
Power factor λ > 0.90
Total harmonic distortion < 15 %
Protection class II
Operating mode Electronic control gear (ECG)

Photometrical data
Luminous flux 3400 lm
Luminous efficacy 85 lm/W
Color temperature 6500 K
Light color (designation) Cool Daylight
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 115 °
UGR < 22

Dimensions & Weight
Length 595.00 mm
Width 595.00 mm
Height 8.20 mm
Product weight 2200.00 g

Materials & Colors
Product color White
Housing color White
Body material Aluminum
Cover material Polystyrene (PS)
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg


Application & Mounting
Ambient temperature range -10…+45 °C
Type of connection Cable, 3-pole
Type of protection IP20
Protection class IK (shock resistance) IK02
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting length 580 mm
Mounting width 580 mm
Mounting depth 10,0 mm
With light source No
Replaceable light source No

Lifespan
Lifespan L70/B50 at 25 °C 50000 h 1)
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards
Standards CE
Replaceable light source (EPREL) Not replaceable
