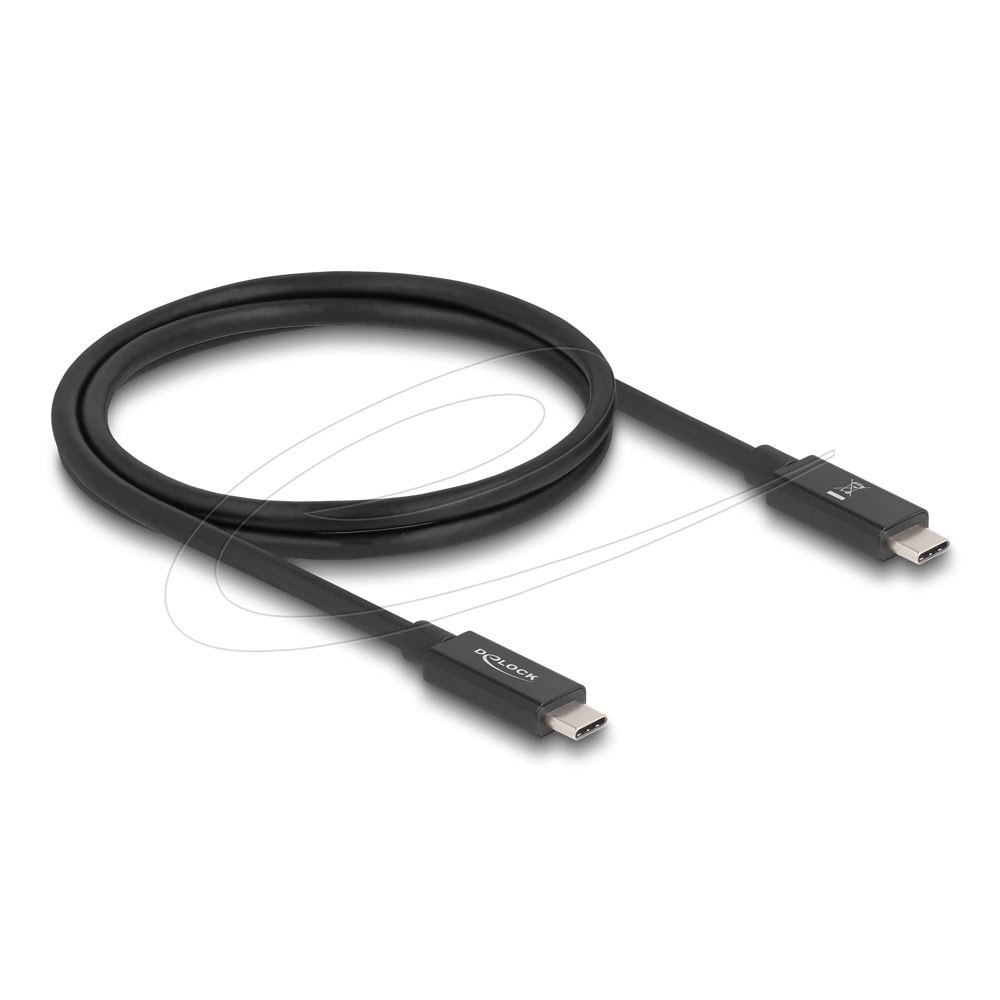

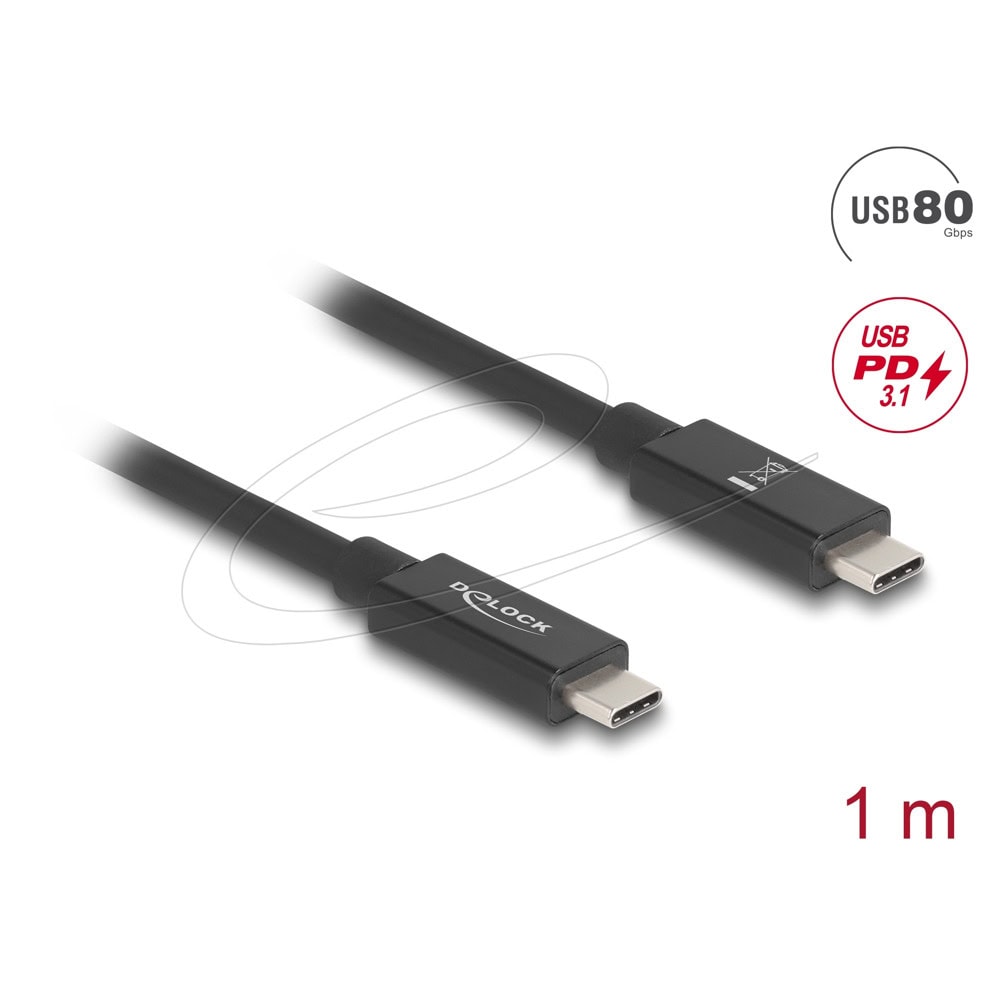

This USB cable by Delock enables the connection of various devices, such as smart phones, monitors, external enclosures and docking stations, via a USB Type-C, Thunderbolt 3 or Thunderbolt 4 port of a PC or laptop. The cable supports the transfer of USB as well as DisplayPort and PCI Express data.
USB 80 Gbps:
The cable enables data transfer rates up to 80 Gbps when connecting compatible devices. Of course, USB 3.0 or USB 2.0 devices can also be connected.

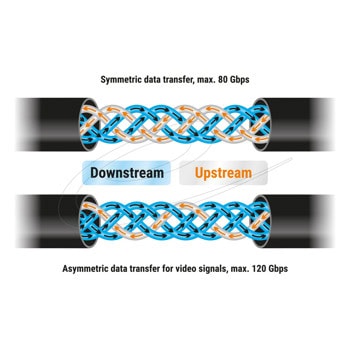

Asymmetric image transfer rate for monitors:
The Delock cable supports asymmetric data transfer for video signals with transfer rates of up to 120 Gbps downstream and 40 Gbps upstream. This also enables the connection of DisplayPort monitors with a screen resolution of up to 16K 60 Hz or 8K 120 Hz.
USB Power Delivery (USB PD 3.1) support up to 240 watt:
Support for the Extended Power Range resp. USB Power Delivery 3.1 standard means that connected devices can be supplied with power, up to 240 W (48 V / 5 A) is possible.
Technical details
Connectors: 2 x USB 80 Gbps USB Type-C male
Downwards compatible to USB 3.2, USB 2.0, Thunderbolt 4 and Thunderbolt 3
Chipset: E-Marker
Contacts gold-plated
Cable jacket material: TPE
Cable diameter: ca. 4.7 mm
Data transfer rate up to 80 Gbps
Supports asymmetric image transfer rate:
Downstream 120 Gbps
Upstream 40 Gbps
Display resolution up to:
15360 x 8640 @ 60 Hz
7680 x 4320 @ 120 Hz (depending on the system and the connected hardware)
Supports HDR10
Supports HDCP 2.2 and 2.3
Supports PCI Express 4.0 protocol
Supports DisplayPort 2.1 protocol
Dual channel, bi-directional data transfer
Supports Extended Power Range (EPR)
USB Power Delivery (USB PD 3.1) support up to 240 watt (48 V / 5 A)
Length incl. connectors: ca. 1 m
Виж още USB кабели DeLock
Виж всички USB кабели в категорията
USB 80 Gbps:
The cable enables data transfer rates up to 80 Gbps when connecting compatible devices. Of course, USB 3.0 or USB 2.0 devices can also be connected.
Asymmetric image transfer rate for monitors:
The Delock cable supports asymmetric data transfer for video signals with transfer rates of up to 120 Gbps downstream and 40 Gbps upstream. This also enables the connection of DisplayPort monitors with a screen resolution of up to 16K 60 Hz or 8K 120 Hz.
USB Power Delivery (USB PD 3.1) support up to 240 watt:
Support for the Extended Power Range resp. USB Power Delivery 3.1 standard means that connected devices can be supplied with power, up to 240 W (48 V / 5 A) is possible.
Technical details
Connectors: 2 x USB 80 Gbps USB Type-C male
Downwards compatible to USB 3.2, USB 2.0, Thunderbolt 4 and Thunderbolt 3
Chipset: E-Marker
Contacts gold-plated
Cable jacket material: TPE
Cable diameter: ca. 4.7 mm
Data transfer rate up to 80 Gbps
Supports asymmetric image transfer rate:
Downstream 120 Gbps
Upstream 40 Gbps
Display resolution up to:
15360 x 8640 @ 60 Hz
7680 x 4320 @ 120 Hz (depending on the system and the connected hardware)
Supports HDR10
Supports HDCP 2.2 and 2.3
Supports PCI Express 4.0 protocol
Supports DisplayPort 2.1 protocol
Dual channel, bi-directional data transfer
Supports Extended Power Range (EPR)
USB Power Delivery (USB PD 3.1) support up to 240 watt (48 V / 5 A)
Length incl. connectors: ca. 1 m
Виж още USB кабели DeLock
Виж всички USB кабели в категорията
Технически характеристики
| От какъв интерфейс: | USB C(м) |
|---|---|
| Към какъв интерфейс: | USB C(м) |
| Тип: | Кабел |
| Дължина: | 1 m |
