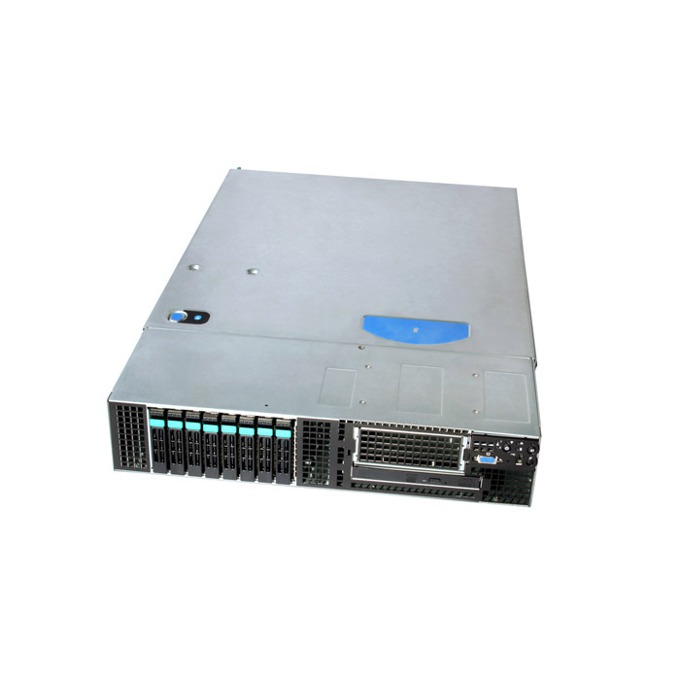

Server SR2625URLX, 12x DDR3 ECC, 8x 2.5" HDD, 2U Rack, поддържа Intel Xeon 5500. 6x SATA, 3г.

Chassis Form Factor 2U Rack
Socket LGA1366
Datasheet Link
System Board Intel® Server Board S5520UR
Board Chipset Intel® 5520 Chipset (Intel® 5520 I/O Hub)
Description Intel® Server System SR2625URLX, Full Redundant configuration, includes Intel® Server Board S5520UR
Power Supply 750 W
Power Supply Type AC
Redundant Fans Yes
Redundant Power Supported Supported, requires additional power supply
Heat Sink 2 BXSTS100P Included
Backplanes Included
Included Items
8 Drive carriers
1 Bridge board
1 Active butterfly riser
1 Active SAS midplane 2
1 SAS/SATA backplane
1 Redundant 750W power supply
1 Standard control panel
6 Redundant hotswap fans
2 Processor heatsink
1 Tape drive filler panel
1 Rack handle set (Pair)

of Front Drives Supported: 8
Front Drive Form Factor: Hot-swap 2.5"

Memory Specifications
Memory Types DDR3 ECC UDIMM, RDIMM

Graphics Specifications
Integrated Graphics: Yes

Expansion Options
PCIe x8 Gen 2.x - 5
IO Expansion x4 Gen 1.x - 1

I/O Specifications
# of USB Ports 5
Total # of SATA Ports 6
RAID Configuration Upgrade with AXXRAKSAS2 and AXXMINIDIMM512
# of Serial Ports 2
Integrated LAN Dual, GbE
Integrated SAS Ports 8

Package Specifications
Max CPU Configuration 2

Advanced Technologies
Intel® Remote Management Module Support AXXRMM3
Integrated BMC with IPMI IPMI 2.0
