Server INTEL R1304BTLSHBNR, 4xECC DDR3, 4x3.5" HDD, 4x SATA RAID, 2xGLAN1000, 3г. гаранция

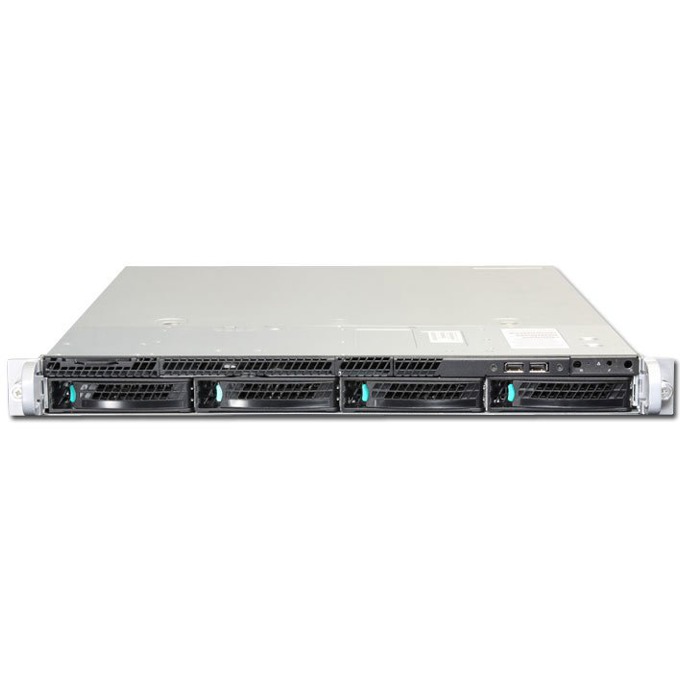

Intel® Server System R1304BTLSHBNR

Compatible Product Series Intel® Xeon® Processor E3-1200/E3-1200 V2 Family; Intel® Core™ i3 2100/i3-3200 Processor Series
Chassis Form Factor 1U Rack
Chassis Dimensions 17.24" x 21.8" x 1.75"
Board Form Factor ATX
Rack Rails Included No
Socket LGA1155
System Board Intel® Server Board S1200BTL
Board Chipset Intel® C204 Chipset (Intel® BD82C204 PCH)
Description A single socket Intel® Server Board S1200BTLR integrated into a 1U rack chassis, supporting four hot-swap HDDss, and a 350W non-redundant power supply.
Target Market Small Business/1st Server
Rack-Friendly Board Yes
Power Supply 350 W
Power Supply Type AC
# of Power Supply Included 1
Redundant Fans No
Redundant Power Supported No
Heat Sink 1
Heat Sink Included Yes
Backplanes Included
Included Items (1) Intel® Server Board S1200BTLR with Intel® C204 chipset, (4) 3.5" Hot-swap drive carriers, (1) Backplane, (1) 350W Fixed power supply, (1) Passive CPU heat sink, (3) Non-redundant non-hot-swap fans, (1) Riser with one PCIe* x8 wired slot (one x8 connector), (4) SATA cables, (1) Cable for Optical drive bay, (1) Rack handle set
# of Front Drives Supported 4
Front Drive Form Factor Hot-swap 2.5" or 3.5"

Memory Specifications

Memory Types DDR3 ECC UDIMM 1333, 1600
# of DIMMs 4
Max Memory Size (dependent on memory type) 32 GB

Graphics Specifications

Integrated Graphics ‡ Yes

Expansion Options

PCIe x8 Gen 2.x 1

I/O Specifications

# of USB Ports 9
Total # of SATA Ports 6
RAID Configuration Intel® RST 0, 1, 10, 5; ESRT2 0, 1, 10, optional 5
# of Serial Ports 2
Integrated LAN 2x 1GbE
# of LAN Ports 2
Optical Drive Support Yes
Firewire No
Integrated SAS Ports 0
Embedded USB (eUSB) Solid State Drive Option No
Integrated InfiniBand* No

Package Specifications

Max CPU Configuration 1

Advanced Technologies

Intel® Remote Management Module Support Yes
Integrated BMC with IPMI IPMI 2.0
TPM Version 1.2
Intel® Node Manager Yes
Intel® On-Demand Redundant Power No
Intel® Advanced Management Technology No
Intel® Server Customization Technology No
Intel® Build Assurance Technology No
Intel® Efficient Power Technology No
Intel® Quiet Thermal Technology No
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® Matrix Storage Technology No
Intel® Rapid Storage Technology Yes
Intel® Rapid Storage Technology enterprise No
