Server INTEL P4308CP4MHGC, 16x ECC DDR3, 8x 3.5" HDD, 8x SATA RAID, 4xLAN1000, 3г. гаранция

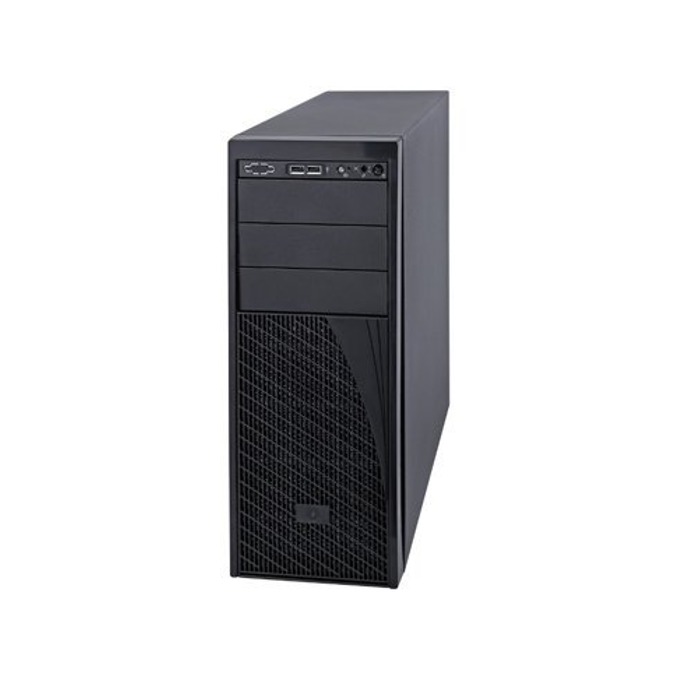

Intel® Server System P4308CP4MHGC

Compatible Product Series Intel® Xeon® Processor E5-2600 Product Family & Intel® Xeon® Processor E5-2600 v2 Product Family
Chassis Form Factor 4U Pedestal
Chassis Dimensions 17.24" x 24.9" x 6.81"
Board Form Factor 12" x 13"
Rack Rails Included No
Socket Socket R
System Board Intel® Server Board S2600CP4
Board Chipset Intel® C602 Chipset (Intel® BD82C602 PCH)
Description Integrated Mainstream dual socket Intel® Server Board S2600CP4 in a 4U pedestal chassis, supporting eight 3.5" hot-swap drives, quad 1 GbE LAN, 16 DIMMs, two 750W redundant power supplies, Redundant cooling and Intel® RAID C600 Upgrade Key RKSATA8.
Target Market Small and Medium Business
Rack-Friendly Board Yes
Power Supply 750 W
Power Supply Type AC
# of Power Supply Included 2
Redundant Fans Yes
Redundant Power Supported Yes
Heat Sink 2
Heat Sink Included Yes
Backplanes Included
Included Items (1) Intel® Server Board S2600CP4,(8) 3.5" Hot-swap drive carriers, (1) Backplane, (2) 750W Redundant power supplies,(2) Tower passive CPU heat sinks, Redundant cooling fans, (1) Air duct, (1) Intel® RAID C600 Upgrade Key RKSATA8
# of Front Drives Supported 8
Front Drive Form Factor Hot-swap 2.5" or 3.5"

Memory Specifications

Memory Types DDR3 ECC UDIMM 1333, 1600/ RDIMM 1066,1333,1600,1866/ LRDIMM 1333, 1600, 1866
# of DIMMs 16
Max Memory Size (dependent on memory type) 512 GB

Graphics Specifications

Integrated Graphics ‡ Yes

Expansion Options

PCIe x8 Gen 3 5
PCIe x16 Gen 3 1

I/O Specifications

# of USB Ports 5
Total # of SATA Ports 14
RAID Configuration Software RAID 1,0,10 optional 5
# of Serial Ports 2
Integrated LAN 4x 1GbE
# of LAN Ports 4
Optical Drive Support Yes
Firewire Yes
Integrated SAS Ports 8
Embedded USB (eUSB) Solid State Drive Option Yes
Integrated InfiniBand* No

Package Specifications

Max CPU Configuration 2

Advanced Technologies

Intel® Remote Management Module Support Yes
Integrated BMC with IPMI IPMI 2.0
TPM Version 1.2
Intel® Node Manager Yes
Intel® On-Demand Redundant Power Yes
Intel® Advanced Management Technology Yes
Intel® Server Customization Technology Yes
Intel® Build Assurance Technology Yes
Intel® Efficient Power Technology Yes
Intel® Quiet Thermal Technology Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® Matrix Storage Technology No
Intel® Rapid Storage Technology No
Intel® Rapid Storage Technology enterprise Yes
