Server INTEL P4304BTSSFCNR, 4x ECC DDR3, 6x SATA RAID, 2x LAN1000, 3г. гаранция

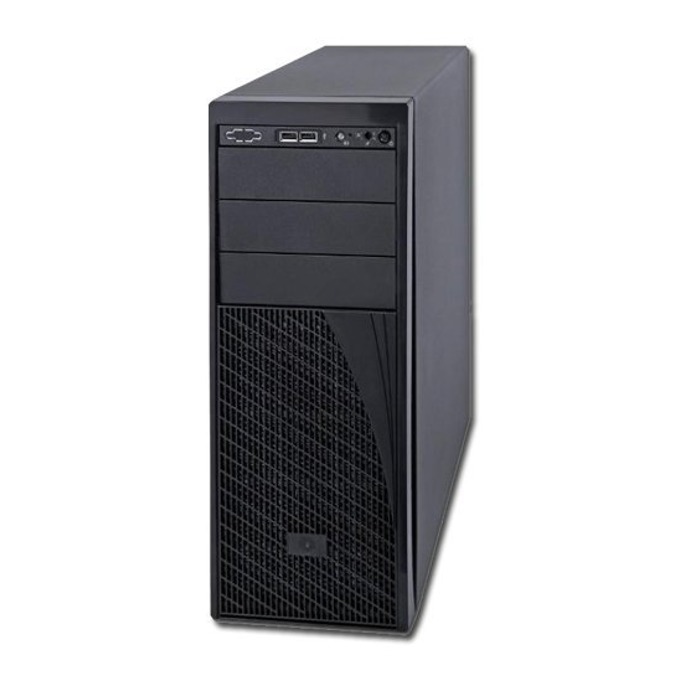

Intel® Server System P4304BTSSFCNR

Limited 3-year Warranty Yes
Extended Warranty Available for Purchase (Select Countries) Yes
Compatible Product Series Intel® Xeon® Processor E3-1200/E3-1200 V2 Family; Intel® Core™ i3 2100/i3-3200 Processor Series
Chassis Form Factor 4U Pedestal
Chassis Dimensions 17.24" x 21.5" x 6.9"
Board Form Factor microATX
Rack Rails Included No
Socket LGA1155
System Board Intel® Server Board S1200BTS
Board Chipset Intel® C202 Chipset (Intel® BD82C202 PCH)
Description A single socket Intel® Server Board S1200BTSR integrated into a pedestal chassis, supporting four 3.5" fixed HDDss, and a 365W non-redundant power supply.
Target Market Small and Medium Business
Rack-Friendly Board Yes
Power Supply 365 W
Power Supply Type AC
# of Power Supply Included 1
Redundant Fans No
Redundant Power Supported No
Heat Sink 1
Heat Sink Included Sold Separately
Backplanes No
Included Items (1) Intel® Server Board S1200BTSR with Intel® C202 chipset, (4) Fixed 3.5” drive carriers, (1) 365W Fixed power supply, (1) Rear chassis fan, (4) SATA cables
# of Front Drives Supported 4
Front Drive Form Factor Fixed 2.5" or 3.5"

Memory Specifications

Memory Types DDR3 ECC UDIMM 1333, 1600
# of DIMMs 4
Max Memory Size (dependent on memory type) 32 GB

Graphics Specifications

Integrated Graphics ‡ Yes

Expansion Options

PCI 32/33 1
PCIe x4 Gen 2.x 1
PCIe x8 Gen 2.x 1
PCIe x16 Gen 2.x 1

I/O Specifications

# of USB Ports 7
Total # of SATA Ports 6
RAID Configuration Intel® RST 0, 1, 10, 5; ESRT2 0, 1, 10, optional 5
# of Serial Ports 2
Integrated LAN 2x 1GbE
# of LAN Ports 2
Optical Drive Support No
Firewire No
Integrated SAS Ports 0
Embedded USB (eUSB) Solid State Drive Option No
Integrated InfiniBand* No

Package Specifications

Max CPU Configuration 1

Advanced Technologies

Intel® Remote Management Module Support No
Integrated BMC with IPMI No
TPM Version 1.2
Intel® Node Manager No
Intel® On-Demand Redundant Power No
Intel® Advanced Management Technology No
Intel® Server Customization Technology No
Intel® Build Assurance Technology No
Intel® Efficient Power Technology No
Intel® Quiet Thermal Technology No
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® Matrix Storage Technology No
Intel® Rapid Storage Technology Yes
Intel® Rapid Storage Technology enterprise No
