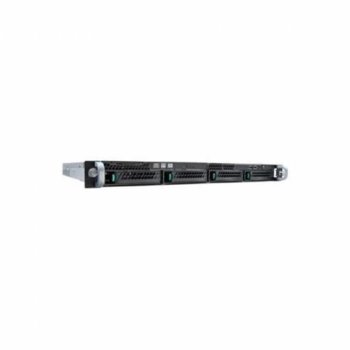

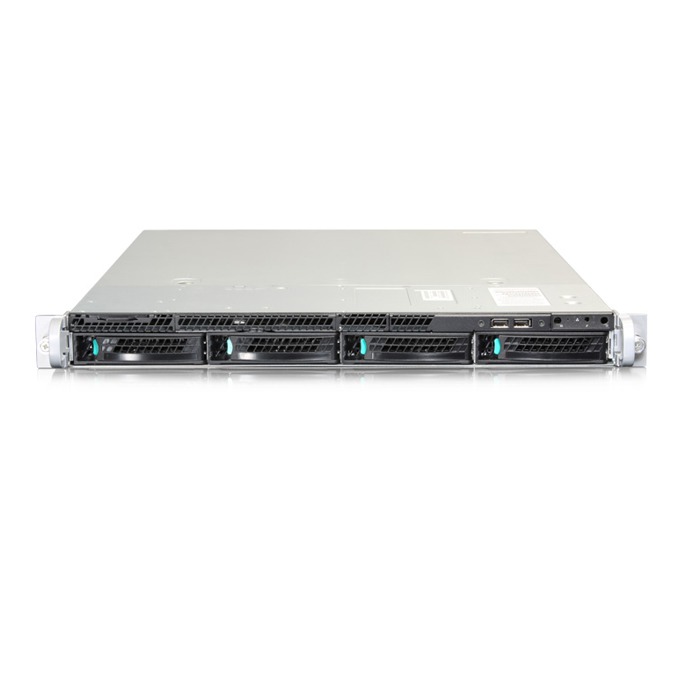

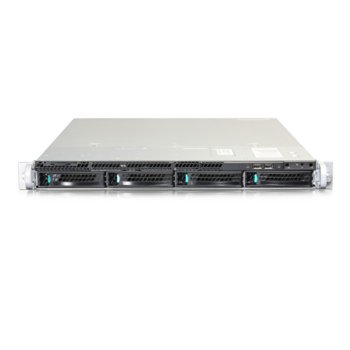

Server Intel R1304BTLSHBN, 4x DDR3 ECC, 4x 3.5" HDD, 1U Rack, поддържа Intel Xeon E3-1200 & Intel Core i3-3200 серия, 6x SATA RAID (0,1,10,5), 2x Lan 1000, 3г. гаранция

Описание
Intel® Server System R1304BTLSHBN

• Chassis Form Factor
1U Rack

• Chassis Dimensions
17.24 x 21.8 x 1.75

• Socket
LGA1155

• Target Market
Small and Medium Business

• Power Supply
350W power supply

• Power Supply Type
AC

• Heat Sink Included
Included

• Backplanes
4 port SAS/SATA

• Included Items
1 x 4-port passive SATA backplane;
4 x Hotswap drive sleds;
3 x Non-redundant/non-hotswap fans;
1 x Full-height riser with one PCI Express 2.0 x8 wired slot (one x16 connector);
1 x 350W power supply;
1 x Cable for optical drive bay;
1 x Processor heatsink;
2 x Chassis front handles in the box (ears)

• # of 2.5" Hard Drives
4

• 2.5" Hard Drive Support
Supports up to four hot-swap 2.5" SAS/SATA drives

• # of 3.5" Hard Drives
4

• 3.5" Hard Drive Support
Supports up to four hot-swap 3.5" SAS/SATA drives

• Intel® Server Management Software
Yes

• Memory Specifications
Memory Types DDR3 ECC UDIMM
# of DIMMs 4
Max Memory Size (dependent on memory type) 32 GB

• Graphics Specifications
Integrated Graphics Yes

• Expansion Options
PCIe x8 Gen 2.x 1

• I/O Specifications
# of USB Ports 9
# of SATA Ports 6
RAID Configuration Intel(R) RST (0, 1, 10, 5)
# of Serial Ports 2
Integrated LAN Dual, GbE
# of LAN Ports 2

• Package Specifications
Max CPU Configuration 1

• Advanced Technologies
Intel® Remote Management Module Support AXXRMM4 or AXXRMM4LITE
Integrated BMC with IPMI IPMI 2.0
Intel® Intelligent Power Node Manager Yes
