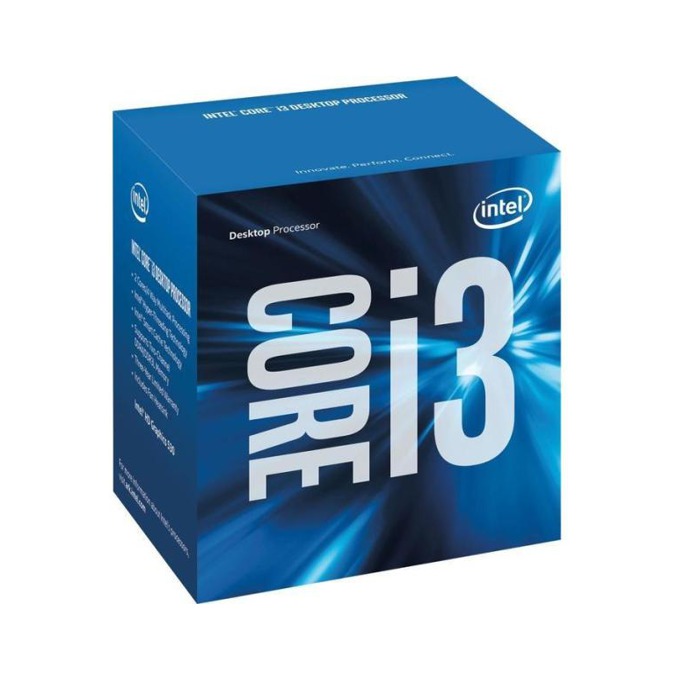

Intel Core i3-6300 дву-ядрен (3.8 GHz, 4MB Cache, 350MHz-1.15GHz GPU, LGA1151) BOX

Intel® Core™ i3-6300 (4M Cache, 3.80 GHz)

Specifications

Processor Number: i3-6300
Intel® Smart Cache: 4 MB
DMI3: 8 GT/s
Instruction Set: 64-bit
Instruction Set Extensions: SSE4.1/4.2, AVX 2.0
Embedded Options Available: No
Lithography: 14 nm
Scalability: 1S Only
Thermal Solution Specification: PCG 2015C (65W)

Performance
# of Cores: 2
# of Threads: 4
Processor Base Frequency: 3.8 GHz
TDP: 51 W

Memory Specifications
Max Memory Size (dependent on memory type): 64 GB
Memory Types: DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels: 2
Max Memory Bandwidth: 34.1 GB/s
ECC Memory Supported : Yes

Graphics Specifications

Processor Graphics: Intel® HD Graphics 530
Graphics Base Frequency: 350 MHz
Graphics Max Dynamic Frequency: 1.15 GHz
Graphics Video Max Memory: 1.7 GB
Graphics Output: eDP/DP/HDMI/DVI
4K Support: Yes, at 60Hz
Max Resolution: (Intel® WiDi)‡ 1080p
Max Resolution: (HDMI 1.4)‡ 4096x2304@24Hz
Max Resolution: (DP)‡ 4096x2304@60Hz
Max Resolution: (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz
Max Resolution: (VGA)‡ N/A
DirectX* Support: 12
OpenGL* Support: 4.4
Intel® Quick Sync Video: Yes
Intel® InTru™ 3D Technology: Yes
Intel® Insider™: Yes
Intel® Wireless Display: Yes
Intel® Clear Video HD Technology: Yes
Intel® Clear Video Technology: Yes
# of Displays Supported ‡: 3
Device ID: 0x1912


Expansion Options
PCI Express Revision: 3.0
PCI Express Configurations: Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes: 16

Package Specifications
Max CPU Configuration: 1
Package Size: 37.5mm x 37.5mm
Graphics and IMC Lithography: 14 nm
Sockets Supported: FCLGA1151
Low Halogen Options Available: See MDDS


Advanced Technologies

Intel® Hyper-Threading Technology ‡ Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® 64 ‡ Yes
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology ‡ Yes
Intel® Small Business Advantage Yes

Intel® Data Protection Technology

Intel® AES New Instructions: Yes
Secure Key: Yes


Intel® Platform Protection Technology
OS Guard: Yes
Execute Disable Bit: Yes
