Усилвател iFi iDSD Diablo-X, USB-A, Coaxial, 6.3mm жак за слушалки, черен

iFi iDSD Diablo-X





eXperience innovation

The very first DAC/amp in the world to drive xMEMS technology



eXceptional

The Diablo-X is the first DAC/amp on the market to support the revolutionary xMEMS‘ solid state monolithic speaker technology.

This unique technology features:

• Ultra-fast mechanical response (~15µsec; 150x faster than a typical dynamic driver)
• Flat 2° phase response for more accurate sound reproduction
• +/- 1° phase matching (part-to-part) for more accurate spatial sound
• Silicon speaker diaphragm (95x more stiff/rigid than plastic) for reduce speaker break-up (less muddy mids/highs)

Brian Lucey, 8-time Grammy Winning Mastery Engineer, calls it “truly disruptive’ with “phase performance unlike no other speaker technology”.  Discover why in 3 minutes.

This level of performance requires a higher voltage solution to drive it, so iFi have partnered with XMEMs to produce the Diablo-X – a first to drive a first!

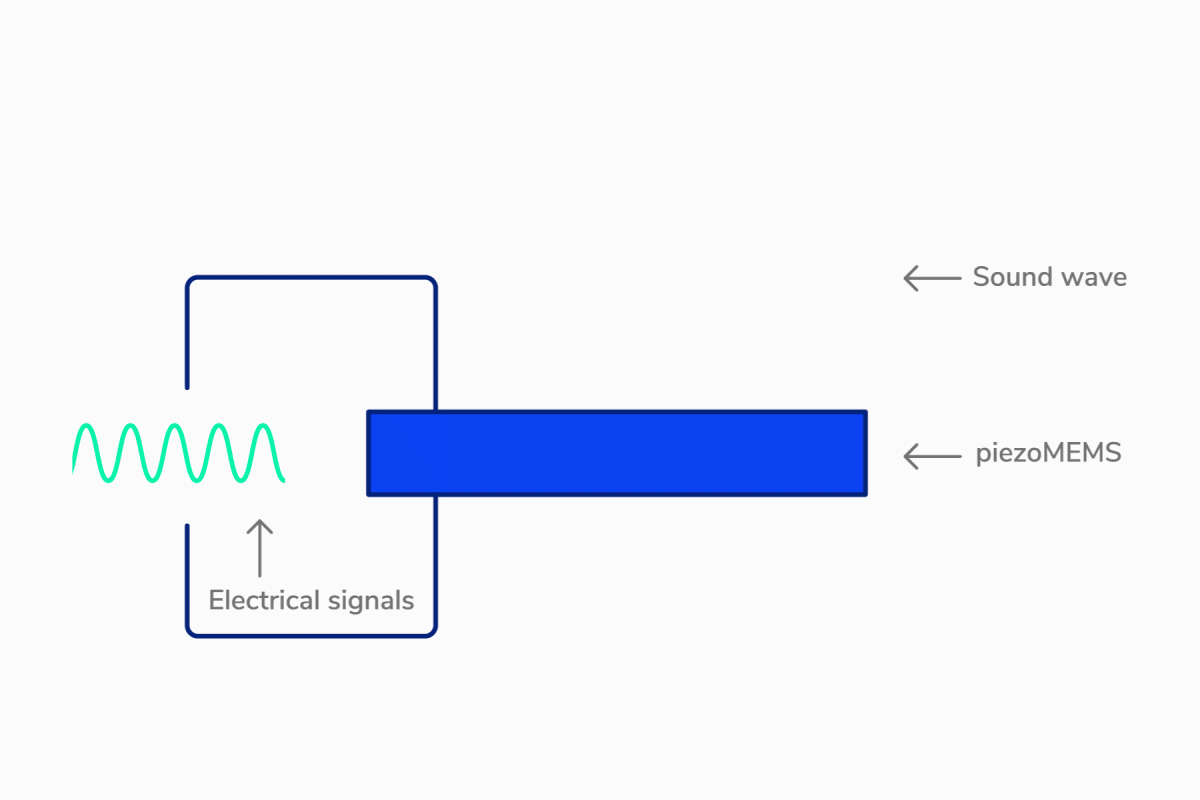

xMEMS eXplained   The xMEMS micro speaker technology uses the piezoelectric effect to create a paper-thin solid-state speaker. These micro-speakers offer great potential to push the boundaries of IEM and headphone performance. As xMEMS themselves say, “The inverse piezoelectric effect is created by applying electrical voltage to make the piezoMEMS contract or expand, converting electrical energy to mechanical energy. This energy excites an integrated silicon membrane to move air and generate acoustic sound waves…. xMEMS’ piezoMEMs actuators offer an increased range of movement enabling rich, loud audio”.





Still devilishly delightful…

The Diablo-X can still also be used with your favourite IEMs/headphones and, just like the original, uses two Burr-Brown DAC chips and the 16-core XMOS chip to process the data received via the USB and S/PDIF digital inputs. This means the Diablo-X can handle up to PCM 768, DSD 512, 2xDXD. Both PCM and DSD remain ‘bit-perfect’. It provides full MQA decoding.

Balanced, differential analogue circuit design reduces noise and cross-talk within the signal path by fully separating the left and right channels. The Diablo-X includes our PureWave tech – refinements to our balanced, symmetrical dual-mono topologies with short, direct signal paths.

Negative feedback is used in amplifier circuits to compare the output signal with the input signal and correct errors. BUT there are drawbacks. iFi turns the negatives into positives with OptimaLoop. Read more below.

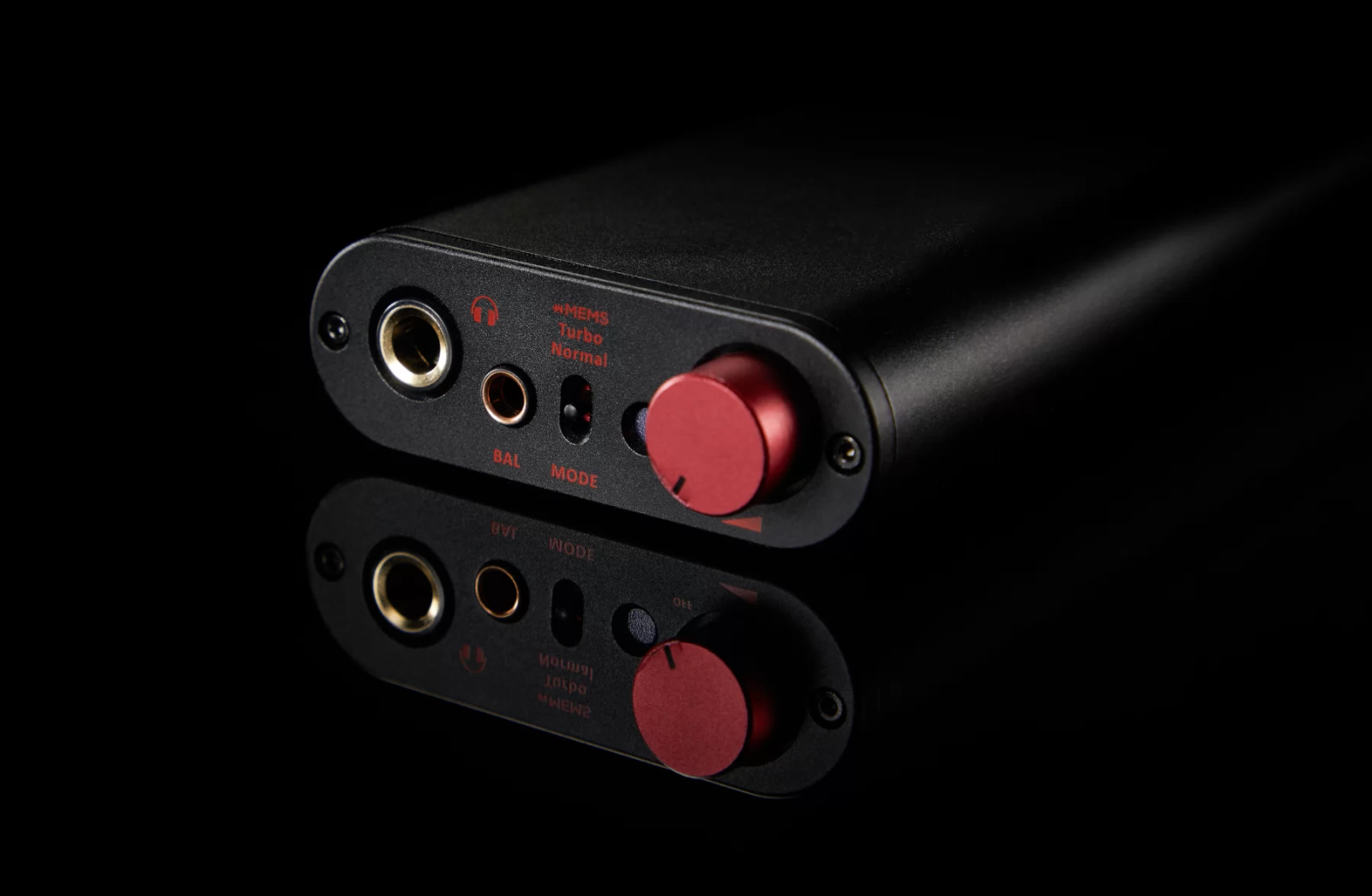

…and diabolically driven. Able to drive all manner of headphones with ease, including those incorporating the new XMEMs tech, the Diablo-X sports fully balanced 4.4mm outputs with 4,100mW of power. Three modes are used to adjust power and gain.   xMEMS – use with compatible IEMs/headphones Turbo – ramps up the level of drive for current-hungry headphones Normal – for most over or on ear headphones



Unrivalled components

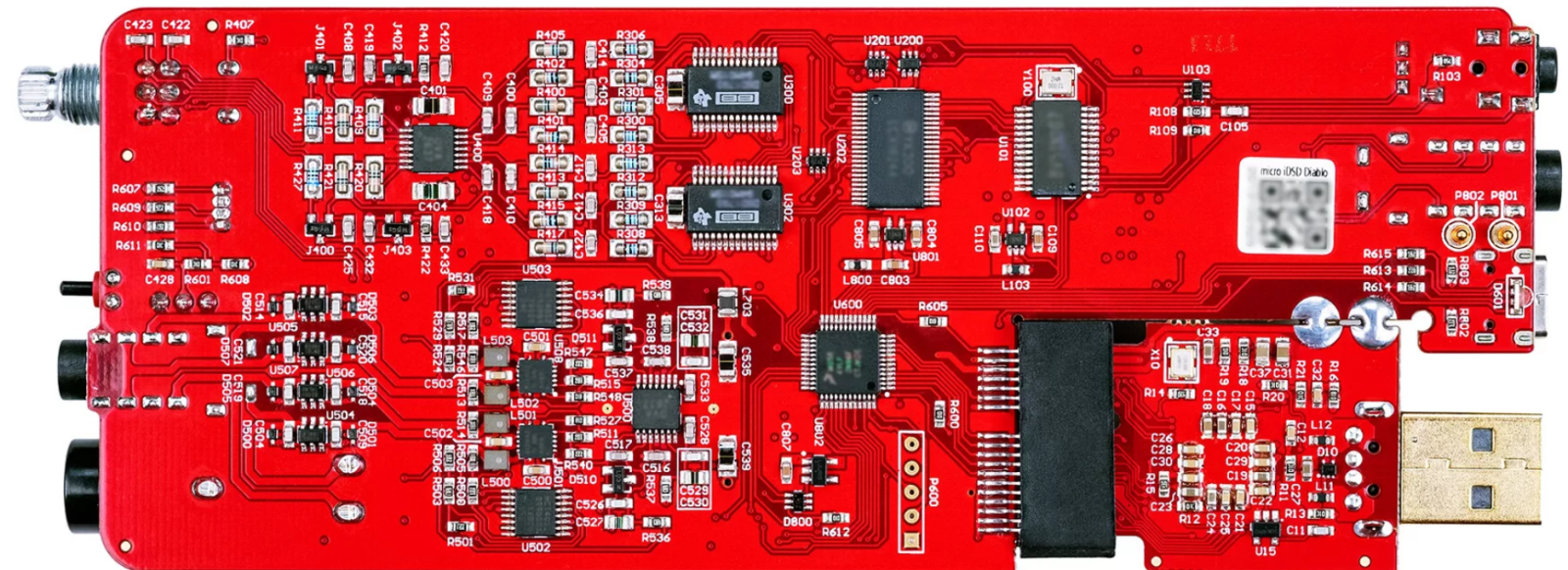

High-bandwidth power supply circuitry is dedicated to each critical part of the Diablo-X’s design, with independent linear regulation delivering excellent PSRR (Power Supply Rejection Ratio) performance.

The headphone amp stage eschews IC regulators in favour of Panasonic OS-CON capacitors, delivering 2320uF between them.

The DAC section benefits from an ultra-low-noise regulator with additional passive filtering, reducing high order harmonic distortion and, in turn, jitter.

Even the USB input stage benefits from dedicated regulation and multi-stage filtering, and the microprocessor control circuitry (often a local source of digital noise) has separate regulation, too.

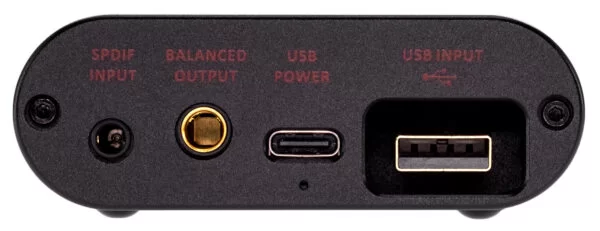

The devil is in the detail   Whether you are using your favourite IEMs/headphones or a pair of xMEMS compatible IEMs, the Diablo-X connections have you covered. At the front of the unit, alongside a standard 6.3mm single-ended headphone socket, resides a 4.4mm Balanced output for headphones offering balanced connection. At the back are two digital audio inputs: USB-A and a S/PDIF socket that accepts both electrical and optical signals, the former via a 3.5mm connector and the latter via a supplied adapter. The USB-A input features a ‘male’ connector, rather than a typical ‘female’ port for greater mechanical integrity.  A separate USB-C charging port is also provided, along with a 4.4mm Balanced output to connect to an external amp.





Tech specs

Digital Inputs		USB 3.0 type 'A' (USB2.0 compatible) S-PDIF (3.5mm coaxial/optical)
Formats supported		DSD512/22.6MHz PCM 768kHz MOA Full Decoder
DAC		Bit-Perfect DSD & DXD DAC by Burr Brown
Frequency Response		10Hz-80kHz(-3dB)
SNR	Balanced UnBAL	-120dB -1140B
Dynamic range	Balanced UnBAL	-120dB -114dB
THD + N	Balanced UnBAL	0.002% 0.001%
Headphone Max Output	Balanced UnBAL	>28Vpp (@ xMEMS) >19.2V/611 mW (@ 600 Ω) >12.6V/4,980 mW (@ 32 Ω) >9.6V/153 mW (@ 600 Ω) >8.8V/2,417 mW (@ 32 Ω)
Fixed Audio Output		Balanced 4.4mm
Power consumption	XMEMS Turbo Normal	8W 12W 5W
Battery		Lithium-polymer 4800mAh approx.
Power System		Charging via USB-C BC V1.2 compliant up to 1000mA charging current
Dimensions		166 × 72 × 25 mm
Net weight		330g
