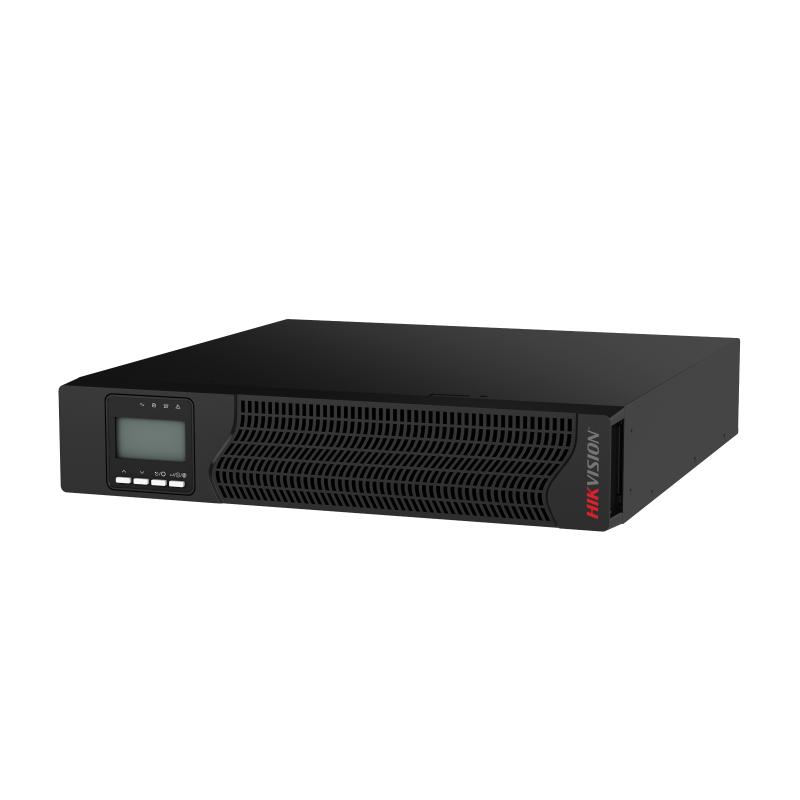

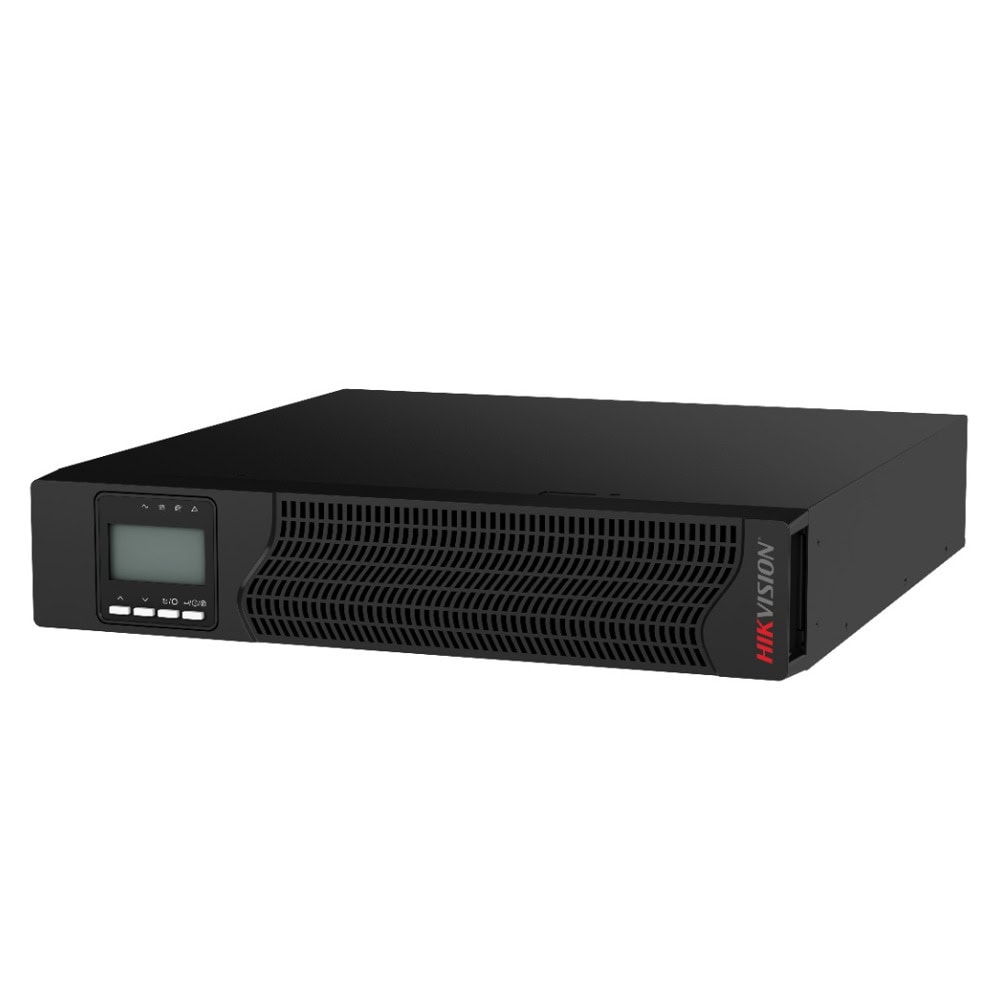

Hikvision DS-UPS01K24-R/TJS
- Double conversion on-line design with input power factor correction (PFC) technology, achieving an input power factor of up to 0.99.
- Digital control system for enhanced stability and reliability.
- ECO operation mode for improved energy efficiency and reduced user costs.
- Three-stage charging: constant current charging, constant voltage charging, and floating charging stages are intelligently managed.
- Wide voltage input and frequency range for stable operation with different electrical scenario, and suit with various fuel generators.
- Comprehensive protections including output overload, output short-circuit, over-temperature, battery under-voltage warning, battery over-charging protection, and power-on self-diagnostic function;
.jpeg)
| Category | Specification |
|---|---|
| Power | UPS Capacity: 1000 VA / 900 W |
| Input | Input Voltage Range: 110300Vac (176264Vac @ 100% load) |
| Input Frequency: 40~70Hz (50/60Hz Auto-Sensing) | |
| Nominal Voltage: 208/220/230/240Vac | |
| Phase: Single Phase | |
| Power Factor: ≥0.99 | |
| Output | Output Frequency: Online mode: 4654Hz or 5664HzBat. Mode: (50/60 ±0.1%)Hz |
| Transfer Time: AC to Battery: 0msInverter to Bypass: 4ms (Typical) | |
| Output Voltage: 208/220/230/240Vac | |
| Power Factor: 0.9 | |
| Output Sockets: IEC panel / EU panel / UK panel / US panel (Optional) | |
| Crest Factor: 3:1 | |
| Harmonic Distortion (THDv): ≤3% Linear load≤5% Non-linear load | |
| Output Waveform: Pure Sinewave | |
| Battery | Battery Type: Valve Regulated Lead Acid (VRLA) |
| Typical Recharging Time: 4 hours (To 90% capacity) | |
| Capacity (Standard Unit): 12V / 9Ah | |
| Battery Number: 2 | |
| DC System Voltage: 24V | |
| Charging Current (Max.): 1A | |
| Expandable Runtime: Yes, with External battery pack (DS-UPSB0924B-R/TJC) | |
| Indicator | Alarm: Battery mode / Battery low voltage / Overload / Fault |
| LCD Display: Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Inner temperature, Remaining battery backup time | |
| Efficiency | AC Mode: 89%Battery Mode: 85% |
| Environment | Operating Temperature: 0°C ~ 40°C |
| Storage Temperature: -25°C ~ 55°C | |
| Humidity Range: 2095% RH @ 040°C (Non-condensing) | |
| Altitude: <1500m (Derating required >1500m) | |
| Noise Level: <50dB at 1 meter | |
| Physical | Dimensions (W x D x H): 440 x 460 x 86.5 mm |
| Net Weight: 11.3 kg |
Виж още UPS Hikvision
Виж всички UPS в категорията
Технически характеристики
| Изходяща мощност: | 1000 VA |
|---|---|
| Тип: | ON Line |
| Формфактор: | Rack |
