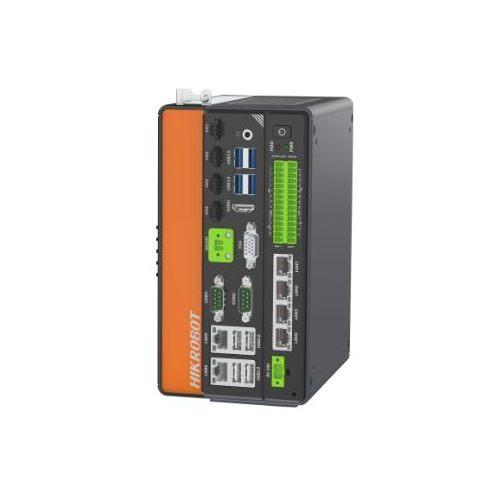

Name: HIKROBOT MV-VC3202X-128G60 :: Vision индустриален PC, 128 GB SSD + 2 TB HDD, 8 GB RAM, G7400 CPU, mSATA×1, Win10 x64
Brand: HIKROBOT
Availability: OutOfStock

Описание

Model	Model	MV-VC3202X-128G60
Model	Name	VC3000X visual controller, G7400, 8GB+128G SSD+2T HDD, no POE, support PCIE expansion;
Performance	Processor	Intel@ Core 12th CeleronTM G7400@ LGA1700 type CPU.Max.65W TDP
	Memory	8GB
	Storage	128G SSD and 2T HDD, 1 mSATA expansion interface; 128G SSD and 2T HDD, 1 mSATA expansion interface
	Graphics processor	Intel® HD Graphics 710
	Operating system	Windows 10, not activated
Encryption	Encryption method	None
External interface	Video output	1 HDMI port, 1 VGA port Support simultaneous independent display output HDMI port supports up to 1920 × 1080 @60Hz, VGA port supports up to 1920 × 1440 @60Hz
	Digital I/O	Support 8-way optocoupler isolation input Support 16-way optocoupler isolation output (support NPN/PNP switching)
	Network interface	6 Gigabit Ethernet ports, including 2 Intel Gigabit Ethernet ports and 4 Netcom Gigabit Ethernet ports
	USB interface	4 USB2.0 interfaces 4 USB3.0 interfaces
	Serial port	2-way full-function RS-232, support RS-485 and RS-422 switching
	Light source interface	4-way 24 V constant voltage light source driver, single-channel maximum power consumption 72 W, four-channel maximum power consumption 80 W
Electrical Characteristics	Power Supply	24 VDC
Electrical Characteristics	Typical Power Consumption	144 W
Structure	Dimensions	161.4 mm × 208.5 mm × 105.5 mm
	Weight	Approx. 2.1 kg
	Temperature	0 ~ 50 °C
	Humidity	20%~95% RH without condensation
General Specifications	Certification	CE, KC
