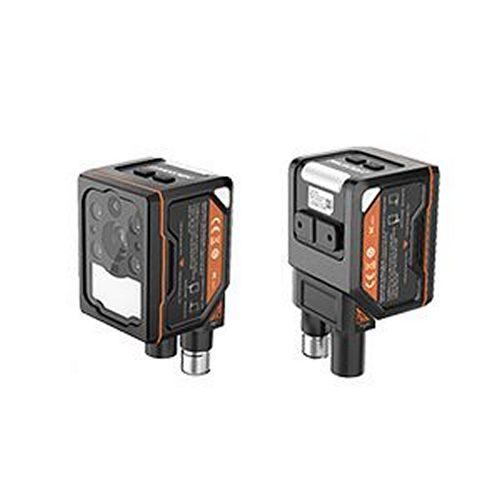

Name: HIKROBOT MV-SC3013XM-12M-WBN :: Smart Machine-Vision камера, SC3000X Series, 1.3MPix (1216×1024), 12мм foc. length, 60 fps, монохромна
Brand: HIKROBOT
Price: 1960.80 EUR
Availability: InStock

Описание

Вградена хардуерна платформа за високоскоростна обработка на изображения.
Вградени високопрецизни алгоритми за позициониране, измерване и разпознаване за броене, дефекти, наличие, позициониране и други функции.
Поддържа RS-232, TCP, UDP, FTP, ModBus, PROFINET, EtherNet/IP и други комуникационни интерфейси.
Множество IO интерфейси за входни и изходни сигнали.
Поддържа преглед на състоянието на устройството в реално време чрез 360° визуален индикатор, удобен за отстраняване на грешки и поддръжка.
Въртяща се кабелна опашка, подходящо за тесни пространства.
Използва поляризирано, дифузно и напълно прозрачно оптично осветление с добра адаптивност към околната среда.
IP67 защита безпроблемна работа в тежки индустриални условия.

Model	Product Model	MV-SC3013XM-12M-WBN
Model	Type	SC3000X series vision sensor，12mm focal length，1.3MP，Mono
Tool	Vision tool	Count: Spot count, edge count, pattern count, contour countDefect detection: Exception detectionExistence: Circle existence, line existence, spot existence, edge existence, pattern existence, contour existenceLocation: Match calibration, match location, position fixtureLogic tool: If module, condition judge, logic judge, combination judge, string comparison, calculatorMeasurement: L2L angle, diameter measurement, brightness analysis, contrast measurement, width measurement, P2L measurement, greyscale size, line angle, edge width measurementRecognition: OCR, code recognition, classification registration, object detection registrationDeep learning: DL object detection, DL classification
	Solution capacity	Supports importing and exporting project, up to 32 projects can be stored.
	Communication protocol	RS-232, TCP, UDP, FTP, PROFINET, ModBus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Camera	Sensor type	CMOS, global shutter
	Pixel size	6.9 µm × 6.9 µm
	Sensor size	1/1.45"
	Resolution	1216 × 1024
	Max. frame rate	60 fps
	Dynamic range	77.8 dB
	SNR	43 dB
	Gain	0 dB to 15 dB
	Exposure time	6 μs to 1 sec
	Pixel format	Mono 8
	Mono/color	Mono
Electrical feature	Data interface	Fast Ethernet (100 Mbit/s)
	Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LINE 0/1/2) × 3, opto-isolated output (LINE 3/4/5) × 3, and RS-232 × 1Supports triggering device via pressing top trigger button
	Power supply	24 VDC
	Power consumption	Approx. 6.5 W@24 VDC
Mechanical	Lens mount	M12-mount, mechanical autofocus supported
	Focal length	12 mm (0.5")
	Lens cap	Polarized + diffused + full-transparent lens cap
	Light source	White spot light source. Red/blue/IR point light source is optional
	Aiming system	Orange LED
	Indicator	360° visual indicator
	Dimension	Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7")Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6")
	Weight	Approx. 190 g (0.4 lb.)
	Ingress protection	IP67 (under proper installation of waterproof lens cap)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	SCMVS
General	Certification	CE, KC
