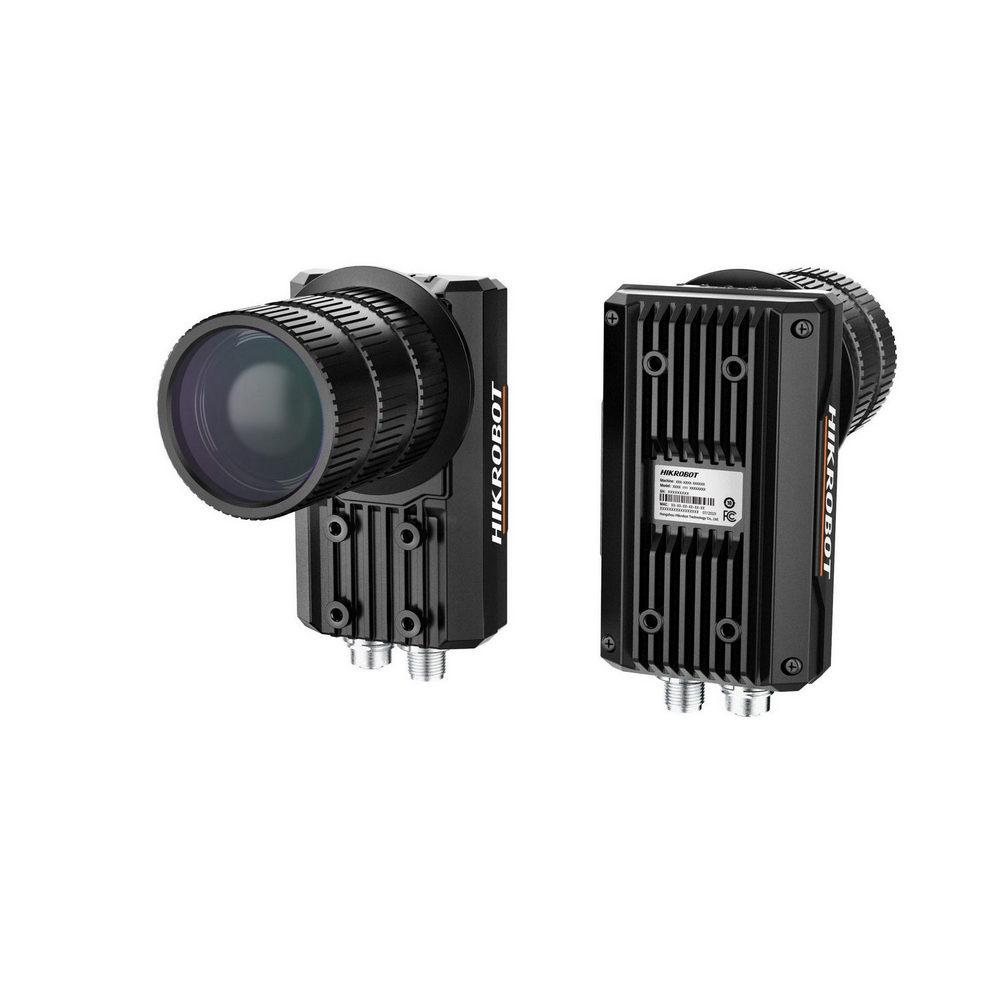

Name: HIKROBOT MV-ID5200PM-00C-NNN :: Smart Code Reader, ID5000 Series, 20 fps, 20MPix (5120×3968), 36 codes/sec, C-Mount, Gigabit, No light
Brand: HIKROBOT
Availability: OutOfStock

Описание

Използва вграден deep-learning алгоритъм за разчитане на кодове с висока ефективност
Използва global-shutter CMOS сензор за висококачествени изображения
Поддържа шахматен ROI и четене на 200 двумерни кода едновременно
Поддържа множество комуникационни протоколи, включително TCP, Serial, FTP, Profinet и др.
Клас на защита от проникване IP67

Model	Product Model	MV-ID5200PM-00C-NNN(V2.0)
Model	Type	20MP Allfunction Industrial Code Reader
Performance	Symbologies	1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 112-dimensional codes: QR Code, Data MatrixStack codes: PDF 417
	Max. frame rate	20 fps
	Max. reading speed	36 codes/sec
	Sensor type	CMOS, global shutter
	Pixel size	2.5 µm × 2.5 µm
	Sensor size	1.1"
	Resolution	5120 × 3968
	Exposure time	16 μs to 0.5 sec
	Gain	0 dB to 2.5 dB
	Mono/color	Mono
	Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP, UDP
Electrical feature	Data interface	GigE
	Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.
	Power supply	12 VDC to 24 VDC
	Max. power consumption	12 W@24 VDC
Mechanical	Lens mount	C-mount
	Light source	Not included
	Lens cap	Transparent lens cap
	Indicator	Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2).
	Dimension	109.5 mm × 64.4 mm × 109 mm (4.3" × 2.5" × 4.3")
	Weight	Approx. 470 g (1.0 lb.)
	Ingress protection	IP67 (under proper installation of waterproof lens cap)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	IDMVS
General	Certification	CE, FCC, RoHS, KC
