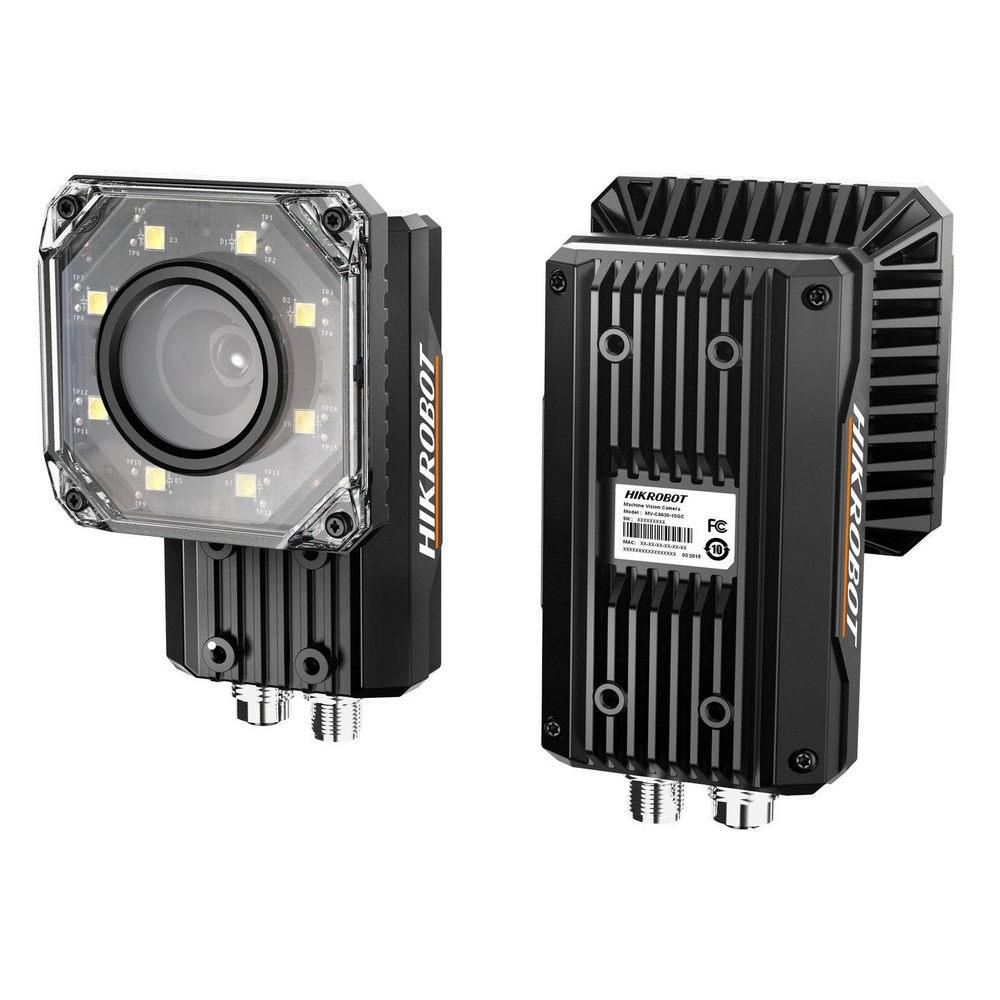

Name: HIKROBOT MV-ID5060M-16S-WBN :: Smart Code Reader, ID5000 Series, 16мм Mechanical Autofocus, 30 fps, 6MPix (3072×2048), 90 codes/sec, Gigabit, бял цвят
Brand: HIKROBOT
Availability: OutOfStock

Описание

Използва rolling-shutter 6 MP сензор с висока производителност за висококачествени изображения
Използва вграден deep-learning алгоритъм за разчитане на кодове с висока ефективност
Осигурява различни държачи за обективи с опционален механичен автофокусен обектив за автоматично фокусиране
Поддържа множество комуникационни протоколи, включително TCP, Serial, FTP, PROFINET, Ethernet/IP, MELSEC и Fins
Използва управляем светлинен източник, осигуряващ разнообразно осветление
Клас на защита от проникване IP67

Model	Product Model	MV-ID5060M-16S-WBN
Model	Type	16mm Mechanical Autofocus lens 6MP Allfunction Industrial Code Reader
Performance	Symbologies	1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 112-dimensional codes: QR Code, Data MatrixStack codes: PDF 417
	Max. frame rate	30 fps
	Max. reading speed	90 codes/sec
	Sensor type	CMOS, rolling shutter
	Pixel size	2.4 µm × 2.4 µm
	Sensor size	1/1.8"
	Resolution	3072 × 2048
	Exposure time	16 μs to 1 sec
	Gain	0 dB to 40 dB
	Mono/color	Mono
	Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP
Electrical feature	Data interface	GigE
	Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.
	Power supply	24 VDC
	Max. power consumption	20 W @ 24 VDC (light source is enabled)
Mechanical	Focal length	16 mm (0.6")
	Lens mount	M12-mount, mechanical autofocus lens
	Lens cap	Transparent lens cap. Polarization lens cap is optional.
	Light source	White light. Red, blue, or infrared light is optional.
	Indicator	Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2).
	Dimension	118.7 mm × 78 mm × 73.2 mm (4.7" × 3.1" × 2.9")
	Weight	Approx. 520 g (1.1 lb.)
	Ingress protection	IP67 (under proper installation of waterproof lens cap)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 95% RH (non-condensation)
General	Client software	IDMVS
General	Certification	CE, RoHS, KC
