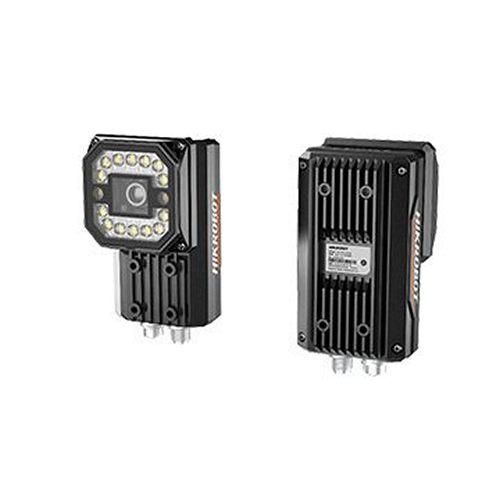

Name: HIKROBOT MV-ID5030M-16S-WBN :: Smart Code Reader, ID5000 Series, 16мм, 3.1MPix (2048×1536), 60 fps, 90 codes/sec, Gigabit, бял цвят
Brand: HIKROBOT
Availability: OutOfStock

Описание

Използва вграден deep-learning алгоритъм за разчитане на кодове с висока ефективност
Използва global-shutter CMOS сензор за висококачествени изображения
Използва механичен автофокусен обектив за автоматично фокусиране
Поддържа оценка на кодовете и оценка на качеството за печатното изображение
Използва управляем светлинен източник, осигуряващ разнообразно осветление
Клас на защита от проникване IP67

Model	Product Model	MV-ID5030M-16S-WBN
Model	Type	ID5000 Series 3.1MP，16mm，white lighting industrial Code Reader
Performance	Symbologies	1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, and Industrial 252-dimensional codes: QR Code, Data MatrixStack codes: PDF 417
	Max. frame rate	60 fps
	Max. reading speed	90 codes/sec
	Sensor type	CMOS, global shutter
	Pixel size	2.5 µm × 2.5 µm
	Sensor size	1/2"
	Resolution	2048 × 1536
	Exposure time	16 μs to 1 sec
	Gain	1 dB to 4 dB
	Mono/color	Mono
	Communication protocol	SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP, UDP
Electrical feature	Data interface	GigE
	Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.
	Power supply	24 VDC
	Max. power consumption	60 W@24 VDC (light source enabled)
Mechanical	Focal length	16 mm (0.6")
	Lens mount	M12-mount, mechanical autofocus supported.
	Lens cap	Half polarization lens cap by default. Transparent and full polarization lens cap are optional.
	Light source	White light by default. Red/blue/IR light is optional.
	Indicator	Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2).
	Dimension	112.5 mm × 65.5 mm × 63.3 mm (4.4" × 2.6" × 2.5")
	Weight	Approx. 450 g (1.0 lb.)
	Ingress protection	IP67 (under proper installation of waterproof lens cap)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	IDMVS
General	Certification	CE, RoHS, KC
