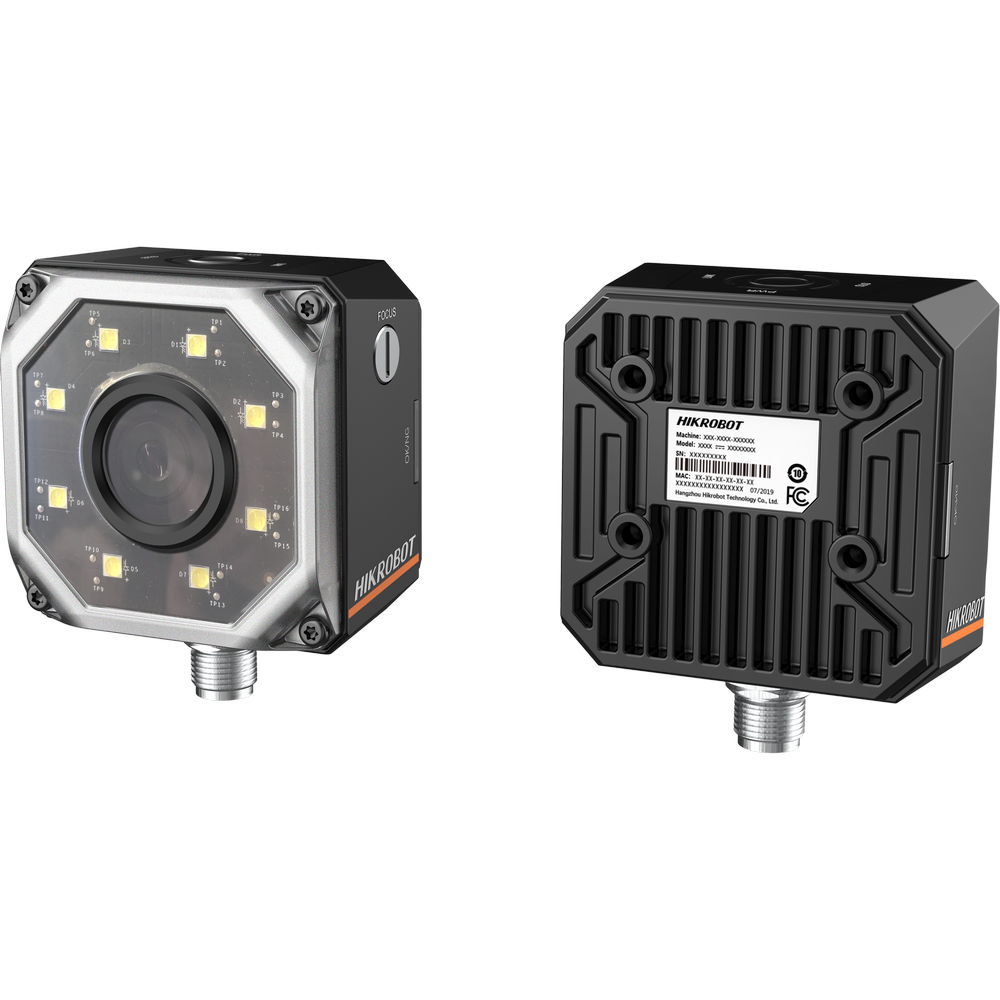

Name: HIKROBOT MV-ID3016PM-12M-WBN :: Smart Code Reader, ID3000 Series, 12мм, 60 fps, 1.6MPix (1408×1024), 84 codes/sec, Fast Ethernet, бяла светлина
Brand: HIKROBOT
Availability: OutOfStock

Описание

Използва вграден deep-learning алгоритъм за разчитане на кодове с висока ефективност
Използва множество IO интерфейси за входни и изходни сигнали
Поддържа множество комуникационни протоколи, включително TCP, Serial, FTP, PROFINET и др.
Използва CMOS сензор за гарантирано висококачествено изображение
Поддържа RS-232 сериен порт и индикатори, показващи състоянието на устройството

Model	Product Model	MV-ID3016PM-12M-WBN
Model	Type	12mm Mechanical Autofocus len 1.6MP PRO Series Compact Industrial Code Reader
Performance	Symbologies	1-dimensional codes: Code 39, Code 93, Code 128, ITF 25, CodaBar, EAN, MATRIX 25, MSI, Industrial 25, China Post, Code 112-dimensional codes: QR Code, Data Matrix
	Max. frame rate	60 fps
	Max. reading speed	84 codes/sec
	Sensor type	CMOS, global shutter
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	1/2.9"
	Resolution	1408 × 1024
	Exposure time	16 μs to 1 sec
	Gain	0 dB to 40 dB
	Mono/color	Mono
	Communication protocol	SmartSDK, TCP Client, TCP Server, UDP, Serial, FTP, PROFINET, Ethernet/IP, MELSEC, ModBus
Electrical feature	Data interface	Fast Ethernet
	Digital I/O	17-pin M12 interface provides power supply and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. Device trigger via pressing button on top supported.
	Power supply	24 VDC
	Max. power consumption	20 W@24 VDC (light source enabled)
Mechanical	Focal length	12 mm (0.5")
	Lens mount	M12-mount, mechanical autofocus.
	Lens cap	Transparent lens cap. Polarization lens cap is optional.
	Light source	Spotlight white light. Spotlight red/blue/IR, and wide-angle white/red/blue light is optional.
	Indicator	Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
	Dimension	65.2 mm × 65.2 mm × 42 mm (2.6" × 2.6" × 1.7")
	Weight	Approx. 250 g (0.6 lb.)
	Ingress protection	IP67 (under proper installation of waterproof lens cap)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F)Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	IDMVS
General	Certification	CE, FCC, RoHS, KC
