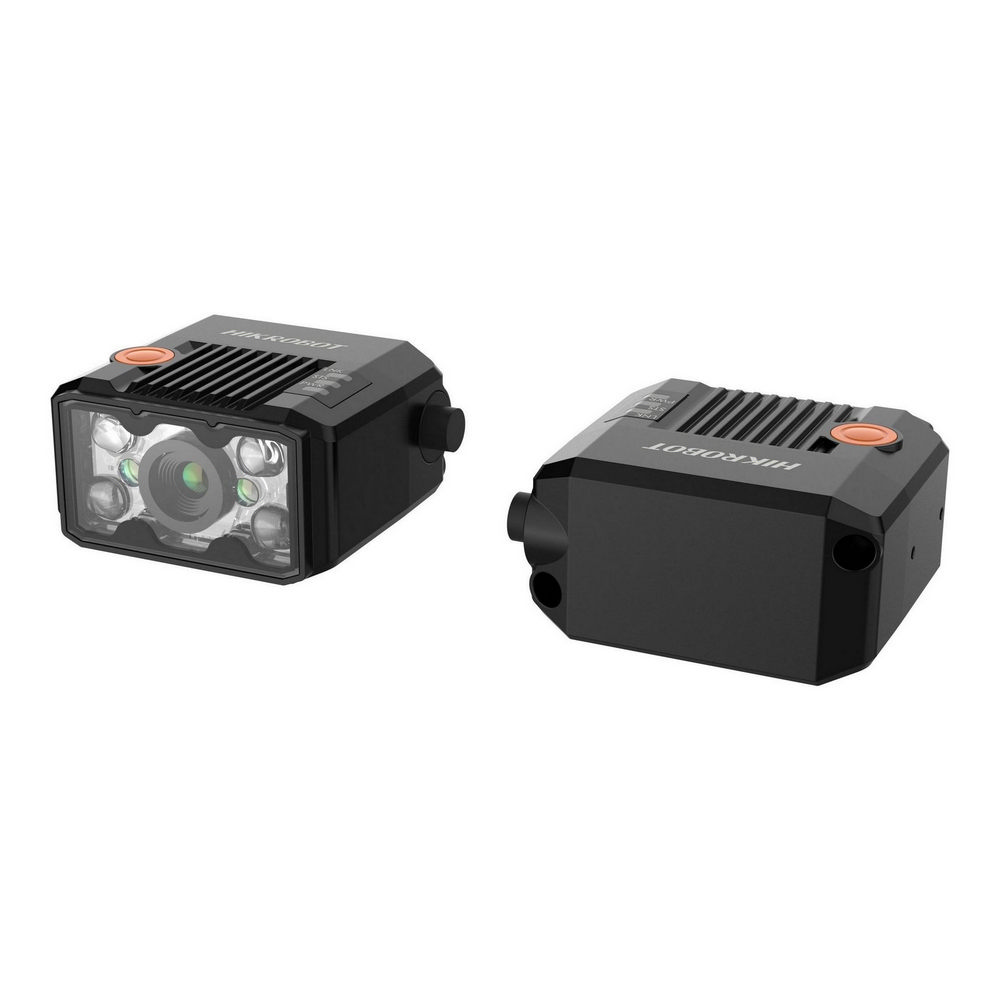

Name: HIKROBOT MV-ID2016M-10T-RBP :: Smart Code Reader, ID2000 Series, 1.6MPix (1408×1024), 10мм, 45 codes/sec, 60 fps, Fast Ethernet, червена светлина
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа високоскоростна настройка на фокуса за смяна на работното разстояние
Компактен дизайн и малки размери, подходящ за тесни пространства
Използва LED светлина за прицелване към обекти
Използва множество IO интерфейси и захранващ интерфейс за лесно окабеляване
Поддържа множество комуникационни протоколи, включително TCP Server, Serial, FTP, TCP Client, Profinet, Ethernet/IP, MELSEC/SLMP, Modbus, UDP, и Fins.

Model	Product Model	MV-ID2016M-10T-RBP
Model	Type	1.6MP Ultra-Compact Industrial Code Reader
Performance	Symbologies	1-dimensional codes: Code 39, Code 93, Code 128 (include GS1-128), ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode2-dimensional codes: QR Code (include GS1-QR), Data Matrix (include GS1-DM), MicroQR, AZTEC, HanXinStacked codes: PDF 417
	Max. frame rate	60 fps
	Max. reading speed	45 codes/sec
	Sensor type	CMOS, global shutter
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	1/2.9"
	Resolution	1408 × 1024
	Exposure time	16 μs to 20000 μs
	Gain	0 dB to 15 dB
	Mono	Mono
	Communication protocol	TCP Server, Serial, FTP, TCP Client, Profinet, Ethernet/IP, MELSEC/SLMP, Modbus, UDP, and Fins
Electrical feature	Data interface	Fast Ethernet (100 Mbit/s)
	Digital I/O	17-pin M12 connector provides power and I/O, including non-isolated input (Line 2) × 1, non-isolated output (Line 3) × 1, configurable bi-directional non-isolated I/O × 2 (Line 0/1), and RS-232 × 1.Supports device triggering via pressing button on side.
	Power supply	12 VDC to 24 VDC
	Max. power consumption	Approx. 4 W @ 12 VDC
Mechanical	Focal length	10 mm
	Lens mount	M12-mount
	Working distance	95 mm to 400 mm
	Ambient illumination	0 lux to 50000 lux
	Aiming system	Orange LED
	Indicator	Power indicator (PWR), network indicator (LNK), and status indicator (STS).
	Dimension	46 mm × 40 mm × 25 mm (1.8" × 1.6" × 1.0")
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F)Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Ingress protection	IP65
	Weight	Approx. 135 g (0.3 lb.)
	Humidity	20% RH to 95% RH (no condensation)
	Light source	Red, polarized
General	Client software	IDMVS
General	Certification	CE, RoHS, KC
