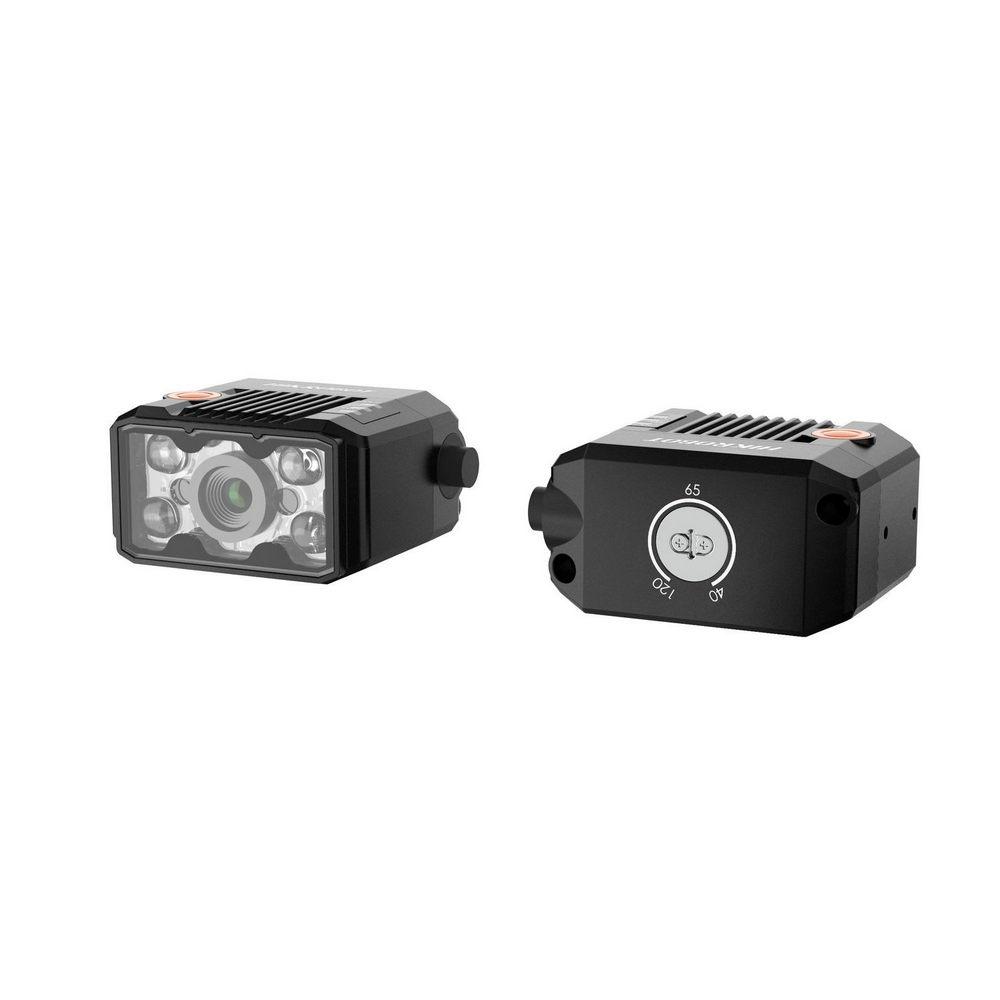

Name: HIKROBOT MV-ID2016M-06S-BBN :: Smart Code Reader, ID2000 Series, 1.6MPix (1408×1024), 45 codes/sec, 60 fps, 6мм, син цвят, Fast Ethernet
Brand: HIKROBOT
Availability: OutOfStock

Описание

Вграден deep-learning алгоритъм за разчитане на кодове с висока надеждност
Компактен дизайн и малки размери
Използва авиационен конектор за еднокабелно свързване
Използва LED светлина за прицелване към кодове
Фокусиращо копче за ръчна настройка на фокуса
Използва множество IO интерфейси и захранващ интерфейс
Поддържа множество комуникационни протоколи, включително TCP, Serial, FTP, Profinet и др.

Model	Product Model	MV-ID2016M-06S-BBN
Model	Type	6mm focal length 1.6MP PRO Series Compact Industrial Code Reader
Performance	Symbologies	1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, MATRIX 25, UPCA, UPCE, MSI, Code 11, Industrial 25, China Post, and Pharmacode2D codes: QR Code, Data Matrix, Micro QR, and AZTECStacked codes: PDF 417
	Max. frame rate	60 fps
	Max. reading speed	45 codes/sec
	Sensor type	CMOS, global shutter
	Pixel size	3.45 µm × 3.45 µm
	Sensor size	1/2.9"
	Resolution	1408 × 1024
	Exposure time	16 μs to 1 sec
	Gain	0 dB to 15 dB
	Mono/color	Mono
	Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, UDP, Fins, and SLMP
Electrical feature	Data interface	Fast Ethernet
	Digital I/O	17-pin M12 connector provides power and I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), configurable bi-directional non-isolated I/O × 2 (Line 0/1), and RS-232 × 1. Device trigger via pressing button on side supported.
	Power supply	12 VDC to 24 VDC
	Max. power consumption	Approx. 10.6 W@24 VDC
Mechanical	Focal length	6.72 mm (0.3")
	Lens mount	M10-mount, adjusting focus manually supported
	Working distance	40 mm to 120 mm (1.6" to 4.7")
	Ambient illumination	0 lux to 50000 lux
	Light source	Blue
	Aiming system	Green LED
	Indicator	Power indicator (PWR), network indicator (LNK), and status indicator (STS)
	Dimension	46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0")
	Weight	Approx. 160 g (0.35 lb.)
	Ingress protection	IP65
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	IDMVS
General	Certification	CE, RoHS, KC
