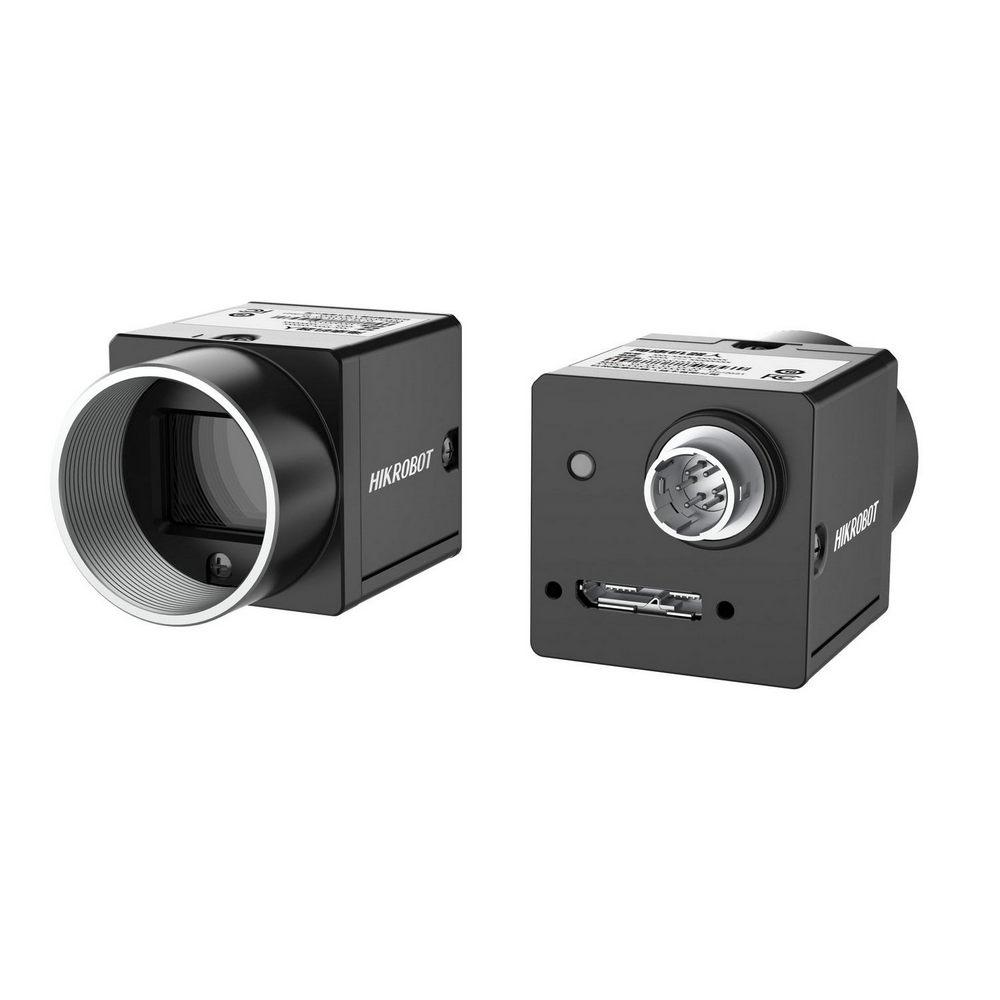

Name: HIKROBOT MV-CU120-10UM :: Machine-Vision камера, Area Scan, CU Series, 1.85 μm, 29.2 fps @ 4024×3036 Mono 8, C-Mount, монохромна, USB 3.0/2.0
Brand: HIKROBOT
Availability: OutOfStock

Описание

Нов дизайн за намаляване на консумацията на енергия
Поддържа автоматично или ръчно регулиране на усилването, времето на експозиция, ръчно регулиране на LUT, гама корекция и др.
Поддържа персонализиран ROI, хоризонтално и вертикално обръщане на изображението
Компактен дизайн за монтаж в малки пространства
Съвместим с USB3 Vision Protocol, GenICam Standard и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CU120-10UM
Model	Type	12MP Area Scan Camera, USB3, IMX226, Mono
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	IMX226
	Pixel size	1.85 μm × 1.85 μm
	Sensor size	1/1.7"
	Resolution	4024 × 3036
	Max. frame rate	29.2 fps @4024 × 3036 Mono 8
	Dynamic range	69.4 dB
	SNR	40.3 dB
	Gain	0 dB to 24 dB
	Exposure time	20 μs to 0.5 sec
	Exposure mode	Off/Once/Continuous exposure mode, supports Global Reset and Rolling
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB3.0
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
	Power consumption	Typ. 1.9 W@5 VDC (USB3.0 provides power supply)
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 76 g (0.2 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	MVS or third-party software meeting with USB3 Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	USB3 Vision, GenlCam
	Certification	CE, RoHS, KC
