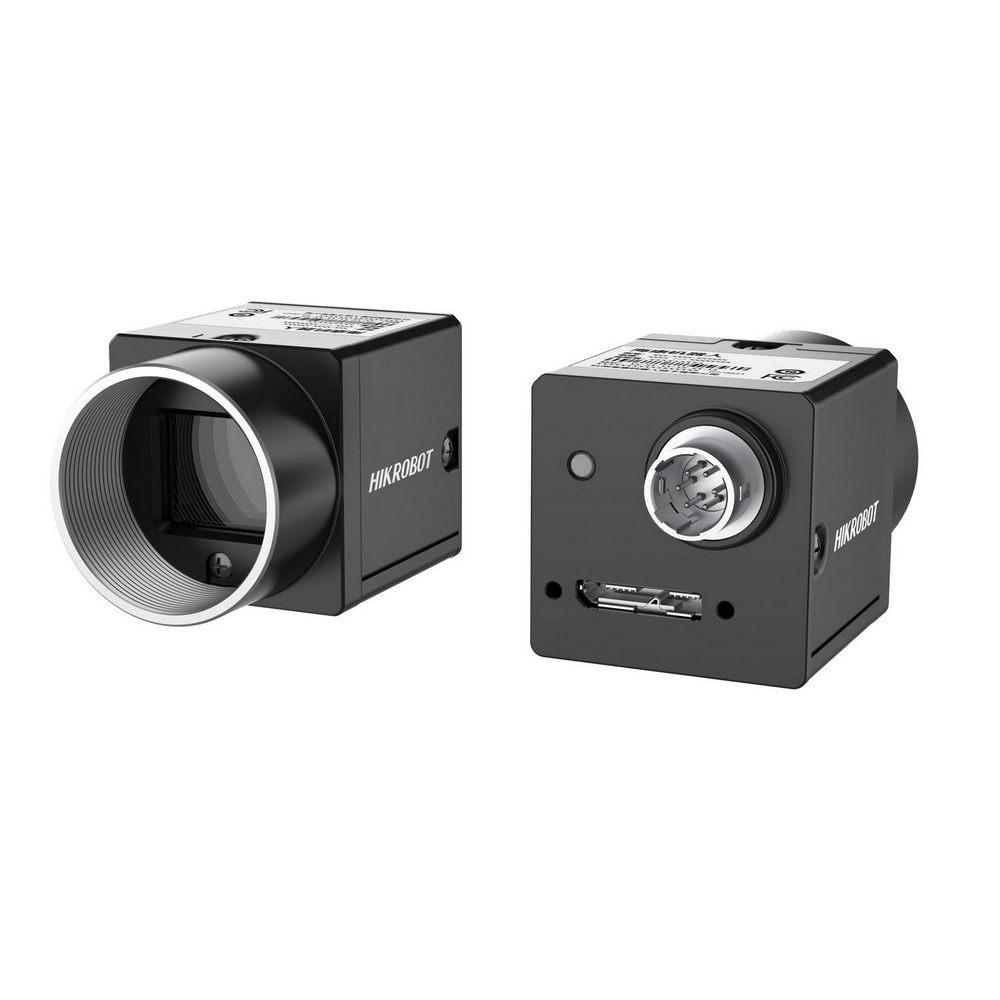

Name: HIKROBOT MV-CU050-60UM :: Machine-Vision камера, Area Scan, CU Series, 2.2 µm, 48.2 fps @ 2592×1944 Mono 8, C-Mount, монохромна, USB 3.0/2.0
Brand: HIKROBOT
Availability: OutOfStock

Описание

Нов дизайн за намаляване на консумацията на енергия
Поддържа увеличаване на честотата на кадрите чрез ROI и поддържа binning, хоризонтално и вертикално обръщане на изображението
Поддържа хардуерен тригер, софтуерен тригер и свободно движение
Съвместим с USB3 Vision Protocol, GenICam Standard и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CU050-60UM
Model	Type	5MP Area Scan Camera, USB3
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	HK
	Pixel size	2.2 μm × 2.2 μm
	Sensor size	1/2.5"
	Resolution	2592 × 1944
	Max. frame rate	48.2 fps @2592 × 1944 Mono 8
	Dynamic range	65.4 dB
	SNR	40.7 dB
	Gain	0 dB to 24 dB
	Exposure time	12 μs to 1.25 sec
	Exposure mode	Off/Once/Continuous exposure mode, supports Global Reset, Rolling, and Trigger Rolling.
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB3.0
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
	Power consumption	Typ. 2.7 W@5 VDC (USB3.0 provides power supply)
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 76 g (0.2 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	MVS or third-party software meeting with USB3 Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	USB3 Vision, GenlCam
	Certification	CE, RoHS, KC
