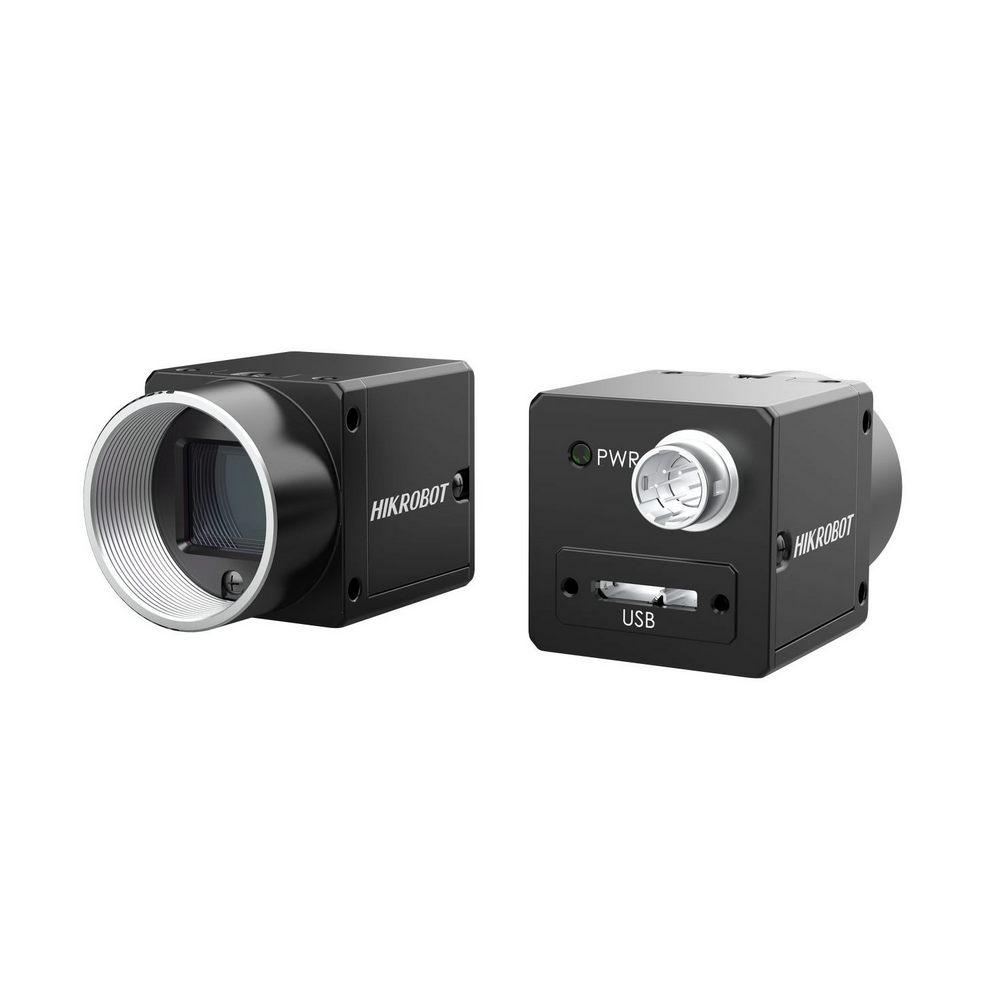

Name: HIKROBOT MV-CS050-60UM :: Machine-Vision камера, Area Scan, CS Series, 3.45 μm, 60 fps @ 2448×2048 Mono 8, C-Mount, монохромна, USB 3.0/2.0 UN
Brand: HIKROBOT
Availability: OutOfStock

Описание

Чисто нов структурен дизайн и поддържа монтаж от четири страни
Поддържа Super Palette и Super Bayer за предоставяне на висококачествени изображения
Поддържа автоматично или ръчно регулиране на усилване, време на експозиция, баланс на бялото, LUT, корекция на гама и др., поддържа Sequencer
Поддържа хардуерен тригер, софтуерен тригер, свободно движение и др.
Съвместим с USB3 Vision Protocol, GenICam Standard и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CS050-60UM
Model	Type	5MP Area Scan Camera, USB3.0, 2nd Gen, Mono, V4
Performance	Sensor type	CMOS, global shutter
	Sensor model	BSI
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	2/3"
	Resolution	2448 × 2048
	Max. frame rate	60 fps @2448 × 2048 Mono 8
	Dynamic range	73.9 dB
	SNR	42.4 dB
	Gain	0 dB to 24 dB
	Exposure time	5 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB3.0
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
	Power consumption	Typ. 1.7 W@5 VDC(USB3.0 provides power supply)
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 80 g (0.2 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -30 °C to 60 °C (-22 °F to 140 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with USB3.0 Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux and 64-bit MacOS
	Compatibility	USB3 Vision, GenlCam
	Certification	CE, RoHS, KC
