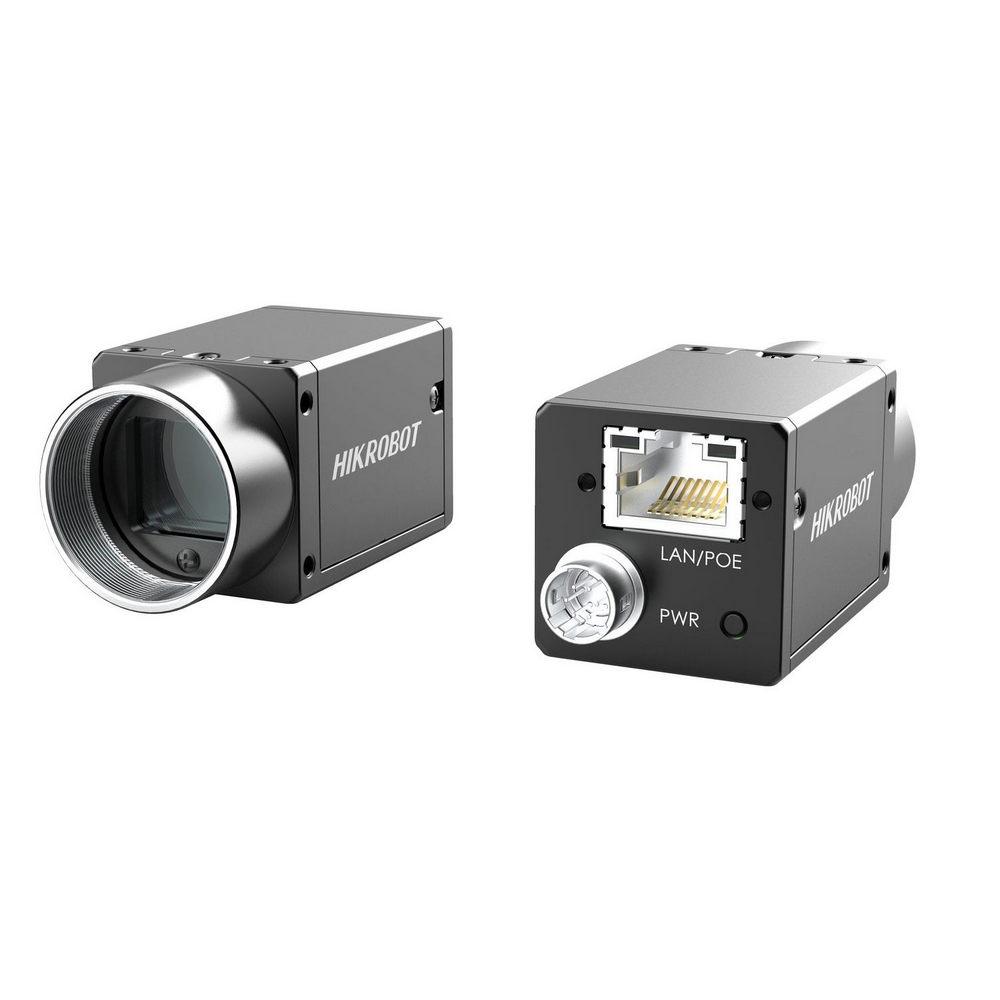

Name: HIKROBOT MV-CS020-10GC :: Machine-Vision камера, Area Scan, CS Series, 4.5 μm, 60 fps @ 1624×1240 Bayer RG 8, C-Mount, цветна, Gigabit
Brand: HIKROBOT
Price: 1340.13 BGN
Availability: InStock

Описание

Нов дизайн за намаляване на консумацията на енергия
Компактен дизайн с монтажни отвори на панелите за гъвкав монтаж от 4 страни
Поддържа Sequencer, контрастно съотношение, Super Palette и др.
Поддържа хардуерен тригер, софтуерен тригер, свободно движение и др.
Съвместимост с GigE Vision V2.0 протокол, GenlCam стандарт и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CS020-10GC
Model	Type	2MP Area Scan Camera, GigE, IMX430, Color
Performance	Sensor type	CMOS, global shutter
	Sensor model	IMX430
	Pixel size	4.5 μm × 4.5 μm
	Sensor size	1/1.7"
	Resolution	1624 × 1240
	Max. frame rate	60 fps @1624 × 1240 Bayer RG 8
	Dynamic range	72.1 dB
	SNR	43.8 dB
	Gain	0 dB to 24 dB
	Exposure time	UltraShort exposure mode: 1 μs to 5 μsStandard exposure mode: 6 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed,YUV422Packed, YUV422_YUYV_PackedRGB 8, BGR 8
	Binning	Supports 1 × 1, 2 × 2
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	GigE
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 3.0 W@12 VDC
Mechanical	Lens mount	C-Mount
	Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 100 g (0.22 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -30 °C to 60 °C (-22 °F to 140 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
