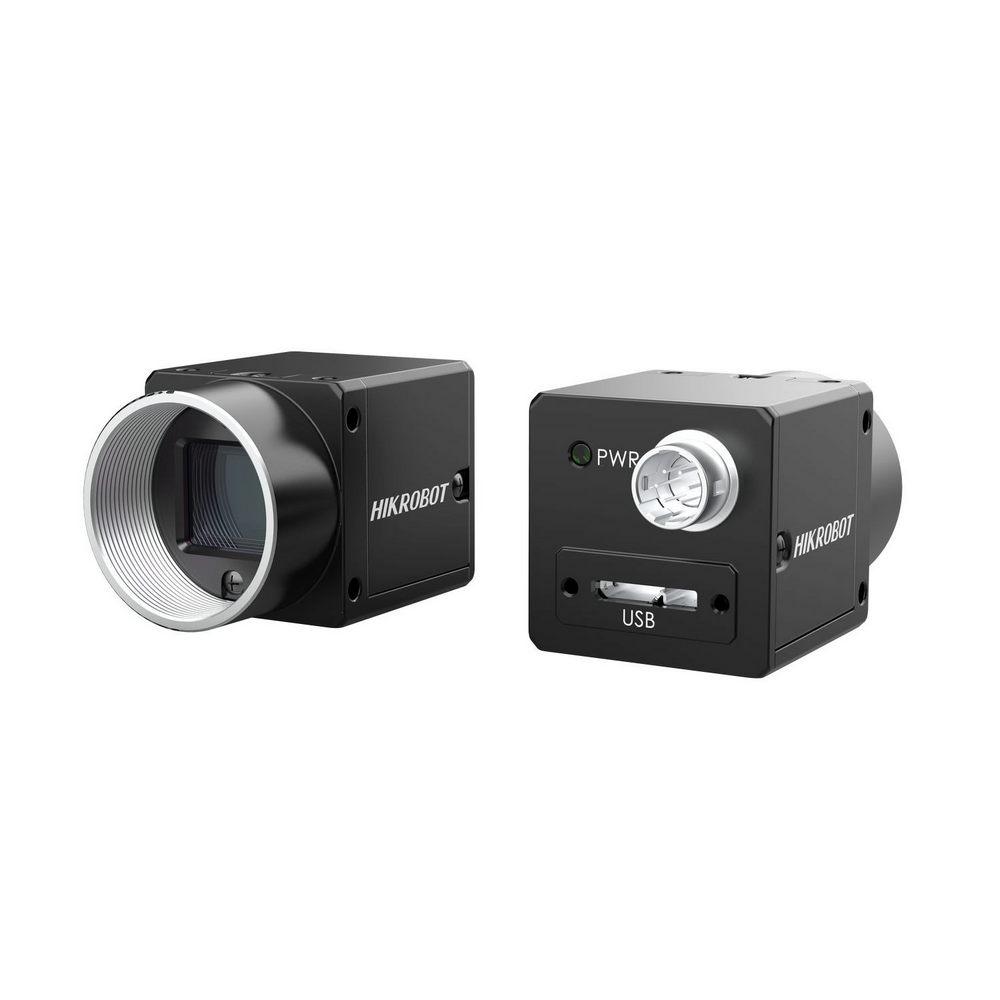

Name: HIKROBOT MV-CS004-10UC :: Machine-Vision камера, Area Scan, CS Series, 526.5 fps @ 720×540 Bayer RG 8, 6.9 μm, C-Mount, цветна, USB 3.0/2.0
Brand: HIKROBOT
Availability: OutOfStock

Описание

Нов дизайн за намаляване на консумацията на енергия
Поддържа Sequencer, контрастно съотношение, баланс на бялото, корекция на гама и др.
Поддържа хардуерен и софтуерен тригер, свободно движение и др.
Компактен дизайн с монтажни отвори на панелите за гъвкав монтаж от 4 страни
Съвместим с USB3 Vision Protocol, GenICam Standard и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CS004-10UC
Model	Type	0.4MP Area Scan Camera, USB3.0, IMX287, 2nd Gen., Color
Performance	Sensor type	CMOS, global shutter
	Sensor model	IMX287
	Pixel size	6.9 µm × 6.9 µm
	Sensor size	1/2.9"
	Resolution	720 × 540
	Max. frame rate	526.5 fps @720 × 540 Bayer RG 8
	Dynamic range	73.6 dB
	SNR	42.9 dB
	Gain	0 dB to 24 dB
	Exposure time	UltraShort exposure mode: 1 μs to 14 μsStandard exposure mode: 15 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Mono 8/10/12, Bayer RG 8/10/10Packed/12/12PackedYUV422Packed, YUV422_YUYV_PackedRGB 8, BGR 8
	Binning	Supports 1 × 1, 2 × 2
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB3.0
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
	Power consumption	Typ. 2.6 W@5 VDC (USB3.0 provides power supply)
Mechanical	Lens mount	C-Mount
	Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 80 g (0.18 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -30 °C to 60 °C (-22 °F to 140 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with USB3.0 Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	USB3 Vision, GenlCam
	Certification	CE, RoHS, KC
EMVA data（typical）	Quantum efficiency	58.3 %
	Dark noise	3.3 e-@12 bit
	Signal-to-noise ratio	42.9 dB
	Saturation capacity	19.6 ke-
	Dynamic range	73.6 dB
