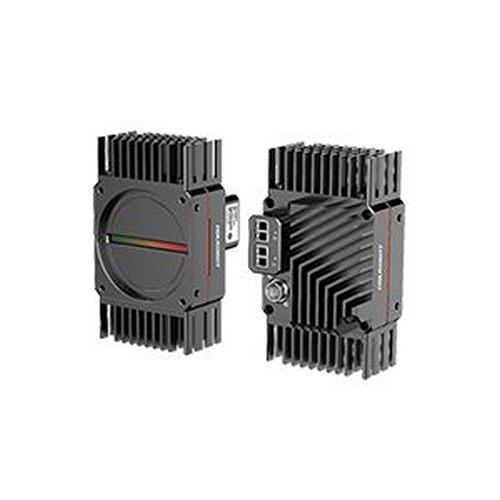

Name: HIKROBOT MV-CL162-91F2M :: Machine-Vision камера, Line Scan, CL Series, 16384×2, 2LC fiber connector, 3.5 μm, M72*0.75, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Използва множество ISP: гама, корекция на плоско поле, LUT, отместване на нивото на черното и др.
Осигурява двойни XoF оптични конектори с 20 GB честотна лента
Поддържа множество методи за експозиция и заснемане
Поддържа режим на изображение на 1-Line и 2-TDI
Двупосочен конфигурируем I/O хардуерен дизайн
Компактен дизайн и гъвкав монтаж

Model	Product Model	MV-CL162-91F2M
Model	Type	16k 3.5μm XoF(2 SFP+) linescan camera，mono
Performance	Sensor type	CMOS
	Pixel size	3.5 μm × 3.5 μm
	Resolution	16384 × 2
	Image mode	Supports 1-Line, 2-TDI
	Max. line rate	1 Link mode: 73.2 kHz (1-Line), 60 kHz (2-TDI)2 Link mode: 120 kHz (1-Line), 60 kHz (2-TDI)
	Dynamic range	56.7 dB
	SNR	37 dB
	Gain	1.0 ×
	Exposure time	3 μs to 10 ms
	Exposure mode	Off/ Once/ Continuous exposure mode, and supports trigger-width exposure
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
	Trigger mode	External trigger, internal trigger
	External trigger mode	Line trigger, frame trigger, line + frame trigger
Electrical feature	Data interface	2LC fiber connector
	Digital I/O	12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
	Power supply	12 VDC to 24 VDC
	Power consumption	Typ. 10.6 W @24VDC
Mechanical	Lens mount	M72*0.75, flange focal length 12 mm (0.5"), applicable to F-mount via lens adapter
	Dimension	132 mm × 76 mm × 57.4 mm (5.2" × 3.0" × 2.3")
	Weight	Approx. 600 g (1.3 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -20 °C to 50 °C (-4 °F to 122 °F); Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
	Humidity	5% to 90% RH, non-condensing
General	Client software	MVS
	Operating system	32/64-bit Windows XP/7/10, 64-bit Windows 11
	Compatibility	Self-developed protocol, GenlCam
	Certification	CE, RoHS, KC, UL
