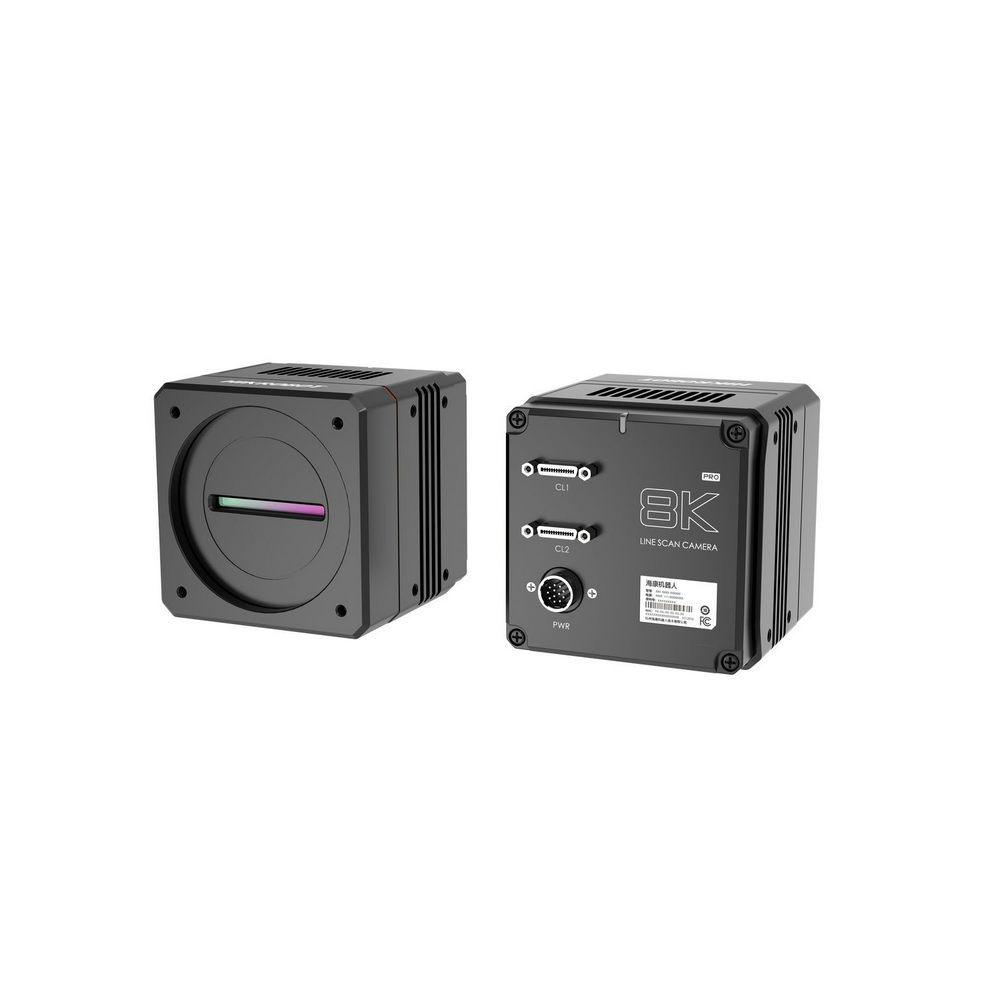

Name: HIKROBOT MV-CL084-91CM-PRO :: Machine-Vision камера, Line Scan, CL Series, 5 μm, 8192×16, Camera Link, M72*0.75, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа режими на конфигуриране Base, Medium, Full и 80-bit чрез интерфейса Camera Link
Поддържа функция за управление на множество светлини и TDI функция за избор на различни режими на лампата и режими на изображението
Поддържа регулиране на времето на експозиция и усилването, PRNUC корекция, LUT, гама корекция и др.
Съвместим с протокола Camera Link и стандарта GenlCam

Model	Product Model	MV-CL084-91CM-PRO
Model	Type	8K pro Camera Link linescan Camera,5μm，Mono
Performance	Sensor type	CMOS
	Pixel size	5 μm
	Resolution	8192 × 16
	Image mode	Supports 1-line, 2-TDI, and 4-TDISupports multiple lights control: 2-lamp/3-lamp/4-lamp
	Max. line rate	Multiple lights control disabled or 1-lamp: 20 kHz (Base), 40 kHz (Medium), 75 kHz (Full), 75 kHz (80-bit)2-lamp: 10 kHz (Base), 20 kHz (Medium), 40 kHZ (Full), 50 kHz (80-bit)3-lamp: 6 kHz (Base), 13 kHz (Medium), 27 kHZ (Full), 33 KHz (80-bit)4-lamp: 5 kHz (Base), 10 kHz (Medium), 20 kHZ (Full), 25 kHz (80-bit)
	Configuration mode	Base, Medium, Full, 80-bit
	Tap geometry	1 × 2, 1 × 4, 1 × 8, 1 × 10
	Tap number	2 Taps, 4 Taps, 8 Taps, 10 Taps
	Pixel clock	40 MHz, 66 MHz, 80 MHz, 85 MHz
	Dynamic range	57.8 dB
	SNR	41.3 dB
	Gain	Supports 1.2 ×, 2.7 ×, and 4.6 ×
	Exposure time	3 μs to 10 ms
	Exposure mode	Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
	Trigger mode	External trigger, internal trigger
	External trigger mode	Line trigger, frame trigger, line + frame trigger
Electrical feature	Data interface	Camera Link
	Digital I/O	12-pin P10 connector provides power and I/O: configurable input and output × 4 (Line 0/1/3/4), and support single-end/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
	Power supply	24 VDC
	Power consumption	Typ. 22.9 W@24 VDC
Mechanical	Lens mount	M72*0.75, optical back focal length: 12 mm (0.5"), applicable to F-mount via lens adapter
	Dimension	84 mm × 84 mm × 89 mm (3.3" × 3.3" × 3.5")
	Weight	Approx. 883 g (1.9 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -20 °C to 60 °C (-4 °F to 140 °F); Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
	Humidity	5% to 90% RH, non-condensing
General	Client software	MVS and frame grabber software meeting with Camera Link Protocol
	Operating system	32/64-bit Windows 7/10
	Compatibility	Camera Link V2.0, GenICam
	Certification	CE, RoHS, KC
