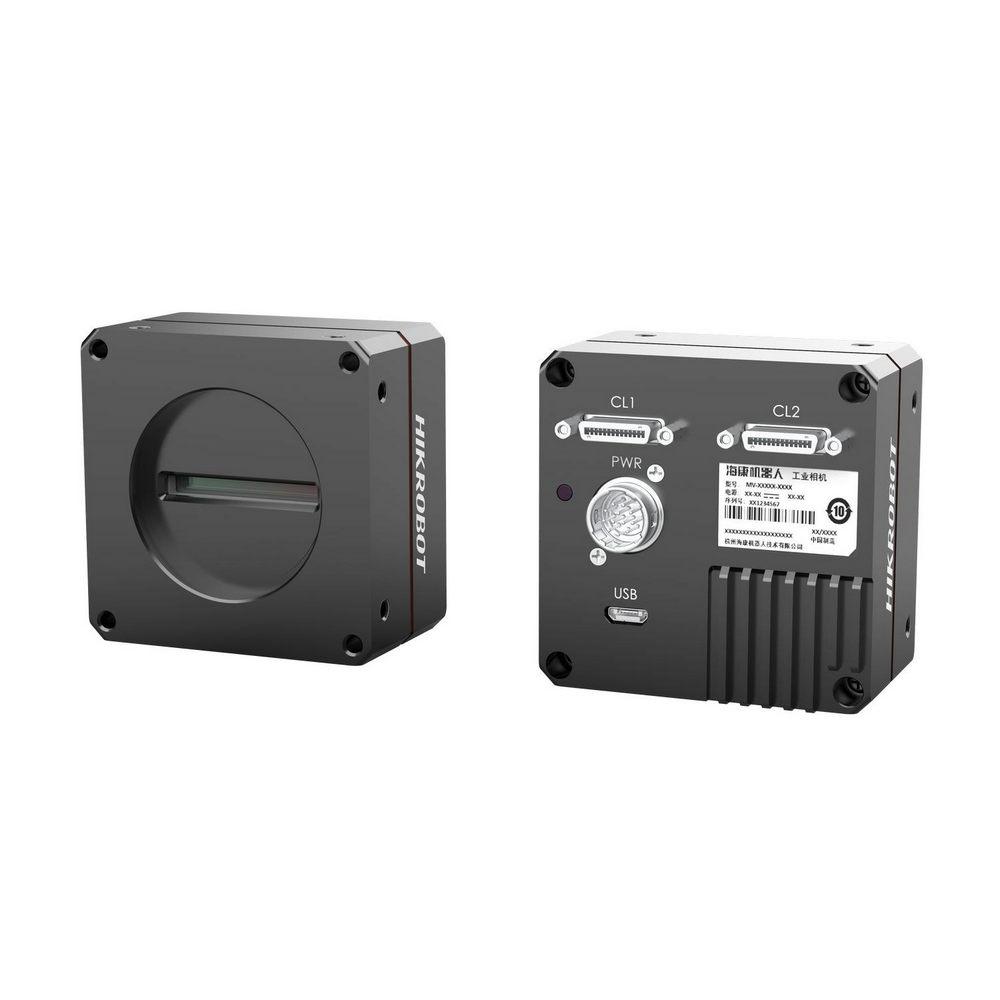

Name: HIKROBOT MV-CL042-91CC :: Machine-Vision камера, Line Scan, CL Series, 4096×2, 7 μm, Camera Link, цветна, M42*1
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа множество методи за експозиция и за заснемане на изображения с максимална линейна скорост от 100 kHz
Прилага множество ISP технологии и поддържа ръчна настройка за гама корекция, PRNUC корекция, LUT, ниво на черното и др.
Поддържа двупосочно I/O окабеляване за гъвкави настройки на входа/изхода
Компактен дизайн и гъвкав монтаж
Съвместим с протокола Camera Link и стандарта GenlCam

Model	Product Model	MV-CL042-91CC
Model	Type	4k Camera Link Line Scan Cameras，Color
Performance	Sensor type	CMOS
	Pixel size	7 μm
	Resolution	4096 × 2
	Image mode	Supports 1-line
	Max. line rate	40 kHz (Base), 20 kHz/40 kHz (Base/Medium), 40 kHz/80 kHz/100 kHz (Base/Medium/Full)
	Configuration mode	Base, Medium, Full, 80-bit
	Tap geometry	1X, 1X2, 1X4, 1X8, 1X10
	Tap number	1 Tap, 2 Taps, 4 Taps, 8 Taps, 10 Taps
	Pixel clock	40 MHz, 60 MHz, 70 MHz, 85 MHz
	Dynamic range	65.6 dB
	SNR	40 dB
	Gain	Supports 1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 ×
	Exposure time	5 μs to 10 ms
	Exposure mode	Off/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure
	Mono/color	Color
	Pixel format	Mono 8, RGB 8, Bayer RGBG 8
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
	Trigger mode	External trigger, internal trigger
	External trigger mode	Line trigger, frame trigger, line + frame trigger
Electrical feature	Data interface	Camera Link
	Digital I/O	12-pin Hirose connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
	Power supply	12 VDC to 24 VDC
	Power consumption	Typ. 6.1 W@12 VDC
Mechanical	Lens mount	M42*1, optical back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and lens of other types via lens adapter
	Dimension	62 mm × 62 mm × 36.9 mm (2.4" × 2.4" × 1.5")
	Weight	Approx. 238 g (0.5 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -20 °C to 55 °C (-4 °F to 131 °F); Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
	Humidity	5% to 95% RH, non-condensing
General	Client software	MVS and frame grabber software meeting with Camera Link Protocol
	Operating system	32/64-bit Windows XP/7/10
	Compatibility	Camera Link V1.2, GenICam
	Certification	CE, RoHS, KC
