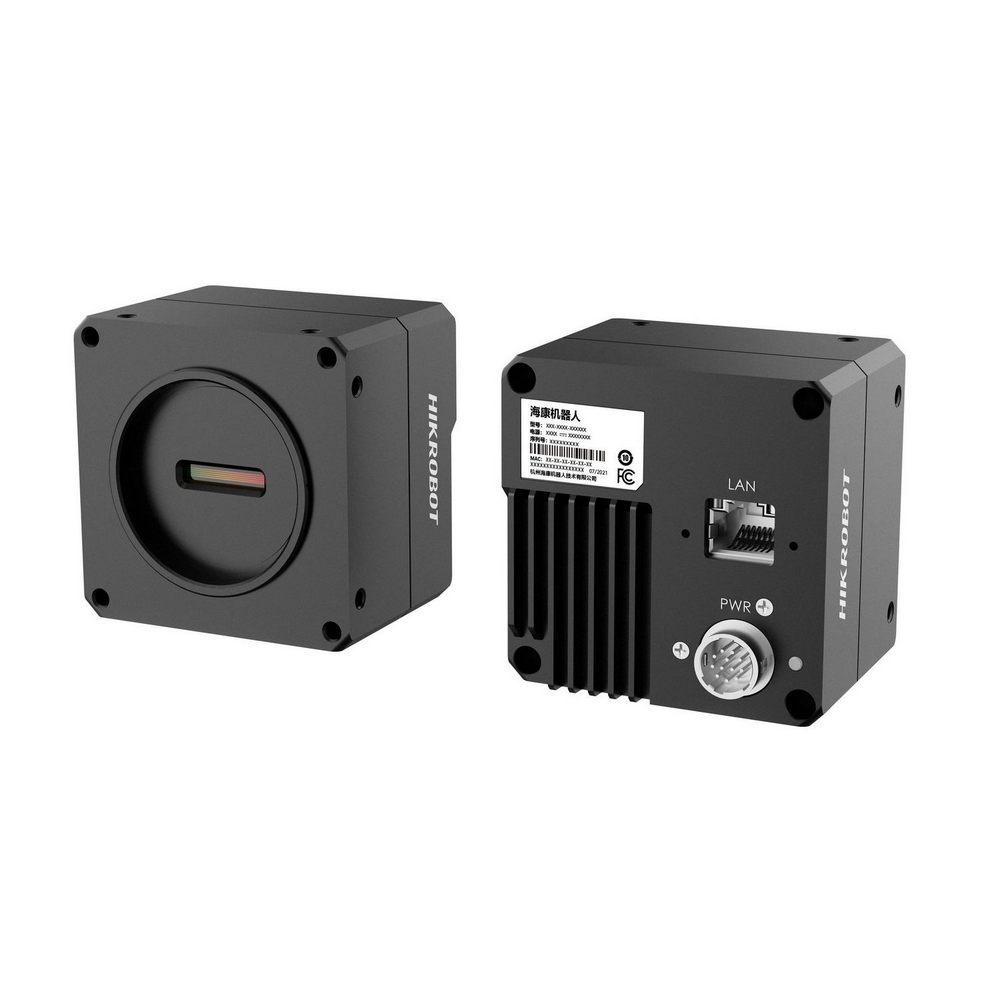

Name: HIKROBOT MV-CL024-91GM :: Machine-Vision камера, Line Scan, CL Series, 2048×2, 7 μm, Gigabit, M42 *1.0, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа TDI и функция за висока пропускателна способност на изображението
Поддържа гама корекция, FFC корекция, LUT, ниво на черното и др.
Използва двупосочен вход/изход и гъвкава конфигурация за входни/изходни сигнали
Поддържа гъвкав монтаж от различни страни
Съвместимост с GigE Vision V2.0 protocol и GenlCam standard

Model	Product Model	MV-CL024-91GM
Model	Type	2k linescan camera，mono，GPixel，7μm
Performance	Sensor type	CMOS
	Pixel size	7 μm
	Resolution	2048 × 2
	Image mode	Supports 1-line, 2-TDI
	Max. line rate	Standard mode: 58 kHz @Mono 8, 29 kHz @Mono 10/12High-bandwidth mode: 86 kHz @Mono 8, 58 kHz @Mono 10/12
	Dynamic range	68 dB
	SNR	44.7 dB
	Gain	Supports 1.0 ×
	Exposure time	3 μs to 10 ms
	Exposure mode	Off/ Once/ Continuous exposure mode, and supports trigger-width exposure
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
	Trigger mode	External trigger, internal trigger
	External trigger mode	Line trigger, frame trigger, line + frame trigger
Electrical feature	Data interface	GigE
	Digital I/O	12-pin P10 connector provides power supply and I/O: configurable output and input × 4 (Line 0/1/3/4), supports single-end/differential
	Power supply	12 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 5.2 W @12 VDC
Mechanical	Lens mount	M42 *1.0, optical back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and others via lens adapter
	Dimension	62 mm × 62 mm × 40.5 mm (2.4" × 2.4" × 1.6")
	Weight	Approx. 256 g (0.6 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -20 °C to 55 °C (-4 °F to 131 °F); Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
	Humidity	5% to 90% RH, non-condensing
General	Client software	MVS or the third-party software meeting with GigE Vision protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
