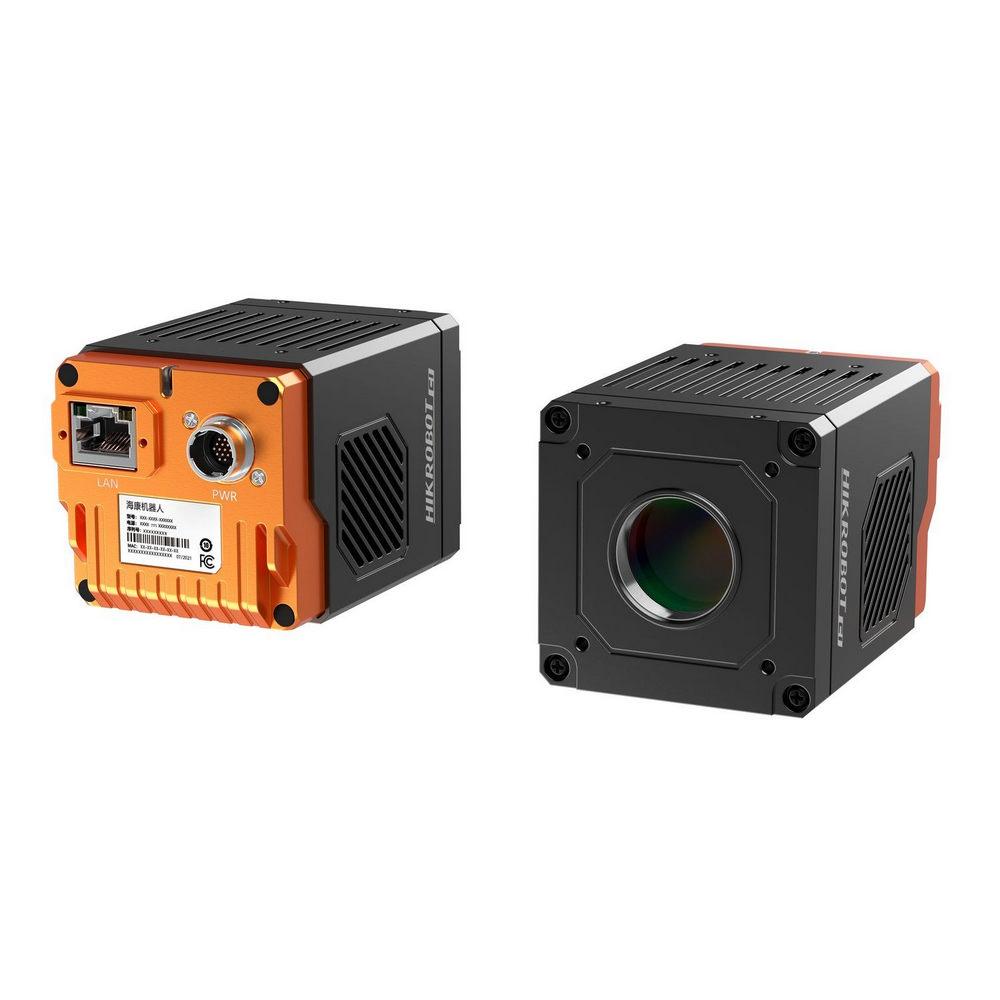

Name: HIKROBOT MV-CI013-GS-TF :: Machine-Vision камера, Infrared, CI Series, 5 μm, 91 fps @ 1280×1024 Mono 8, C-Mount, Gigabit TF
Brand: HIKROBOT
Availability: OutOfStock

Описание

InGaAs сензор, поддържа спектрално изобразяване от 0.4 μm до 1.7 μm
Поддържа TEC за осигуряване на добро охлаждане
Множество функции на ISP, като цифрово намаляване на шума, съотношение на контраста и др.
Компактен дизайн за монтаж в малки пространства
Съвместимост с GigE Vision V2.0 протокол, GenlCam стандарт и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CI013-GS-TF
Model	Type	1.3MP SWIR Camera, IMX990, GigE, with TEC and fan
Performance	Sensor type	InGaAs
	Sensor model	IMX990
	Pixel size	5 μm × 5 μm
	Sensor size	1/2"
	Resolution	1280 × 1024
	Max. frame rate	91 fps @1280 × 1024 Mono 8
	Dynamic range	56 dB
	SNR	52.2 dB
	Gain	0 dB to 18 dB
	Exposure time	UltraShort exposure mode: 3 μs to 7 μsStandard exposure mode: 8 μs to 0.1 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	GigE
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
	Power supply	9 VDC to 24 VDC
	Power consumption	Typ. 11.7 W@12 VDC (TEC enabled)
Mechanical	Lens mount	C-mount
	Installation method	Installation via three-side screw holes
	Dimension	58 mm × 58 mm × 82 mm (2.3" × 2.3" × 3.2")
	Weight	Approx. 470 g (1.0 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -30 °C to 50 °C (-22 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
