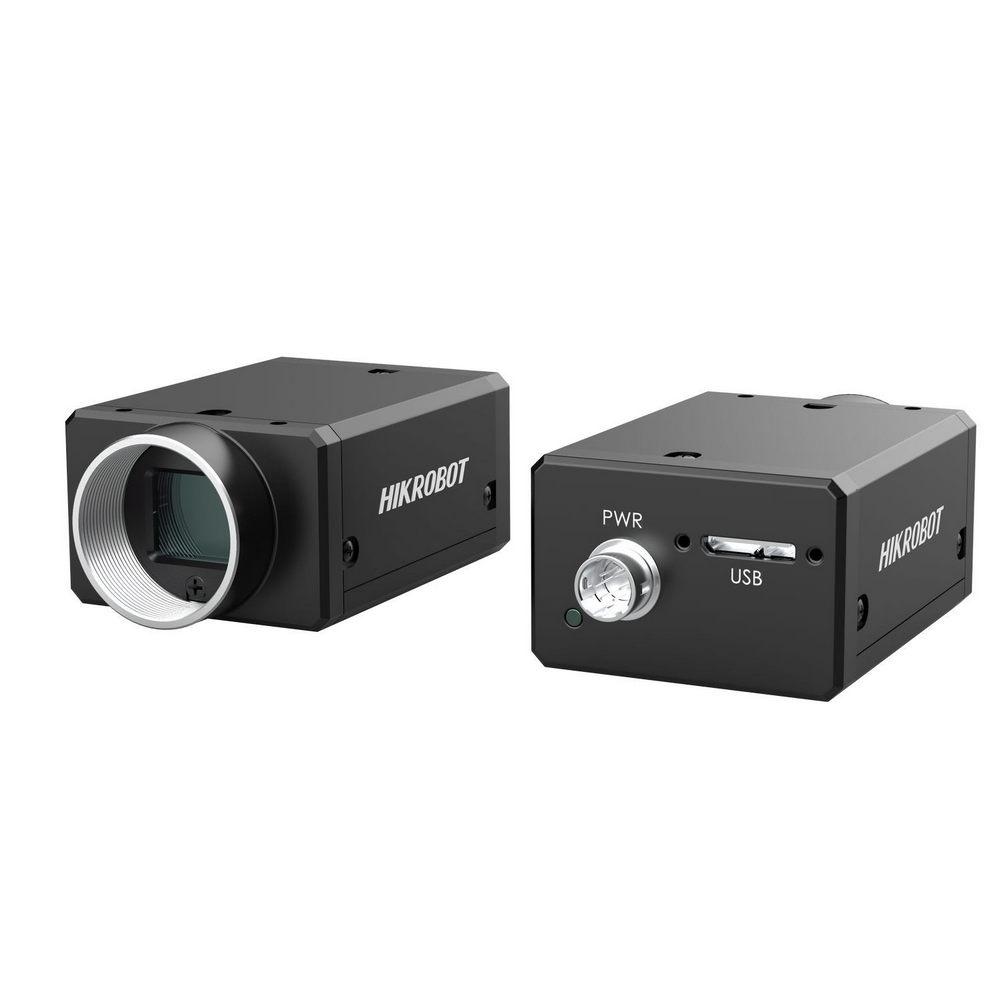

Name: HIKROBOT MV-CH250-90UM :: Machine-Vision камера, Area Scan, CH Series, 14 fps @ 5120×5120 Mono 8, 2.5 μm, C-Mount, монохромна, USB 3.0/2.0
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 5120 × 5120, pixel size 2.5 µm × 2.5 µm
Поддържа LSC корекция, binning, обръщане на изображението и др.
Поддържа хардуерен тригер, софтуерен тригер и свободно движение
Съвместим с USB3 Vision Protocol, GenICam Standard и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CH250-90UM
Model	Type	25MP Area Scan Camera, USB3，GMAX0505，Mono
Performance	Dynamic range	65 dB
	Pixel size	2.5 µm × 2.5 µm
	Reverse image	Supports horizontal and vertical reverse image output
	Resolution	5120 × 5120
	Sensor type	CMOS, global shutter
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Exposure time	12 μs to 10 sec
	Mono/color	Mono
	SNR	36 dB
	Sensor size	1.1"
	Max. frame rate	14.3 fps @5120 × 5120
	Sensor model	GMAX0505
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Pixel format	Mono 8/10/10p/12/12p
	Image buffer	USB3.0, compatible with USB2.0
	Gain	Supports 2.0 ×, 2.5 ×, 3.0 ×, 3.5 ×, 4.0 ×, 4.5 ×, 5.0 ×
	Exposure mode	Off/Once/Continuous exposure mode
Electrical feature	Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
	Data interface	USB3.0
	Power consumption	Typ. 3.4 W@5 VDC(USB3.0 provides power supply)
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Mechanical	Lens mount	C-mount
	Weight	Approx. 100 g (0.2 lb.)
	Humidity	20% to 95% RH, non-condensing
	Ingress protection	IP30 (under proper lens installation and wiring)
	Dimension	29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
General	Certification	CE, FCC, RoHS, KC
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Client software	MVS or third-party software meeting with USB3 Vision Protocol
	Compatibility	USB3 Vision, GenICam
