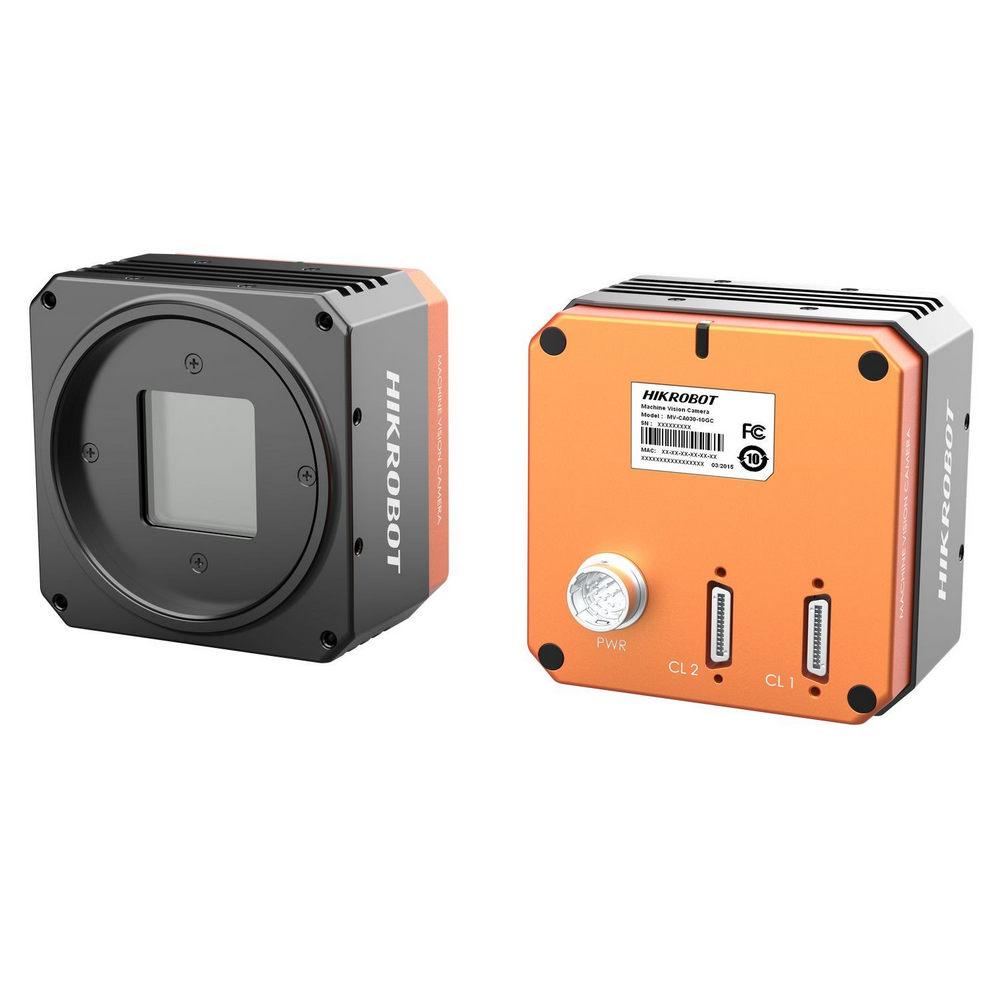

Name: HIKROBOT MV-CH250-20CM-M58S-NN :: Machine-Vision камера, Area Scan, CH Series, 31.3 fps @ 5120×5120, 4.5 μm, Camera Link, M58-mount, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 5120 × 5120 pixel size 4.5 μm × 4.5 μm
Използва global shutter CMOS сензор, осигуряващ широк динамичен диапазон и висококачествени изображения
Поддържа режими на конфигуриране Full и 80-bit чрез интерфейса Camera Link
Компактен дизайн с монтажни отвори за гъвкаво закрепване

Model	Product Model	MV-CH250-20CM-M58S-NN
Model	Type	25MP Area Scan Camera, Camera Link, PYTHON25K, Mono, M58-mount, without fan
Performance	Sensor type	CMOS, global shutter
	Sensor model	Python25K
	Pixel size	4.5 µm × 4.5 µm
	Sensor size	23 mm × 23 mm
	Resolution	5120 × 5120
	Configuration mode	Full, 80-bit
	Tap geometry	8X_1Y, 10X_1Y
	Tap number	8 Taps, 10 Taps
	Max. frame rate	31.3 fps @5120 × 5120
	Pixel clock	60 MHz, 70 MHz, 85 MHz
	Dynamic range	59 dB
	SNR	41 dB
	Gain	0 dB to 32 dB
	Exposure time	45 μs to 10 sec
	Mono/color	Mono
	Pixel format	Mono 8
	Exposure mode	Off/Once/Continuous exposure mode
	Binning	Not support
	Decimation	Not support
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	Camera Link
	Digital I/O	12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
	Power supply	9 VDC to 24 VDC
	Power consumption	Typ. 9.4 W@24 VDC
Mechanical	Lens mount	M58-Mount, optical back focal length 11.48 mm (0.5")
	Dimension	70 mm × 70 mm × 44.3 mm (2.8" × 2.8" × 1.7")
	Weight	Approx. 380 g (0.8 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or frame grabber software meeting with GenlCam Protocol
	Operating system	32/64-bit Windows XP/7/10
	Compatibility	Camera Link V2.0, GenlCam
	Certification	CE, RoHS, KC
