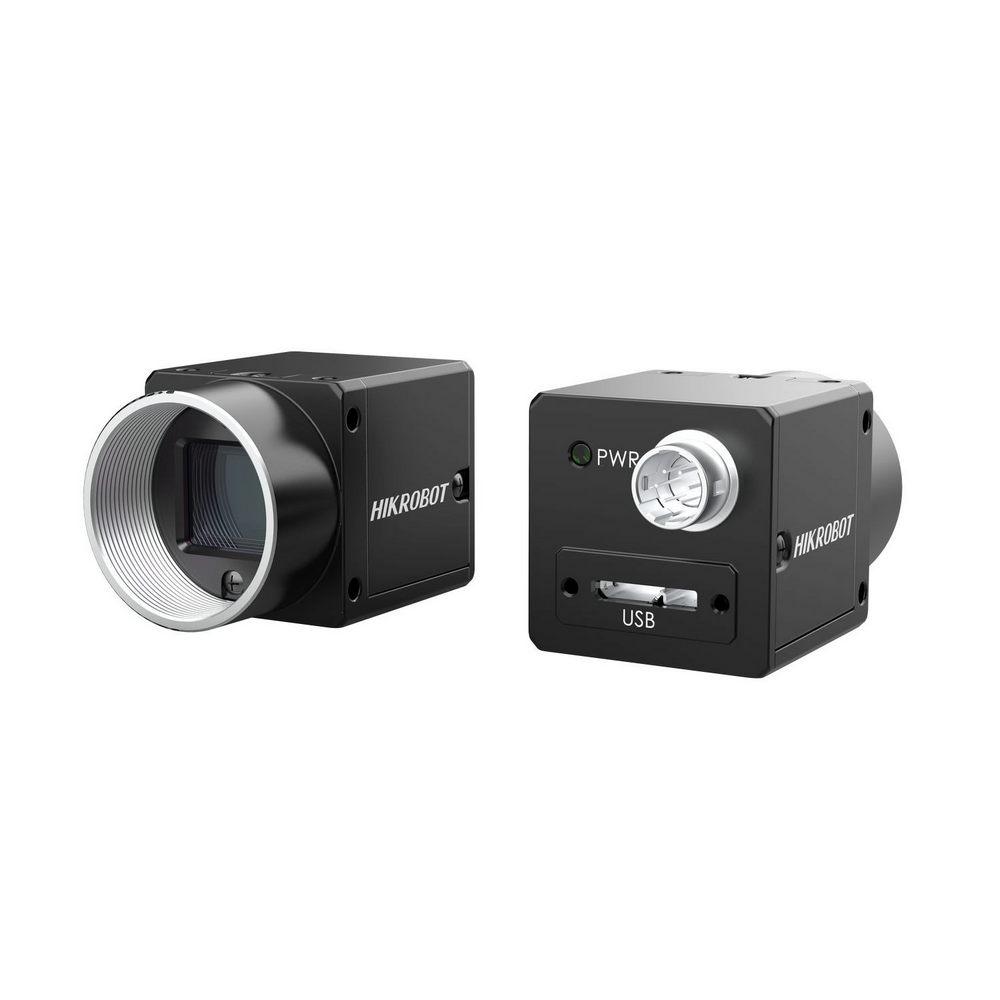

Name: HIKROBOT MV-CH120-20UC :: Machine-Vision камера, Area Scan, CH Series, 28 fps @ 4096×3072 Mono 8, 3.2 μm, C-Mount, цветна, USB 3.0/2.0
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа автоматично или ръчно регулиране на усилването и времето на експозиция, и ръчно регулиране на LUT и гама корекция
Компактен дизайн с монтажни отвори на панелите за гъвкав монтаж от 4 страни
Поддържа хардуерен тригер, софтуерен тригер и режим на свободно движение
Съвместим с USB3 Vision Protocol, GenICam стандарт и софтуер на трети страни, базиран на тези протоколи и стандарти

Model	Product Model	MV-CH120-20UC
Model	Type	12MP Area Scan Camera, USB3, XGS12000, Color, V4
Performance	Sensor type	CMOS, global shutter
	Sensor model	XGS12000
	Pixel size	3.2 µm × 3.2 µm
	Sensor size	1”
	Resolution	4096 × 3072
	Max. frame rate	28 fps @4096 × 3072 Mono 8
	Dynamic range	68 dB
	SNR	40 dB
	Gain	0 dB to 18 dB
	Exposure time	UltraShort exposure mode: 10 μs to 56 μsStandard exposure mode: 57 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB3.0
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
	Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
	Power consumption	Typ. 3.2 W@5 VDC (USB3.0 provides power supply)
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 80 g (0.18 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -10 °C to 50 °C (14 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with USB3.0 Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	USB3 Vision，GenICam
	Certification	CE, RoHS, KC
