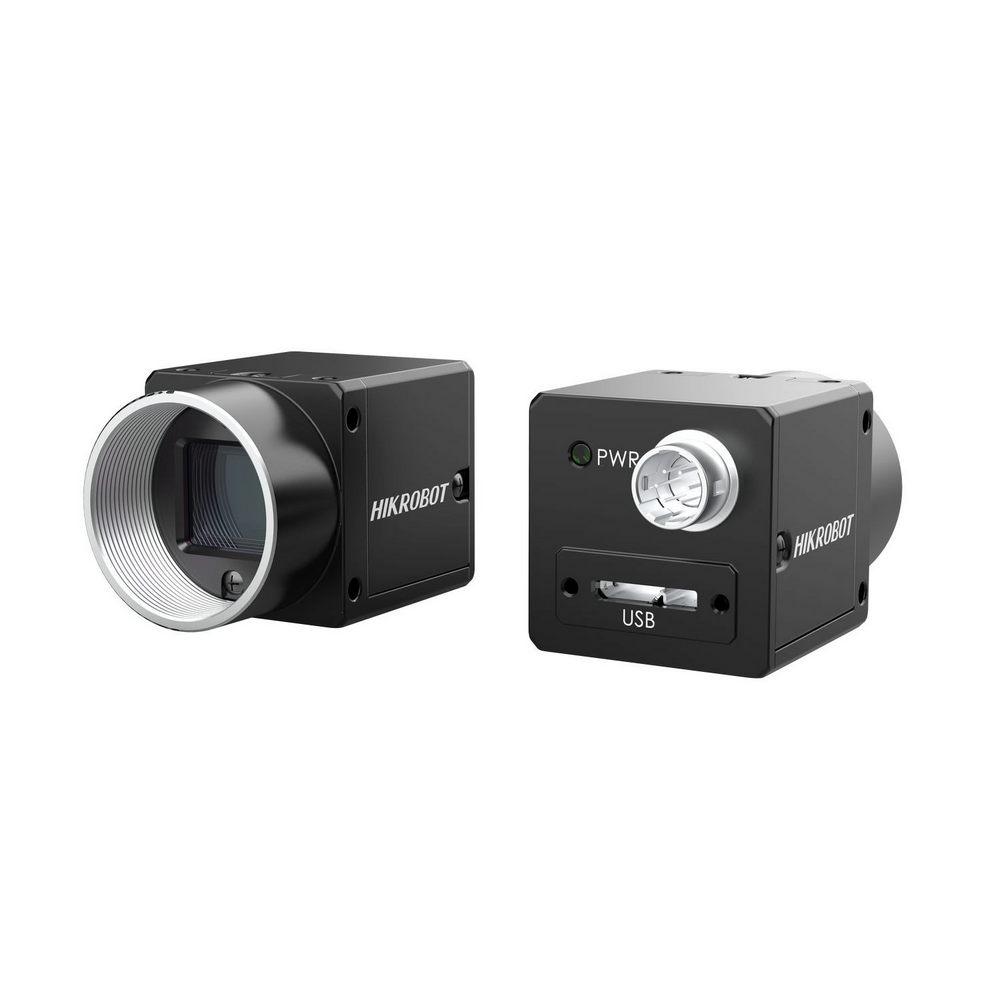

Name: HIKROBOT MV-CH050-10UC :: Machine-Vision камера, Area Scan, CH Series, 3.45 μm, 74.1 fps @ 2448×2048 Bayer RG 8, C-Mount, цветна, USB 3.0/2.0
Brand: HIKROBOT
Availability: OutOfStock

Описание

Компактен дизайн с монтажни отвори на панелите за гъвкав монтаж от 4 страни
Поддържа LSC, Sequencer, Super Palette и др.
Поддържа персонализиран ROI, хоризонтално и вертикално обръщане на изображението
Съвместим с USB3 Vision Protocol, GenICam стандарт и софтуер на трети страни, базиран на тези протоколи и стандарти

Model	Product Model	MV-CH050-10UC
Model	Type	5MP Area Scan Camera, USB3, IMX250, Color, V4
Performance	Sensor type	CMOS, global shutter
	Sensor model	IMX250
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	2/3"
	Resolution	2448 × 2048
	Max. frame rate	74.1 fps @2448 × 2048 Bayer RG 8
	Dynamic range	71 dB
	SNR	40 dB
	Gain	0 dB to 24 dB
	Exposure time	UltraShort exposure mode: 1 μs to 14 μsStandard exposure mode: 15 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Mono 8/10/12, Bayer RG 8/10//10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed,RGB 8, BGR 8
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB3.0
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
	Power consumption	Typ. 2.8 W@5 VDC (USB3.0 provides power supply)
Mechanical	Lens mount	C-Mount
	Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 80 g (0.2 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -10 °C to 50 °C (14 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with USB3 Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	USB3 Vision, GenICam
	Certification	CE, RoHS, KC
