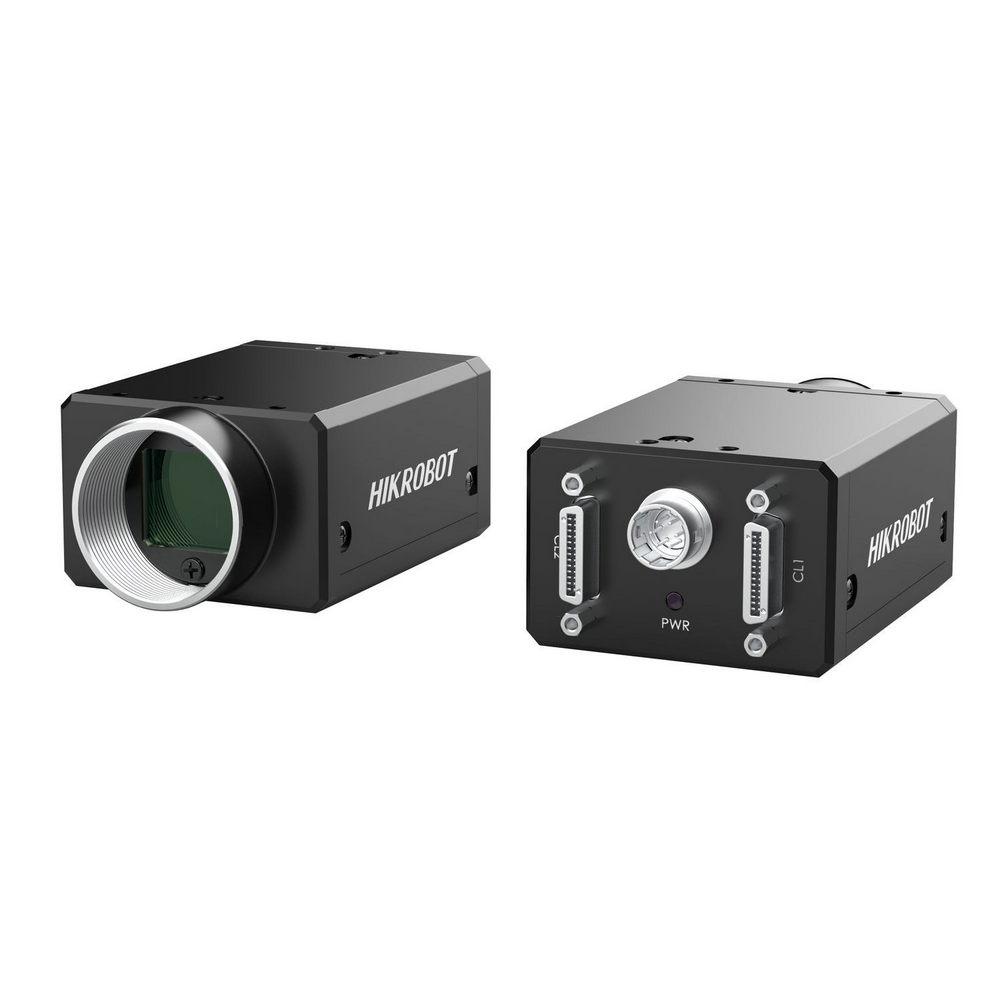

Name: HIKROBOT MV-CH040-A0CM :: Machine-Vision камера, Area Scan, CH Series, 180 fps @ 2040×2048 Mono 8, 5.5 μm, C-Mount, Camera Link, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа автоматично или ръчно регулиране на усилването, времето на експозиция, гама корекция, LUT и др.
Поддържа персонализиран ROI и хоризонтално и вертикално обръщане на изображението
Поддържа хардуерен тригер, софтуерен тригер, свободно движение и поддържа задействане чрез Camera Link frame grabber
Поддържа режими на конфигуриране Base, Medium, Full и 80-bit
Съвместимост с Camera Link V2.0 Protocol и GenlCam Standard

Model	Product Model	MV-CH040-A0CM
Model	Type	4MP Area Scan Camera, Camera Link
Performance	Sensor type	CMOS, global shutter
	Pixel size	5.5 μm × 5.5 μm
	Sensor size	1"
	Resolution	2048 × 2048
	Max. frame rate	180 fps @2040 × 2048 Mono 8
	Configuration mode	Base, Medium, Full, 80-bit
	Tap geometry	1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y
	Tap number	2 Taps, 4 Taps, 8 Taps, 10 Taps
	Pixel clock	40 MHz, 66 MHz, 80 MHz, 85 MHz
	Dynamic range	59.7 dB
	SNR	39.6 dB
	Gain	0 dB to 12 dB
	Exposure time	28 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2
	Decimation	Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	Camera Link
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).Camera Link interface provides I/O (CC1/CC2/CC3/CC4)
	Power supply	9 VDC to 24 VDC, supports PoCL
	Power consumption	Typ. 3.6 W@12 VDC
Mechanical	Lens mount	C-mount
	Dimension	44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3")
	Weight	Approx. 100 g (0.2 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -10 °C to 50 °C (14 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or frame grabber software meeting with GenlCam Protocol
	Operating system	32/64-bit Windows XP/7/10, 64-bit Windows 11
	Compatibility	Camera Link V2.0, GenlCam
	Certification	CE, RoHS, KC
