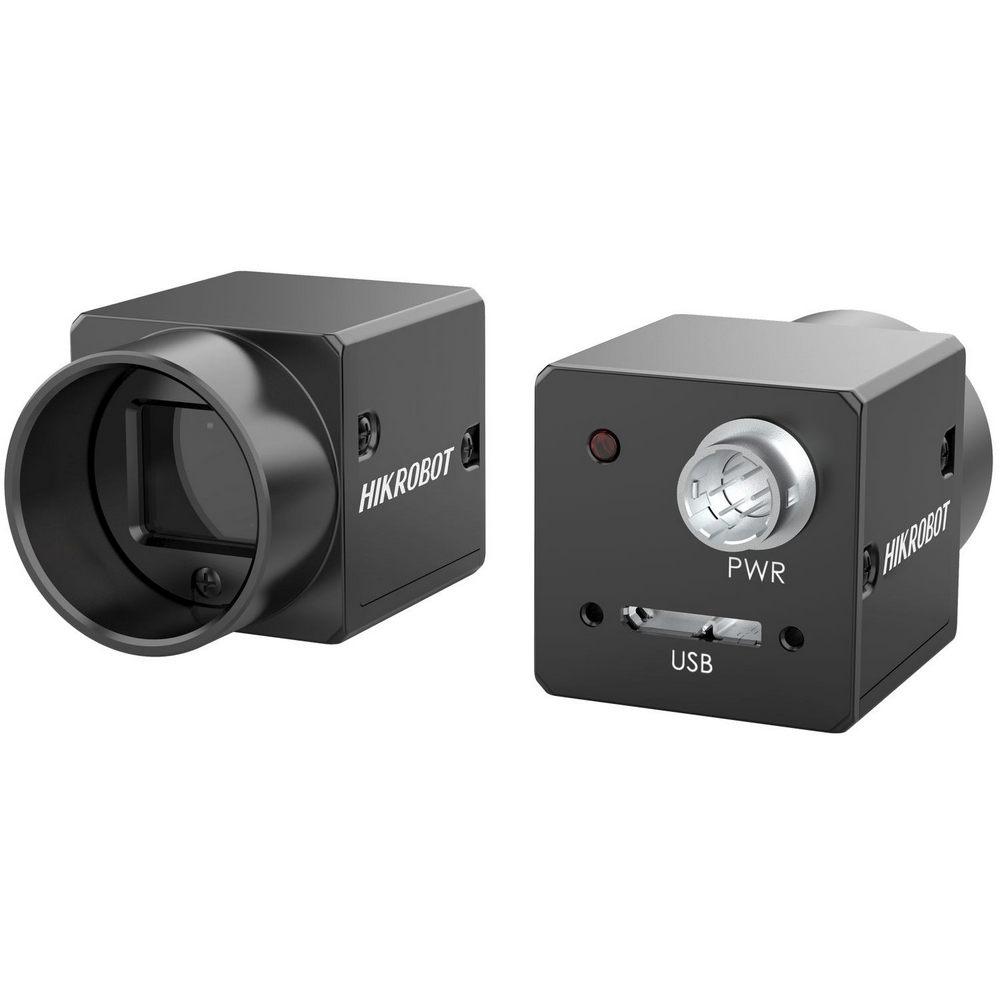

Name: HIKROBOT MV-CE120-10UM :: Machine-Vision камера, Area Scan, CE Series, 1.85 μm, 31.9 fps @ 4000×3036, C-Mount, монохромна, USB 3.0/2.0
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа автоматично и ръчно регулиране на усилване, контрол на експозицията, LUT, корекция на гама и др.
Поддържа хардуерно задействане, софтуерно задействане и режим на свободно движение
Отвори за винтове M2 за закрепване на кабел за USB 3.0 интерфейса
Съвместим с USB3 Vision Protocol, GenICam стандарт и софтуер на трети страни, базиран на тези протоколи и стандарти

Model	Product Model	MV-CE120-10UM
Model	Type	12MP Area Scan Camera, USB3,IMX226,Mono
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	IMX226
	Pixel size	1.85 μm × 1.85 μm
	Sensor size	1/1.7"
	Resolution	4000 × 3036
	Max. frame rate	31.9 fps @4000 × 3036
	Dynamic range	70.5 dB
	SNR	40.5 dB
	Gain	0 dB to 27 dB
	Exposure time	20 μs to 0.5 sec
	Exposure mode	Off/Once/Continuous exposure mode, supports Rolling and Global Reset
	Mono/color	Mono
	Pixel format	Mono 8/10/10p/12/12p
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
	Image buffer	128 MB
Electrical feature	Data interface	USB3.0
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
	Power supply	9 VDC to 24 VDC, USB3.0 power supply
	Power consumption	Typ. 3.18 W@5 VDC (USB3.0 provides power supply)
Mechanical	Lens mount	C-Mount
	Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 80 g (0.2 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	MVS or third-party software meeting with USB3 Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	USB3 Vision, GenICam
	Certification	CE, FCC, RoHS, KC
