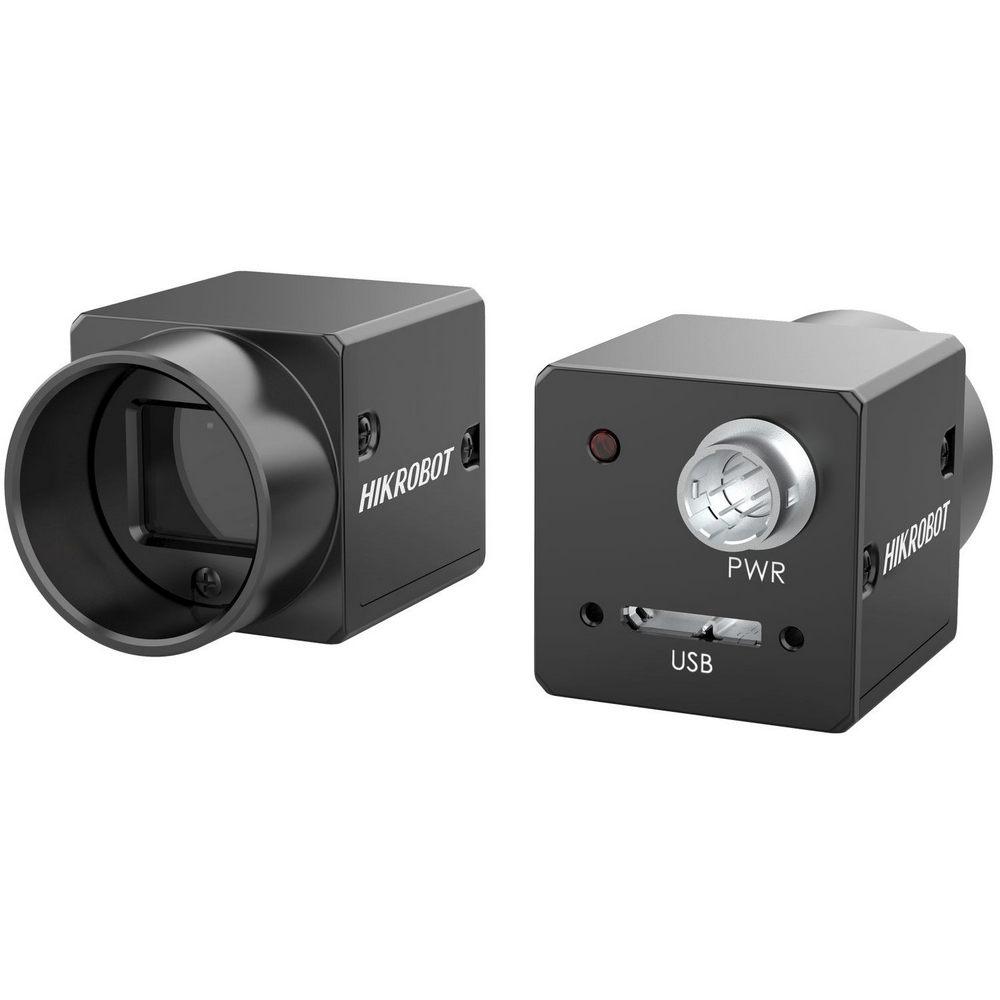

Name: HIKROBOT MV-CA020-10UC :: Machine-Vision камера, Area Scan, CA Series, 4.5 μm, 89.1 fps @ 1624×1240, C-Mount, цветна, USB 3.0/2.0
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа автоматично и ръчно регулиране на усилване, контрол на експозицията, LUT, корекция на гама и др.
Поддържа хардуерно задействане, софтуерно задействане и режим на свободно движение
Отвори за винтове M2 за закрепване на кабел за USB 3.0 интерфейса
Съвместим с USB3 Vision Protocol, GenICam стандарт и софтуер на трети страни, базиран на тези протоколи и стандарти

Model	Product Model	MV-CA020-10UC
Model	Type	2MP Area Scan Camera, USB3,IMX430,Color
Performance	Sensor type	CMOS, global shutter
	Sensor model	IMX430
	Pixel size	4.5 μm × 4.5 μm
	Sensor size	1/1.7"
	Resolution	1624 × 1240
	Max. frame rate	89.1 fps @1624 × 1240
	Dynamic range	75.4 dB
	SNR	40 dB
	Gain	0 dB to 24 dB
	Exposure time	1 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
	Binning	Not support
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB3.0
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
	Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
	Power consumption	Typ. 3.9 W@5 VDC(USB3.0 provides power supply)
Mechanical	Lens mount	C-Mount
	Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 80 g (0.2 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, without condensation
General	Client software	MVS or third-party software meeting with USB3 Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	USB3 Vision, GenICam
	Certification	CE, FCC, RoHS, KC
