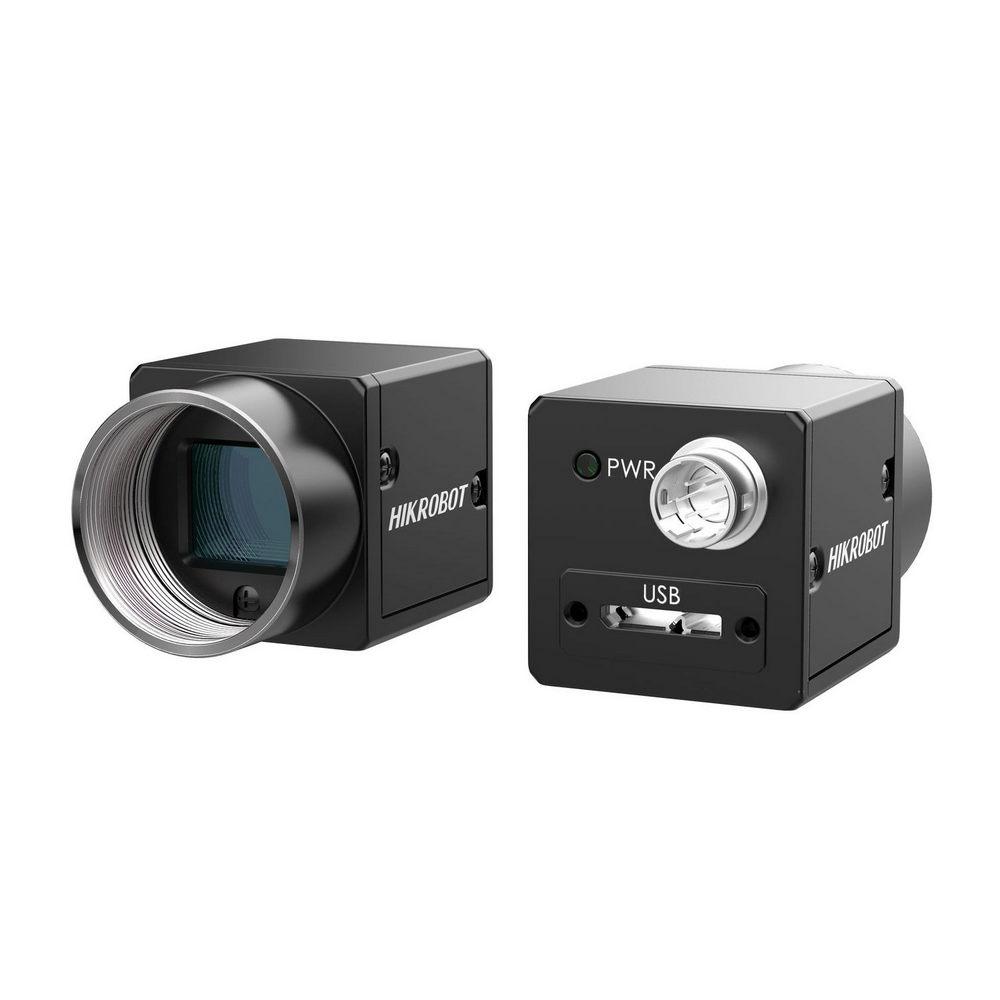

Name: HIKROBOT MV-CA013-A0UM :: Machine-Vision камера, Area Scan, CA Series, 201 fps @ 1280×1024, 4.8 μm, C-Mount, монохромна, USB 3.0/2.0
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа автоматично или ръчно регулиране на усилване, време на експозиция и ръчна настройка на LUT, корекция на гама и др.
Поддържа персонализиран ROI, хоризонтално и вертикално обръщане на изображението
Компактен дизайн за гъвкава инсталация
Съвместим с USB3 Vision Protocol, GenICam Standard и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CA013-A0UM
Model	Type	1.3MP Area Scan Camera, USB3, Mono
Performance	Sensor type	CMOS, global shutter
	Pixel size	4.8 μm × 4.8 μm
	Sensor size	1/2"
	Resolution	1280 × 1024
	Max. frame rate	201 fps @1280 × 1024
	Dynamic range	53 dB
	SNR	40 dB
	Gain	0 dB to 16 dB
	Exposure time	9 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB3.0
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
	Power supply	9 VDC to 24 VDC, supports USB3.0 power supply and PoE
	Power consumption	Typ. 2.4 W@5 VDC (USB3.0 provides power supply)
Mechanical	Lens mount	C-Mount
	Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 80 g (0.18 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with USB3 Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	USB3 Vision, GenlCam
	Certification	CE, FCC, RoHS, KC
