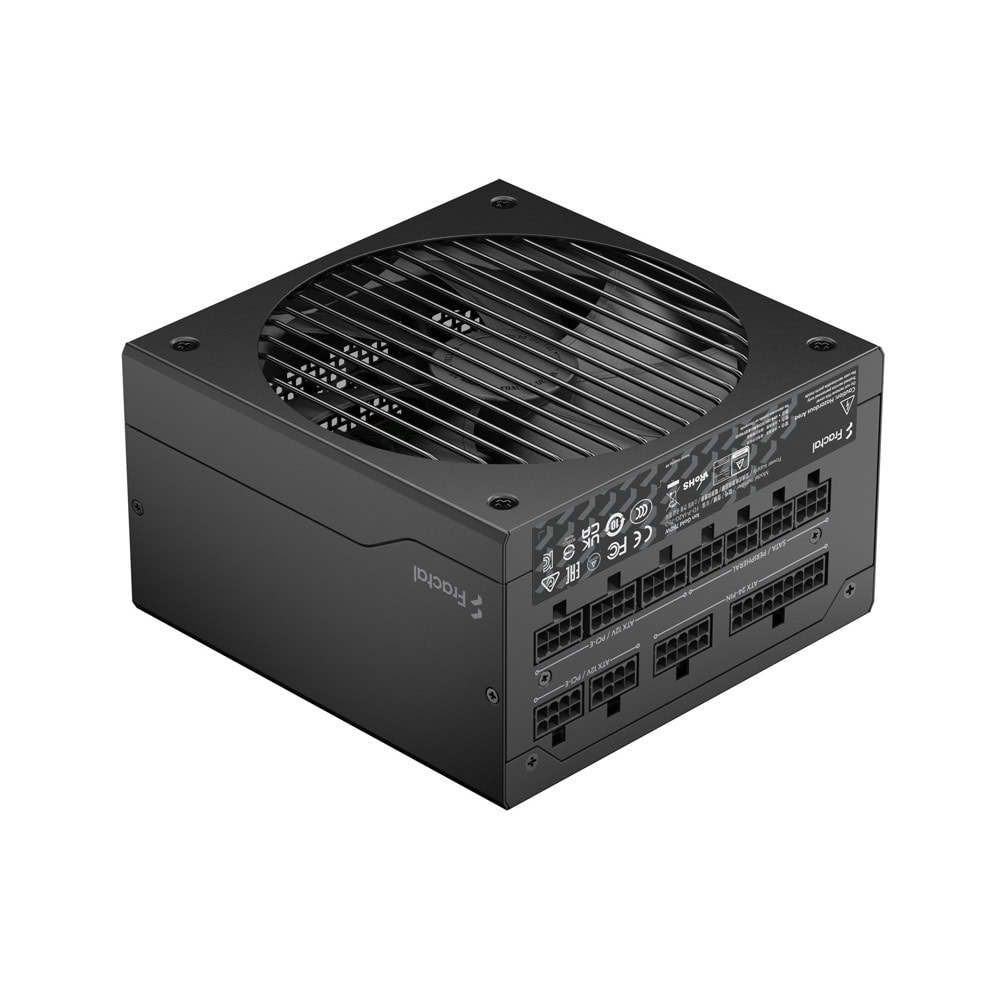

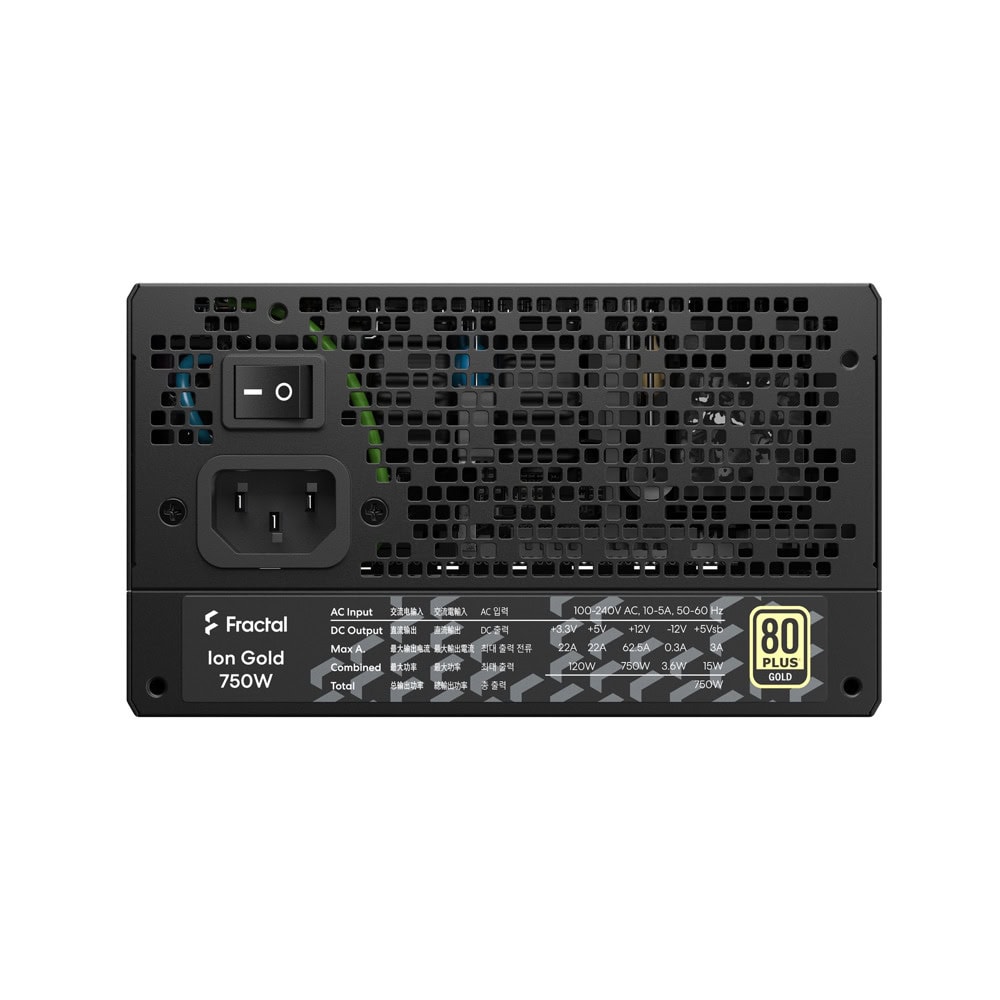

Захранване Fractal Design Ion 3 Black, 750W, Active PFC, 80 Plus Gold, 140mm вентилатор

Fractal Design Ion 3

Future-ready Connect next-generation components with ATX12V 3.1 compatibility and enjoy stable performance with graphics card power excursion support.
	Native Gen 5 support Power modern graphics cards with 16-pin PCIe Gen 5 12V-2×6 support featuring shortened sense pins for a reliable, secure connection.
Certified efficiency 80 PLUS Gold–certified for efficient performance with reduced energy use and heat output through optimized power delivery.
	Quiet operation Featuring variable fan speeds for adaptive cooling and the option to activate Zero RPM Mode for near-silent operation under lighter loads.

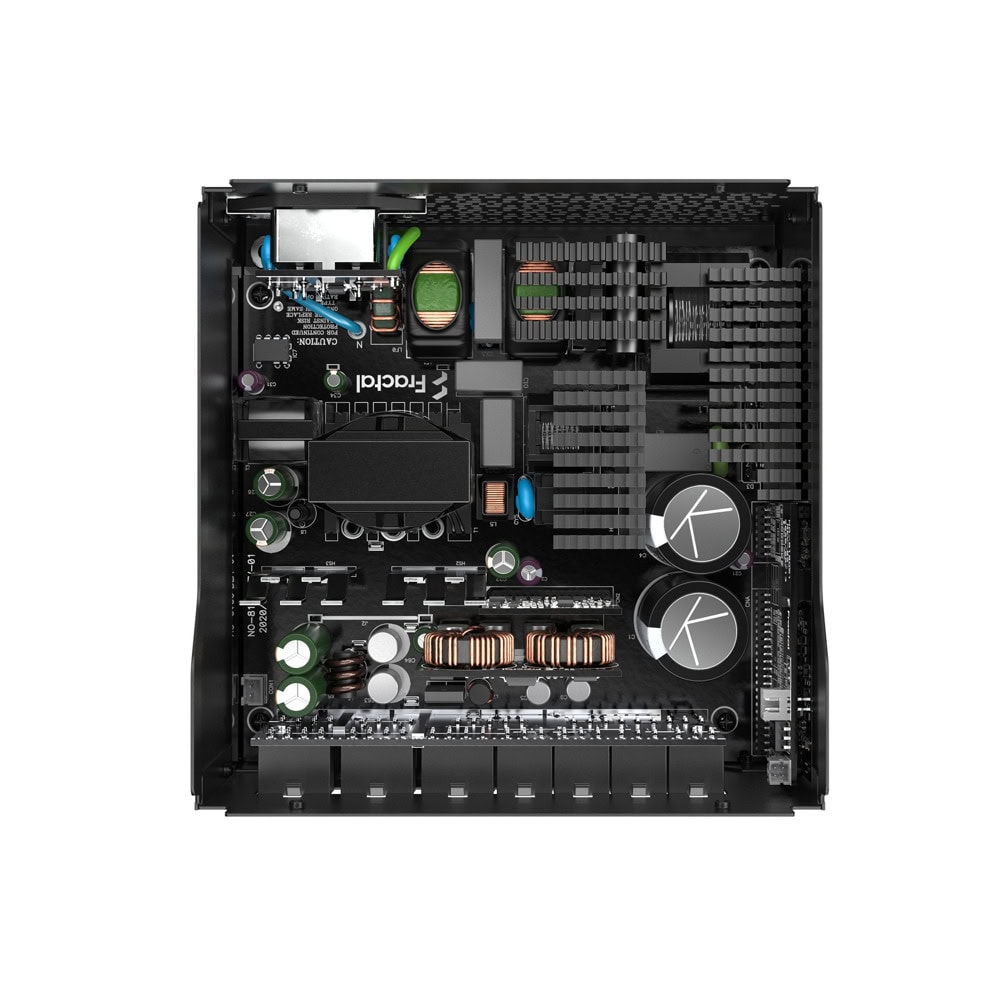

Designed to last Built with high-quality, reliable components including Japanese 105°C capacitors.

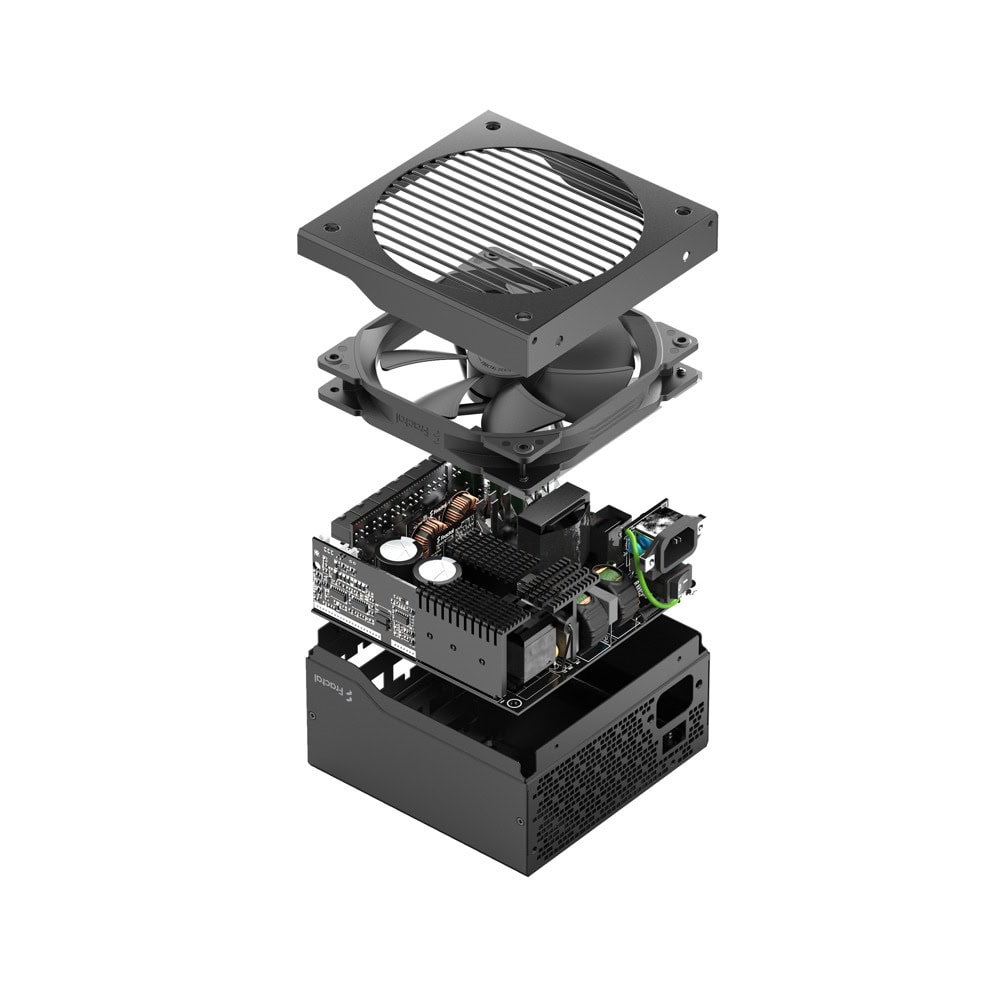

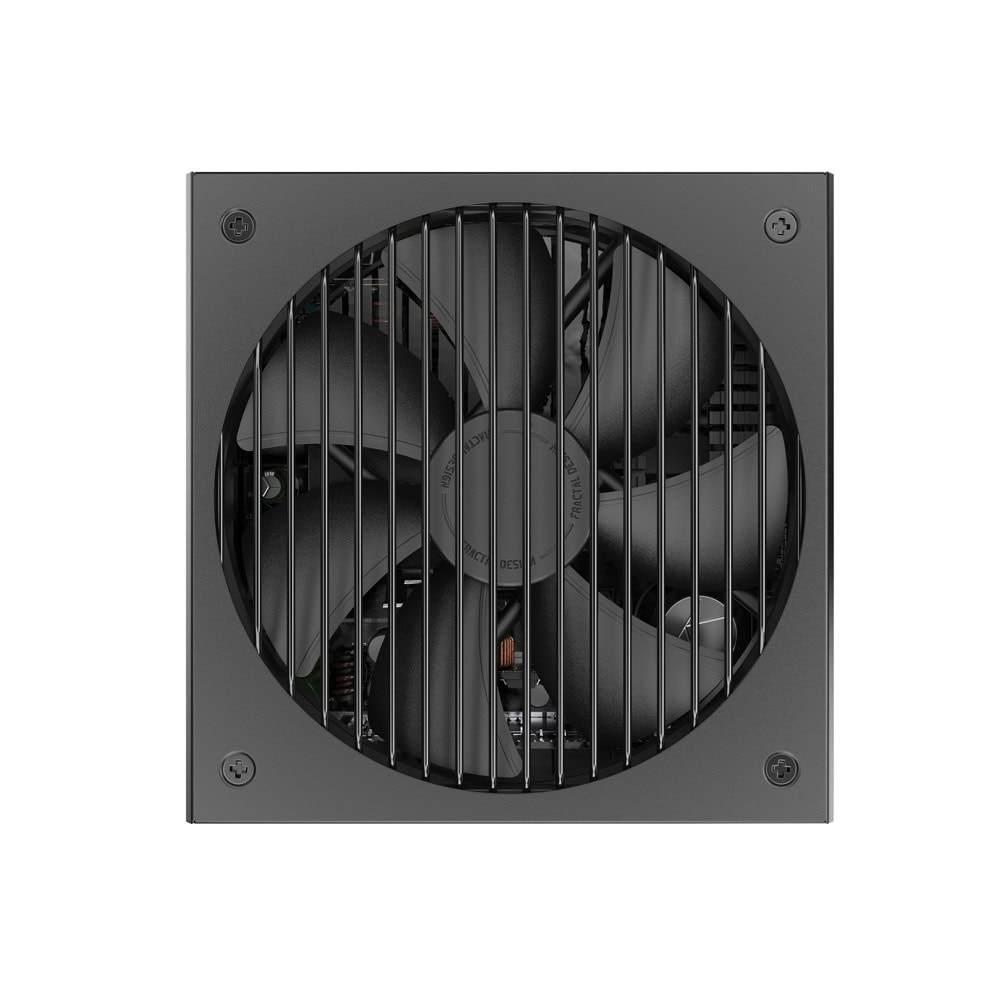

Momentum cooling

Featuring a powerful Momentum 14 fan with a fluid dynamic bearing and LCP blades to ensure lower noise, cooler operation, and a longer lifespan.

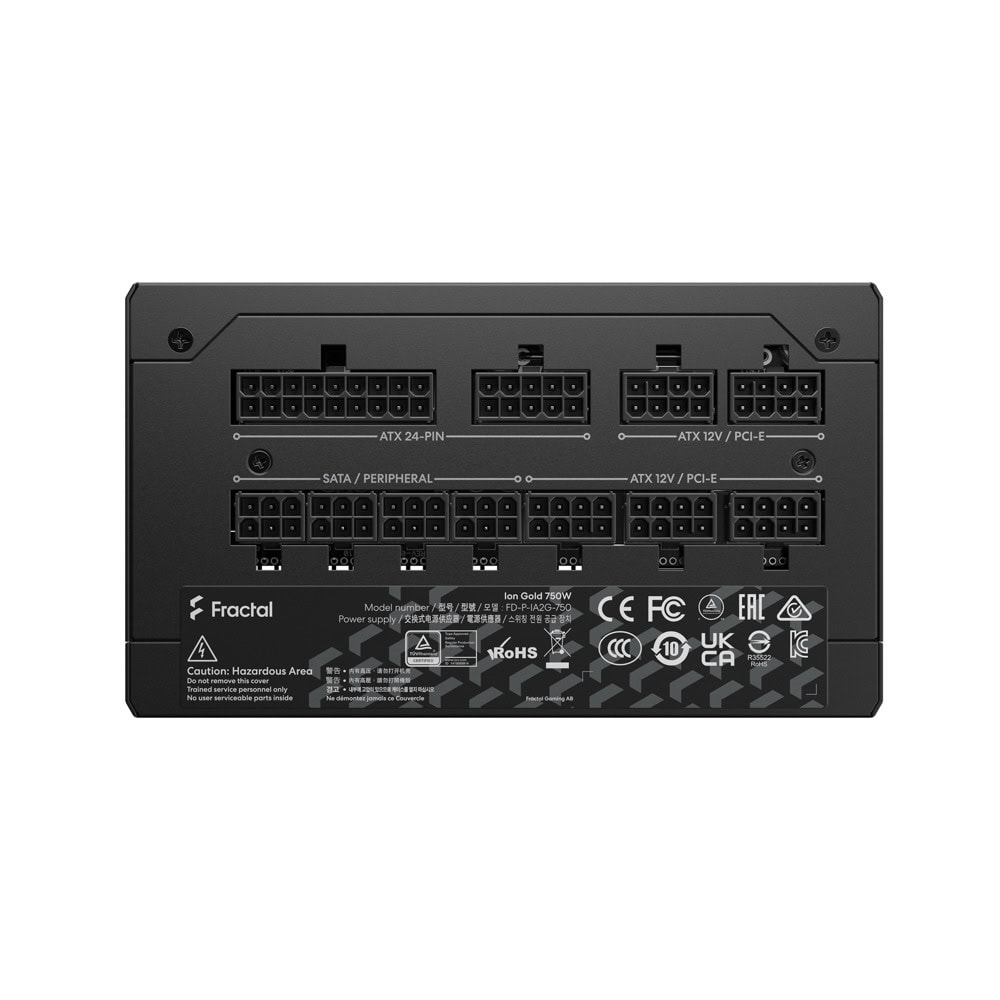

Fully modular

Achieve a clean, uncluttered build with a fully modular design and UltraFlex cables for smoother cable routing.

Specifications

Wattage
750W
PSU specification compliance
PSU specification compliance ATX12V 3.1
Efficiency Certification
80PLUS Gold
Modular cables
Fully modular
Fan type
Momentum 14 series fan, with Fluid Dynamic Bearing
Semi-passive operation
Yes, user selectable (Zero RPM mode)
DC cable type
UltraFlex, flat cables
Electrolytic capacitors
105°C Japanese capacitors
Number of 12V rails
Single 12V rail
Protection features
Over Power Protection (OPP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Current Protection (OCP), Over Temperature Protection (OTP)
Life expectancy (MTBF)
100 000 h (25°C ambient temperature)
Modern sleep state compatibility
C6 and C7 compatible
Power factor correction (PFC)
Yes, active
Input voltage
100-240 V
Standby efficiency
≥ 45% ErP Lot 6 compliant
Maximum operating temperature
40°C (full load), 50°C (80% load)
Approvals & certifications
CE, UKCA, BSMI, CCC, FCC, TUV, cULus, RCM, ICES, CB, KC

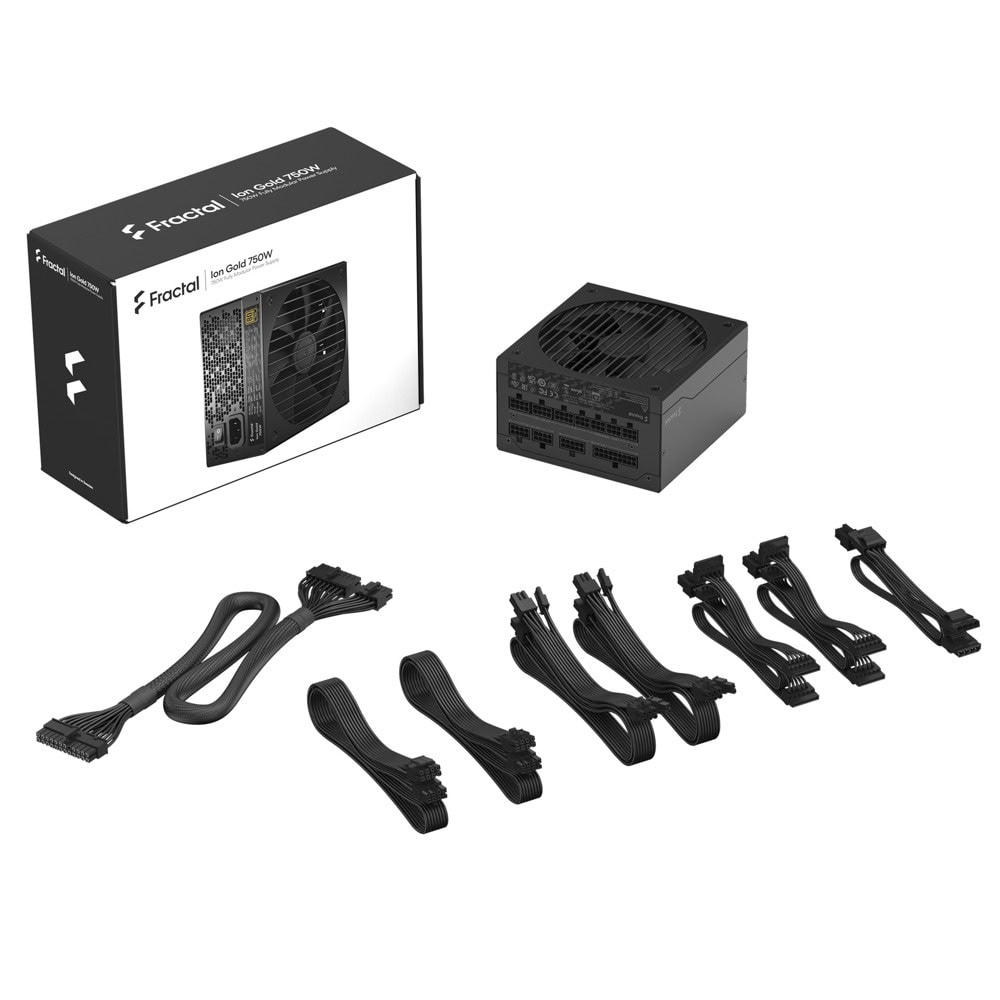

Included modular cables

ATX 24 pin, 600 mm
1
ATX 12V 4+4P, 700 mm
2
PCI-E 6+2 pin, 650 mm
2 (+1 additional cable included for 3 x PCI-E 6+2 pin with 1 x ATX 12V 4+4P configuration)
PCI-E Gen5 12V-2x6, 700 mm
1
4x SATA, 400+150+150+150 mm
1
2x SATA 650+150 mm
1
Total number of SATA connectors
6
2x Peripheral (Molex) 650+150 mm
1
Total number of Molex connectors
2
