Name: CPU i5-7500, 3.4/6M/s1151, Tray w/o fan
Brand: INTEL
Availability: OutOfStock

Описание

General information

Type

CPU / Microprocessor

Market segment

Desktop

Family

Intel Core i5

Model number

i5-7500

CPU part numbers

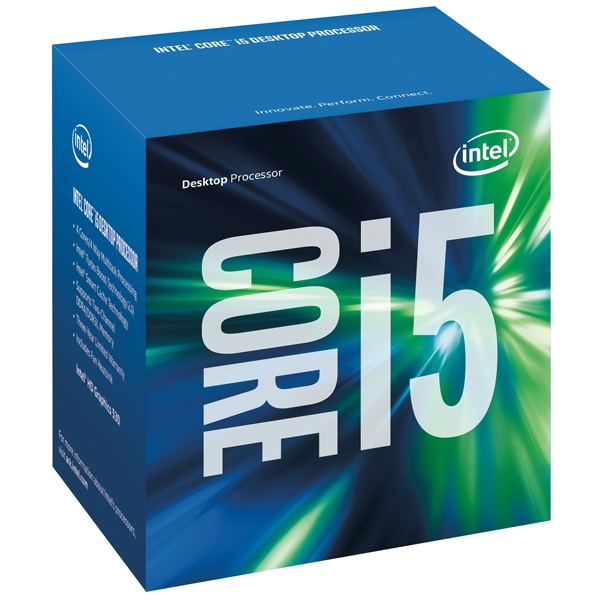

BX80677I57500 is a boxed processor (English version)

Frequency

3400 MHz

Turbo frequency

3800 MHz

Bus speed

8 GT/s DMI

Clock multiplier

Package

1151-land Flip-Chip Land Grid Array

Socket

Socket 1151 / H4 / LGA1151

Size

1.48" x 1.48" / 3.75cm x 3.75cm

Introduction date

January 3, 2017

S-spec numbers

Part number	ES/QS processors	Production processors
	QKHC	SR335
BX80677I57500		+
BXC80677I57500		+
CM8067702868012		+
Unknown	+

Architecture / Microarchitecture

Microarchitecture

Kaby Lake

Processor core

Kaby Lake-S

Core stepping

B0 (SR335)

Manufacturing process

0.014 micron

Data width

64 bit

The number of CPU cores

The number of threads

Floating Point Unit

Integrated

Level 1 cache size

4 x 32 KB instruction caches
4 x 32 KB data caches

Level 2 cache size

4 x 256 KB caches

Level 3 cache size

6 MB shared cache

Physical memory

64 GB

Multiprocessing

Uniprocessor

Features

MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
AVX2 / Advanced Vector Extensions 2.0
BMI / BMI1 + BMI2 / Bit Manipulation instructions
F16C / 16-bit Floating-Point conversion instructions
FMA3 / 3-operand Fused Multiply-Add instructions
EM64T / Extended Memory 64 technology / Intel 64
NX / XD / Execute disable bit
VT-x / Virtualization technology
TBT 2.0 / Turbo Boost technology 2.0
TXT / Trusted Execution technology
TSX / Transactional Synchronization Extensions
MPX / Memory Protection Extensions
SGX / Software Guard Extensions

Low power features

Core C1/C1E, C3, C6, C7 and C8 states
Package C2, C3, C6, C7 and C8 states
Enhanced SpeedStep technology

Integrated peripherals / components

Display controller

3 displays
DisplayPort 1.2 / Embedded DisplayPort 1.4 / HDMI 1.4

Integrated graphics

GPU Type: Intel HD 630
Microarchitecture: Gen 9 LP
Base frequency (MHz): 350
Maximum frequency (MHz): 1100

Memory controller

The number of controllers: 1
Memory channels: 2
Supported memory: DDR3L-1333, DDR3L-1600, DDR4-2133, DDR4-2400
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 38.4

Other peripherals

Direct Media Interface 3.0 (4 lanes)
PCI Express 3.0 interface (16 lanes)

Electrical / Thermal parameters

Maximum operating temperature

100°C

Thermal Design Power

65 Watt

Notes on Intel Core i5-7500

The processor has the following security, data protection and/or software features: Intel Secure Key, vPro technology, Identity Protection technology, OS Guard and Boot Guard.
The CPU is compatible with DirectX 12 and OpenGL 4.4 APIs.
The graphics unit has the following software features enabled: Intel Quick Sync Video, Clear Video technology, Clear Video HD technology and InTru 3D technology.
