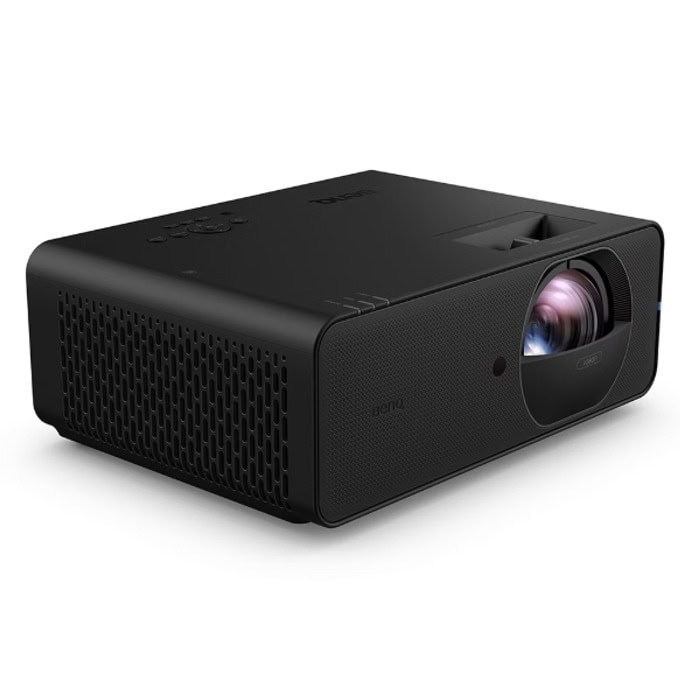

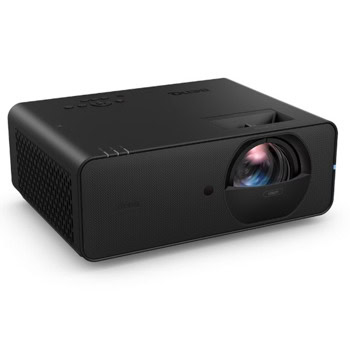

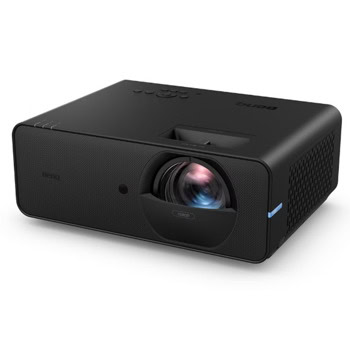

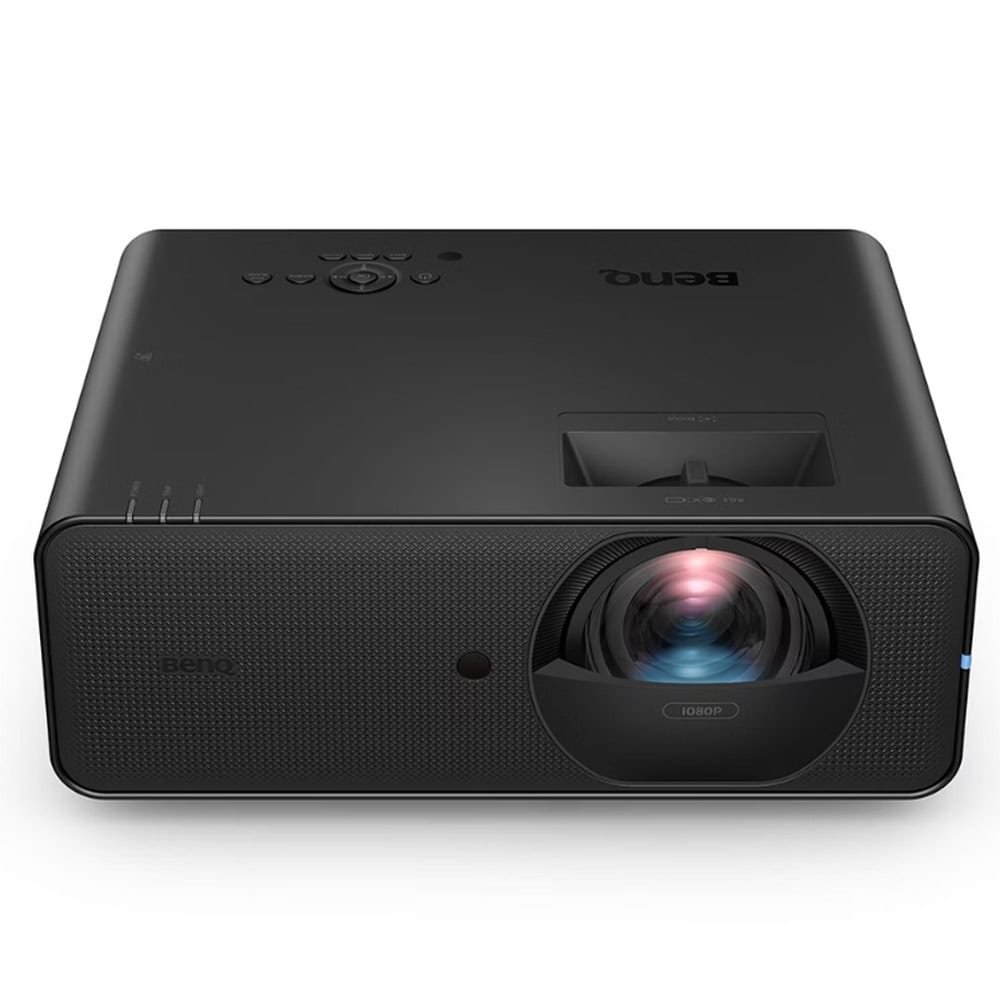

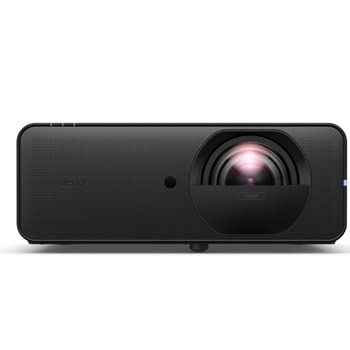

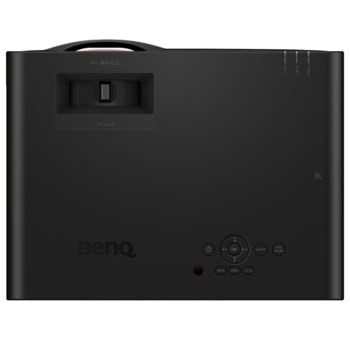

Проектор BenQ LH860ST, DLP, Full HD (1920x1080), 3 000 000:1, 5000lm, DisplayPort, HDMI, USB, LAN, RS232

LH860ST 5000 ANSI lumen 1080P Laser Simulation Projector

• 0.5 short throw ratio for large image from short distance.

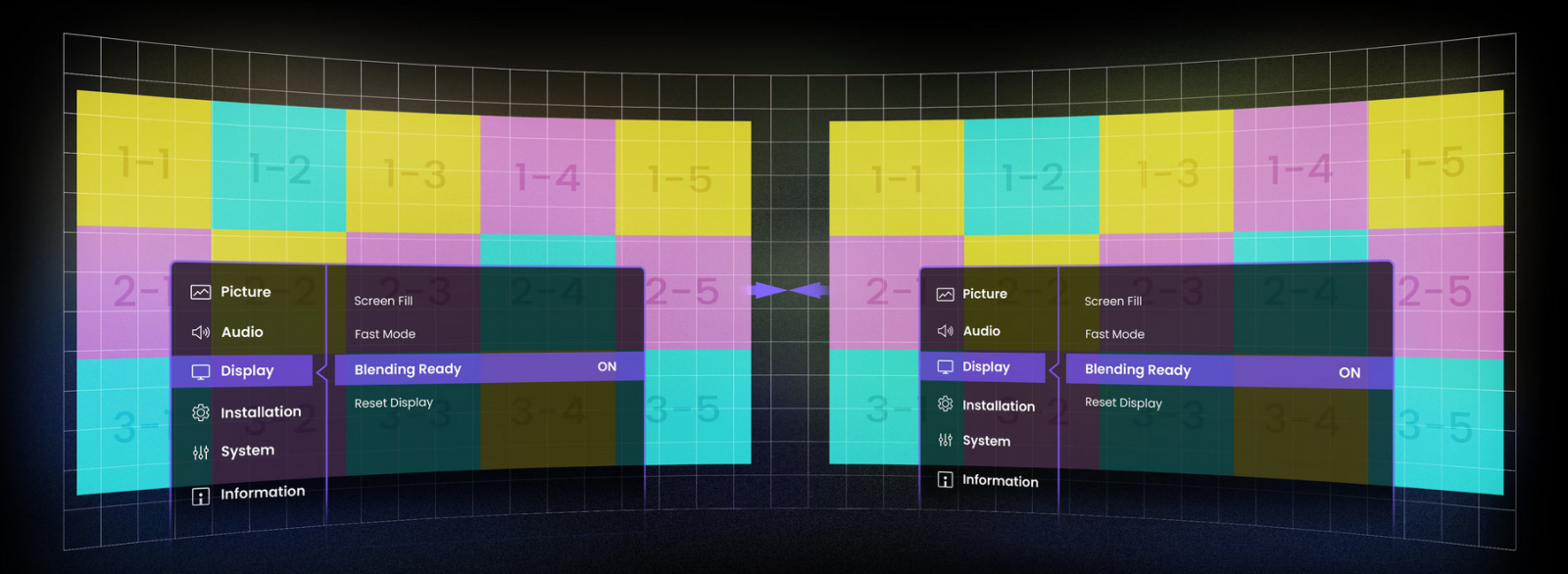

• One-click preset configurations to prepare multi-projectors for blending.
• IP6X sealed engine with optional filter for optimal dust resistance and protection.
• Supports firmware updates via LAN to keep all devices up to date without physical access.
• Laser high visual 5000 ANSI lumen brightness

Simulation-grade visual system, factory-tuned for accuracy

*Preset configuration. Automatic edge blending software not included. Additional software or hardware is required to complete edge blending.

Brilliant visuals with accurate colour and stable performance

The LH860ST delivers brilliant image clarity and stable performance across every detail—from vivid Rec.709 colour and high contrast to 5000-lumen brightness and 20,000-hour laser life.

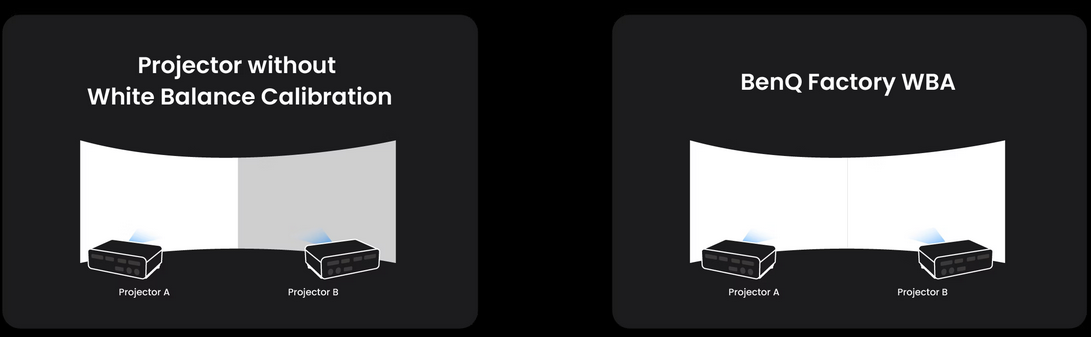

BenQ WBA for Seamless Multi-Projector White Calibration

BenQ’s factory white balance adjustment (WBA) reduce variables between images projected from different projectors, significantly reducing manual calibration effort. It can save up to a full day of setup time in large-scale installations while ensuring seamless multi-projector alignment for edge blending.

Display

Brightness (ANSI lumens)

5000

Resolution

1080P (1920x1080)

Native Aspect Ratio

16:9

Contrast Ratio (FOFO)

3,000,000:1

Display Color

30-bit (1.07 billion colors)

Light Source

Laser

Light Source Life

a. Normal 20000 hrs, b. ECO 30000 hrs

Optical

Throw Ratio

T/R 0.5

Zoom Ratio

Fixed

Lens

F 2.0, f=5.28 mm

Projection Offset (Full-Height)

105%

Keystone Adjustment

1D, (Auto) Vertical ± 30 degrees


Rec. 709 Coverage

93%

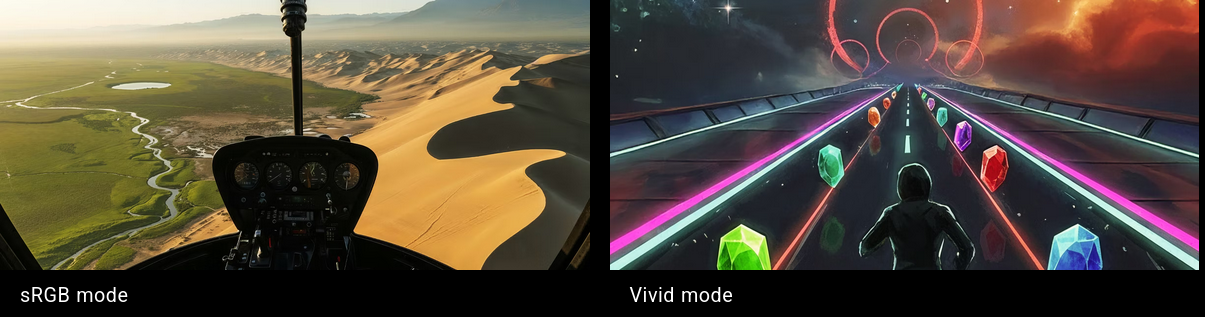

Picture Modes

Simulation, 3D, Bright, HDR10, HLG, Presentation, sRGB, User 1, User 2, Vivid

Compatibility

Input Lag

6 ms (1080P 240Hz), 8.4 ms (1080P 120Hz), 16.7 ms (1080P 60Hz)

Resolution Support

VGA(640 x 480) to Full HD(1920 x 1080)

Horizontal Frequency

15K~135KHz

Vertical Scan Rate

23~240Hz

I/O Interface

HDMI in

(x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)

Display Port

(x1)

LAN (RJ45)

(x1)

3D Sync out

(x1), VESA

USB Type A

(x2), USB Type A-1 (2.0/Power Supply1.5A/Service), USB Type A-2 (2.0/Power Supply1.5A)

RS232 in (DB-9pin)

(x1)

DC 12V Trigger (3.5mm Jack)

(x1)

Audio

Speaker

(x1), 10W

Audio out (3.5mm Mini Jack)

(x1)

Environment

Operating Temperature

0~40℃

Power Supply

AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V)

281 W @100VAC

Stand-by Power Consumption

<0.5W

Network Stand-by Power Consumption

<0.5W

Acoustic Noise (Typ./Eco.)(dB)

36 / 31

Accessories

Remote Control w/ Battery

RCA011

Power Cord (by region)

x1 (1.8M)

Installation Guide

1 (8L)

Warranty Card (by region)

Yes

Anti-dust Filter

All SKU, (Optional)

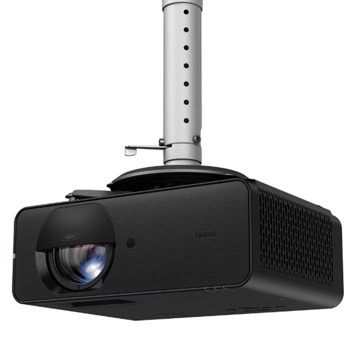

Universal Ceiling Mount

CM00G3, (Optional)

Dimension & Weight

Dimensions (WxHxD) (mm)

343.8 x 136.0 x 265.5

Net Weight (kg)

5.2 Kg+/- 100g

Dimensions (WxHXD) (inch)

13.54 × 5.35 × 10.45

Net Weight (lb)

11.46 ± 0.22

Projection System

Projection System

DLP
